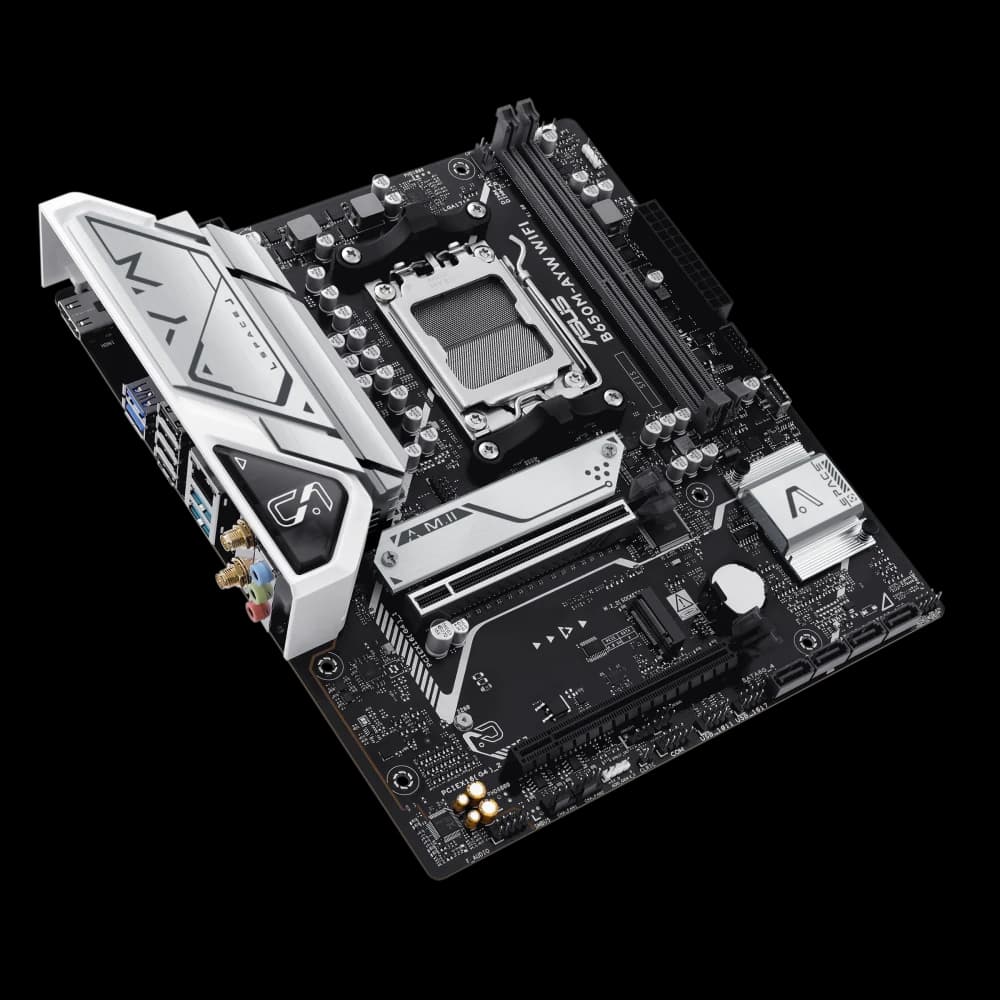

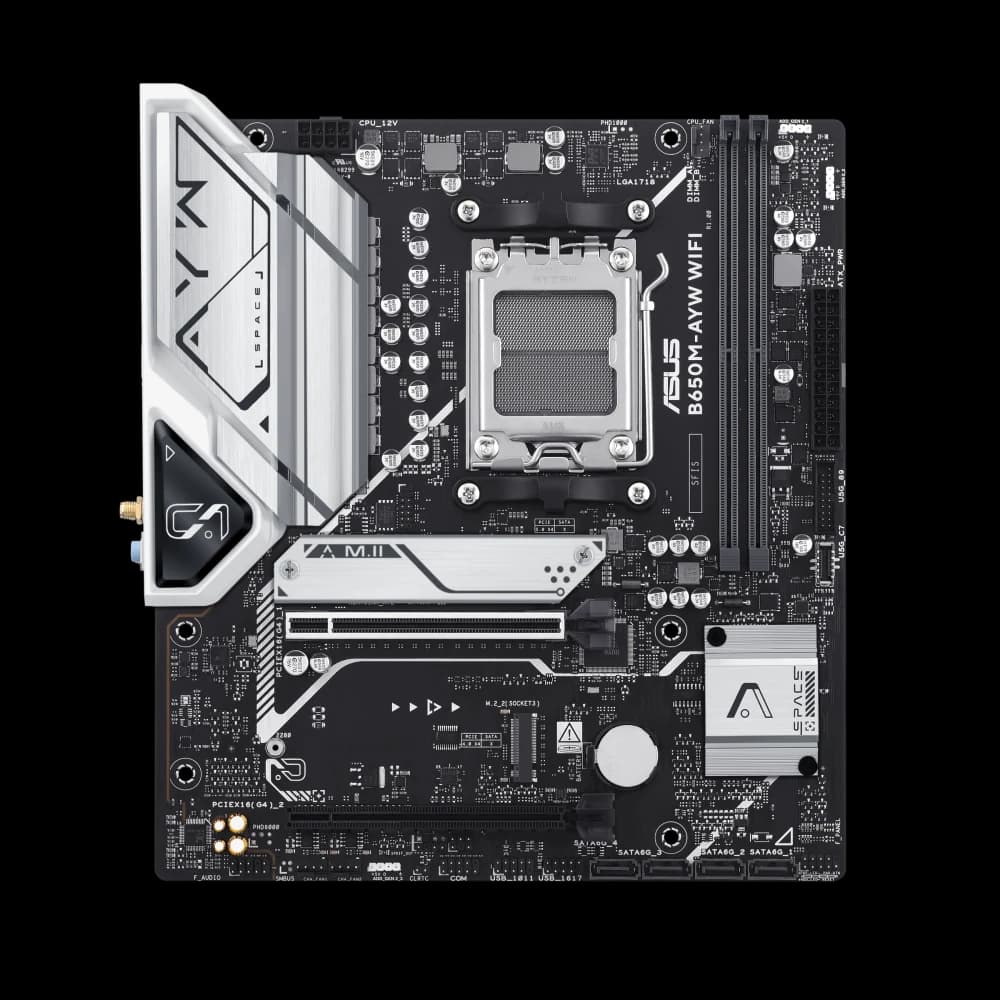

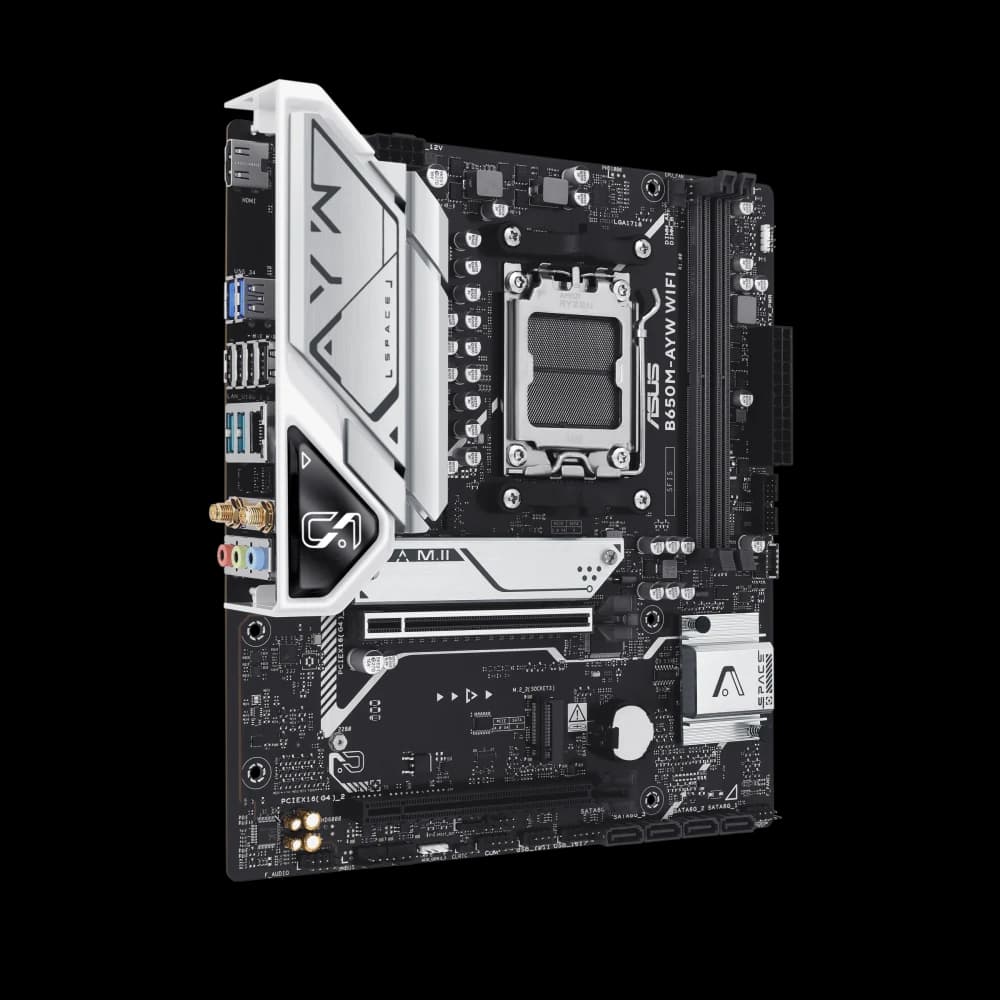

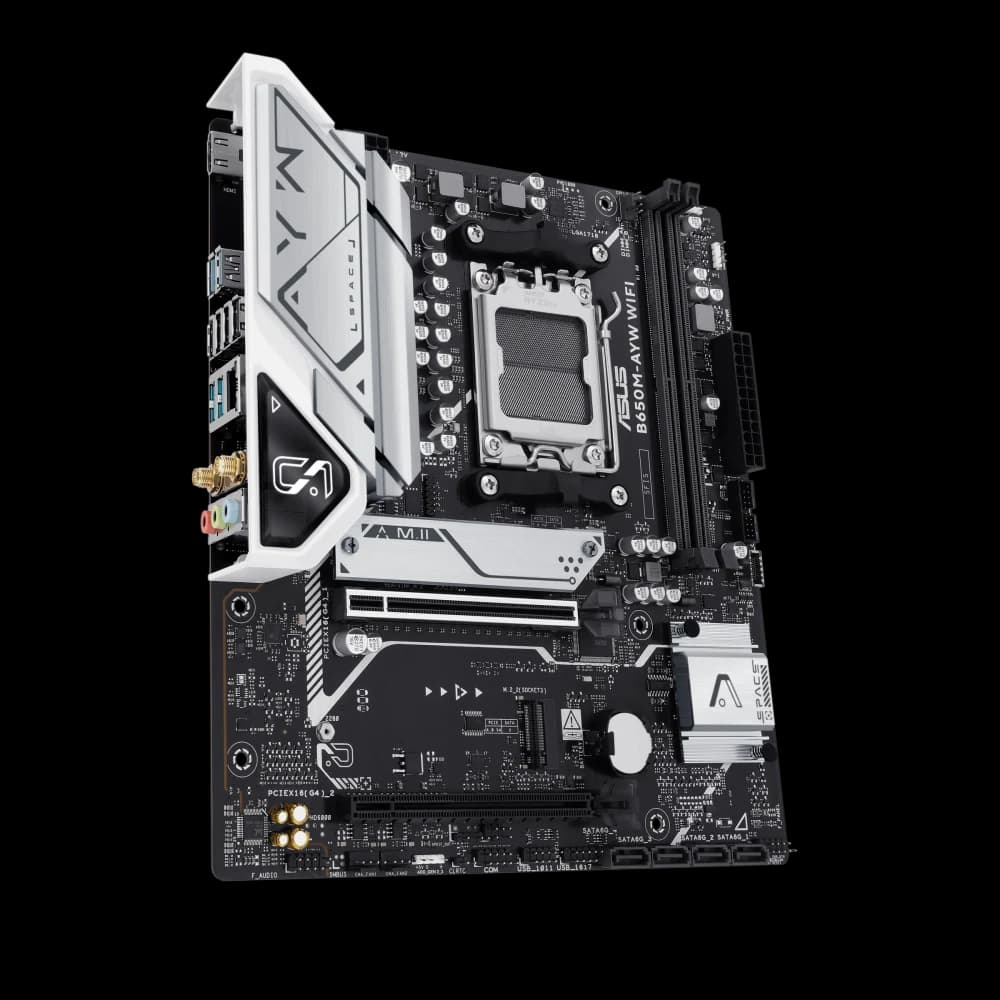

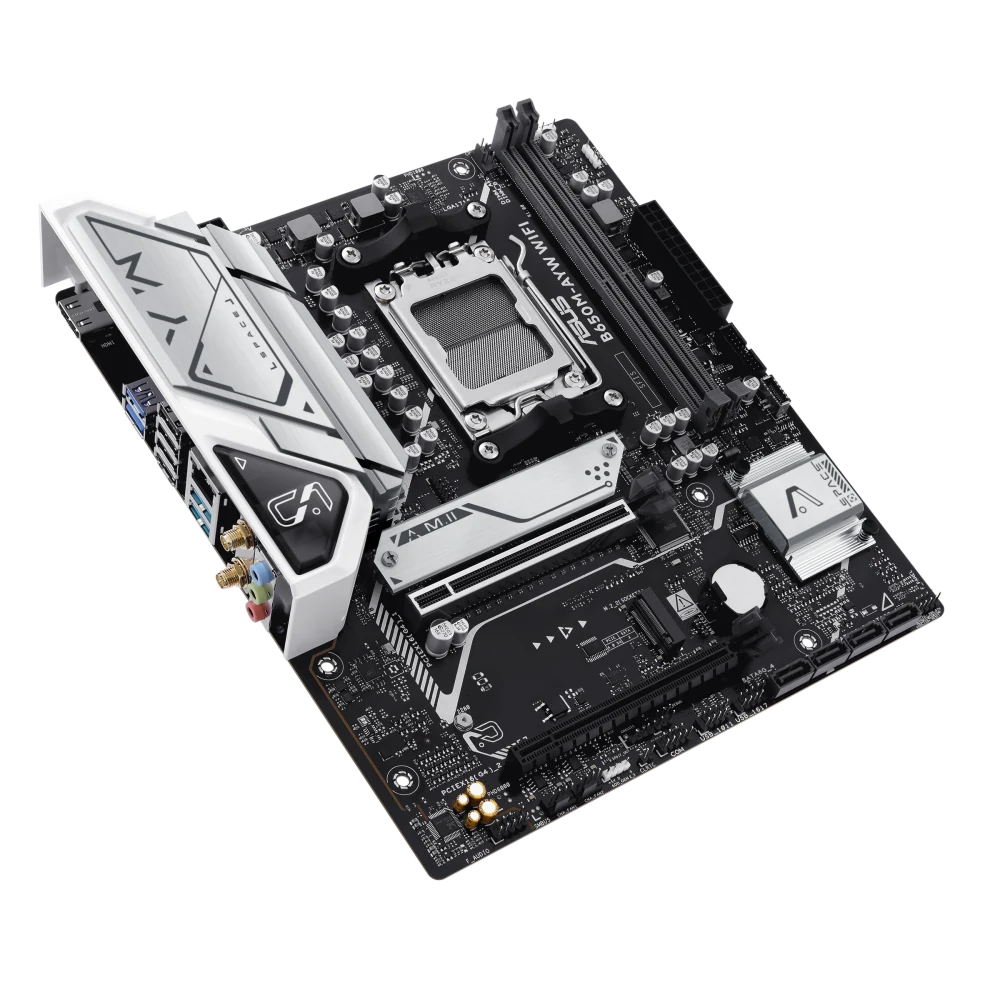

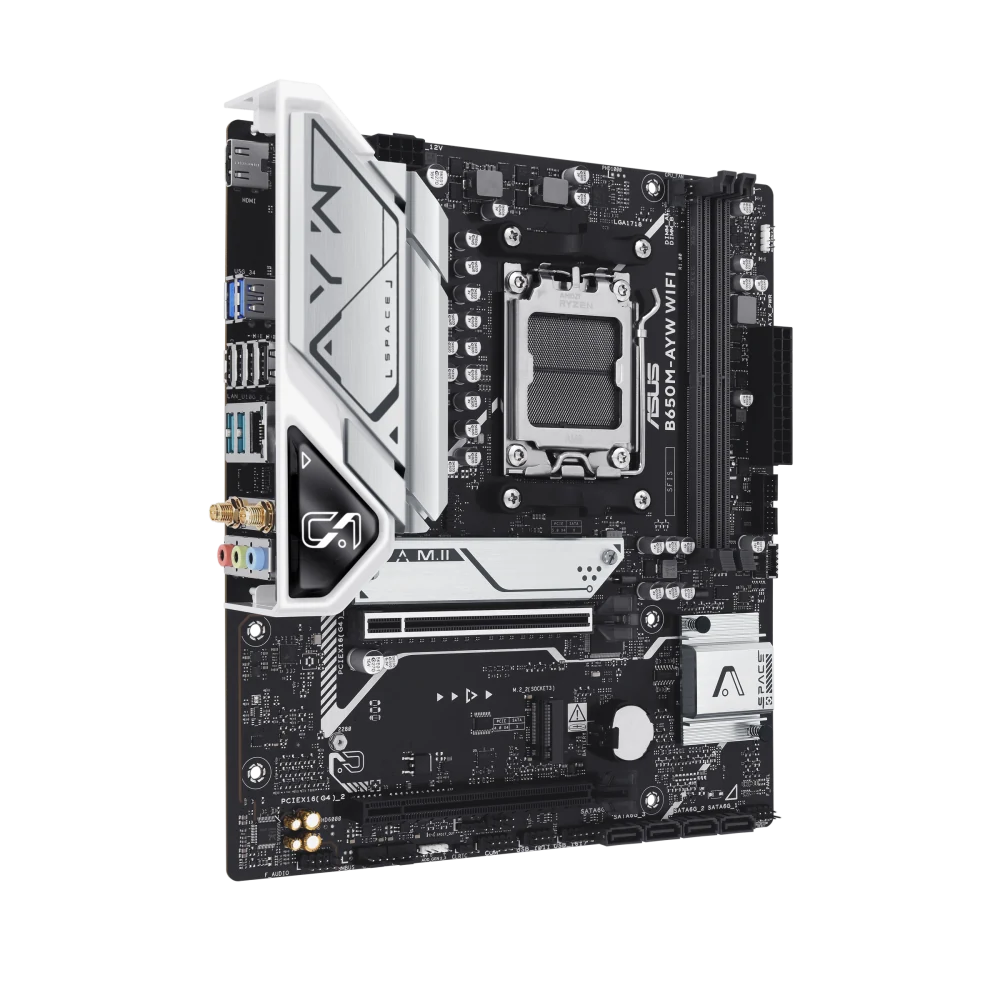

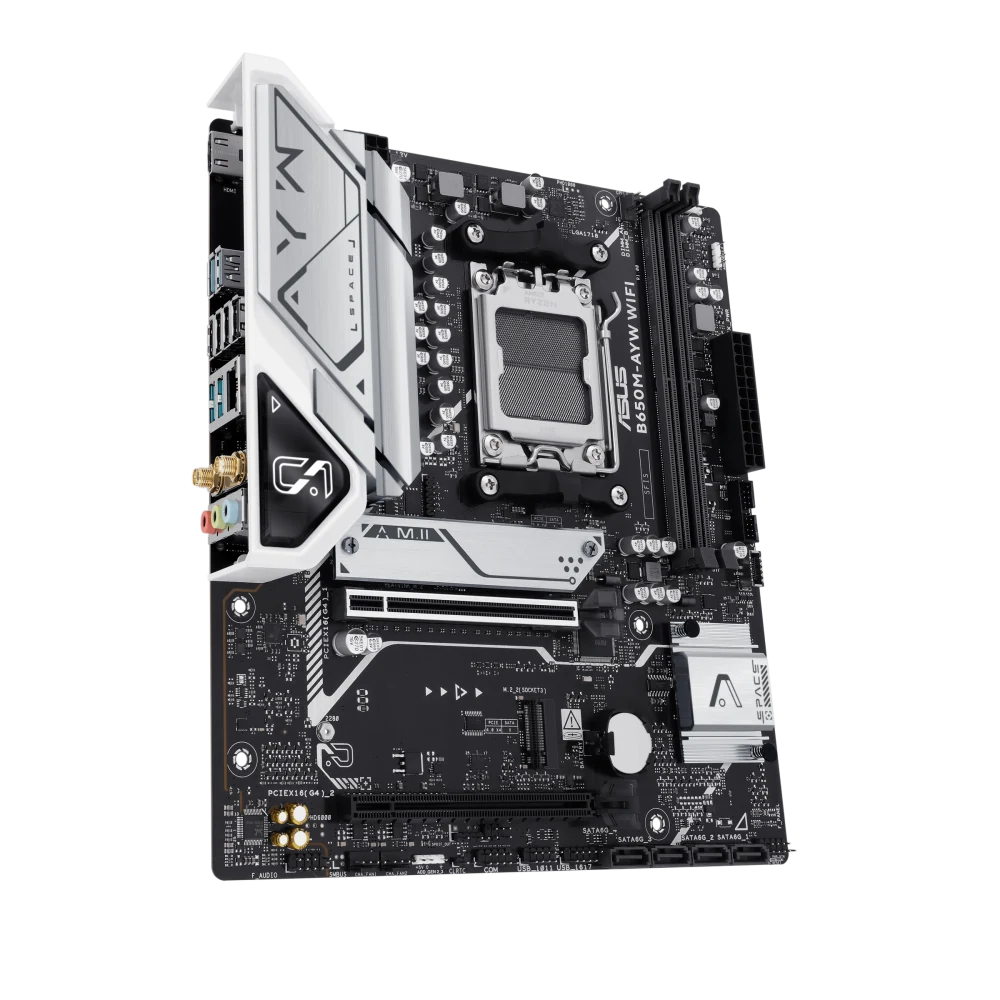

ASUS B650M-AYW WiFi

Name: ASUS B650M-AYW WiFi
Brand: ASUS
SKU: ASUS-asus-b650m-ayw-wifi
Price: 52990 PKR
Availability: InStock

Rs 52,990

In stock

1 year local warranty

SKU: ASUS-asus-b650m-ayw-wifi
Category: Motherboards

Description

The ASUS B650M-AYW WiFi is a clean, value-focused microATX AM5 board that keeps the essentials builders care about, including a PCIe 5.0 M.2 slot, DDR5 support and Wi-Fi 6, making it an easy foundation for a compact Ryzen gaming or productivity PC.

Key Features

AMD B650 chipset on Socket AM5 for Ryzen 9000, 8000 and 7000 Series (up to 170W)
Two DDR5 DIMM slots supporting up to 96GB at 8000+MT/s (OC) with AMD EXPO
PCIe 5.0 x4 M.2 slot plus a second PCIe 4.0 x4 M.2 for fast NVMe storage
Four SATA 6Gb/s ports for additional drives
Wi-Fi 6 and Bluetooth v5.3 with Realtek 2.5Gb Ethernet
USB 10Gbps Type-A connectivity and HDMI 2.1 4K@60Hz output
Comprehensive cooling with M.2 and VRM heatsinks for steady performance

A tidy and affordable AM5 platform for mainstream builders who want modern storage and wireless without overspending.

Specifications

Spec	Value
CPU Socket	AMD Socket AM5 (Ryzen 9000 / 8000 / 7000 Series, up to 170W)
Chipset	AMD B650
Form Factor	microATX (9.6" x 8.7")
Memory	2 x DIMM DDR5, up to 96GB, 8000+MT/s (OC), AMD EXPO
Expansion	1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, chipset)
Storage	2 x M.2 2280 (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4), 4 x SATA 6Gb/s
LAN	1 x Realtek 2.5Gb Ethernet
Wireless	Wi-Fi 6 (802.11a/b/g/n/ac/ax), Bluetooth v5.3
Rear USB	2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A
Video Output	1 x HDMI 2.1 (4K@60Hz)
Audio	Realtek 7.1 Surround Sound HD Codec, 24-bit/192kHz
