ASUS PRIME B760M-A

Name: ASUS PRIME B760M-A
Brand: ASUS
SKU: ASUS-PRIME-B760M-A
Price: 35200 PKR
Availability: InStock

Rs 35,200

In stock

1 year local warranty

SKU: ASUS-PRIME-B760M-A
Category: Motherboards

Description

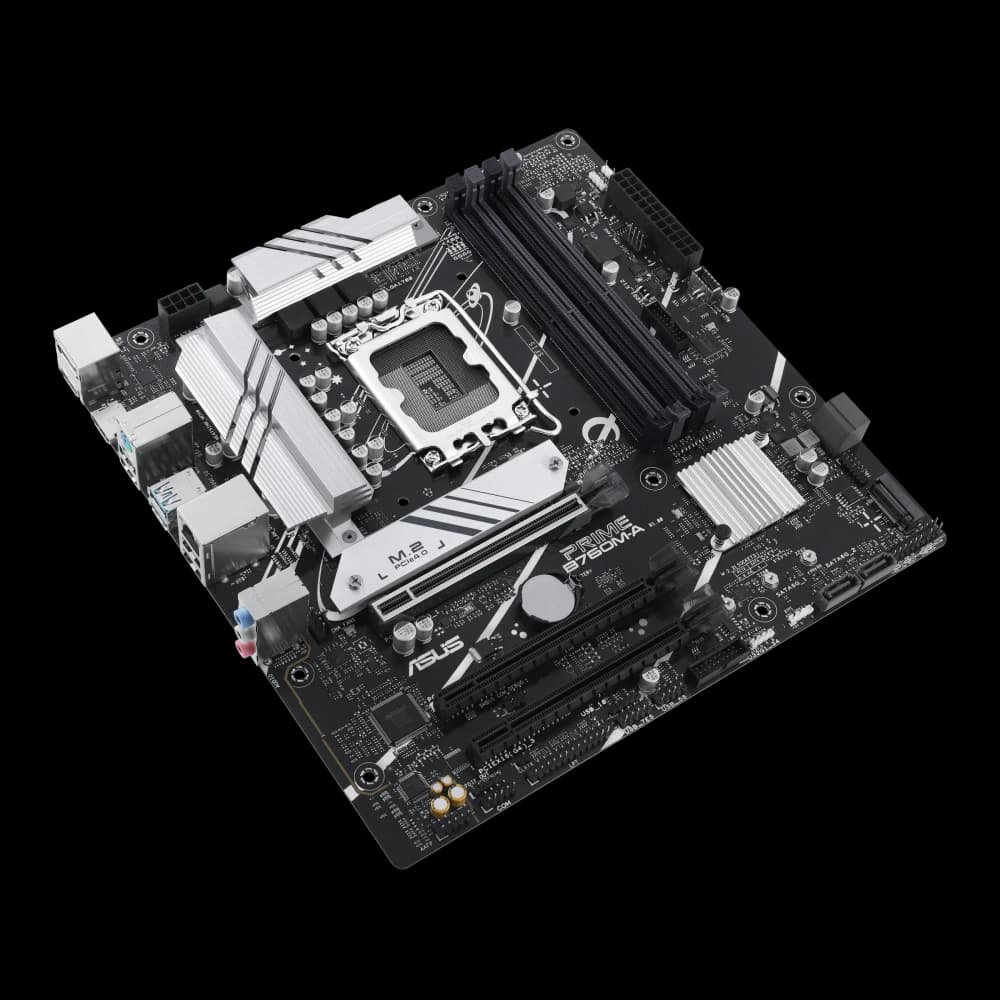

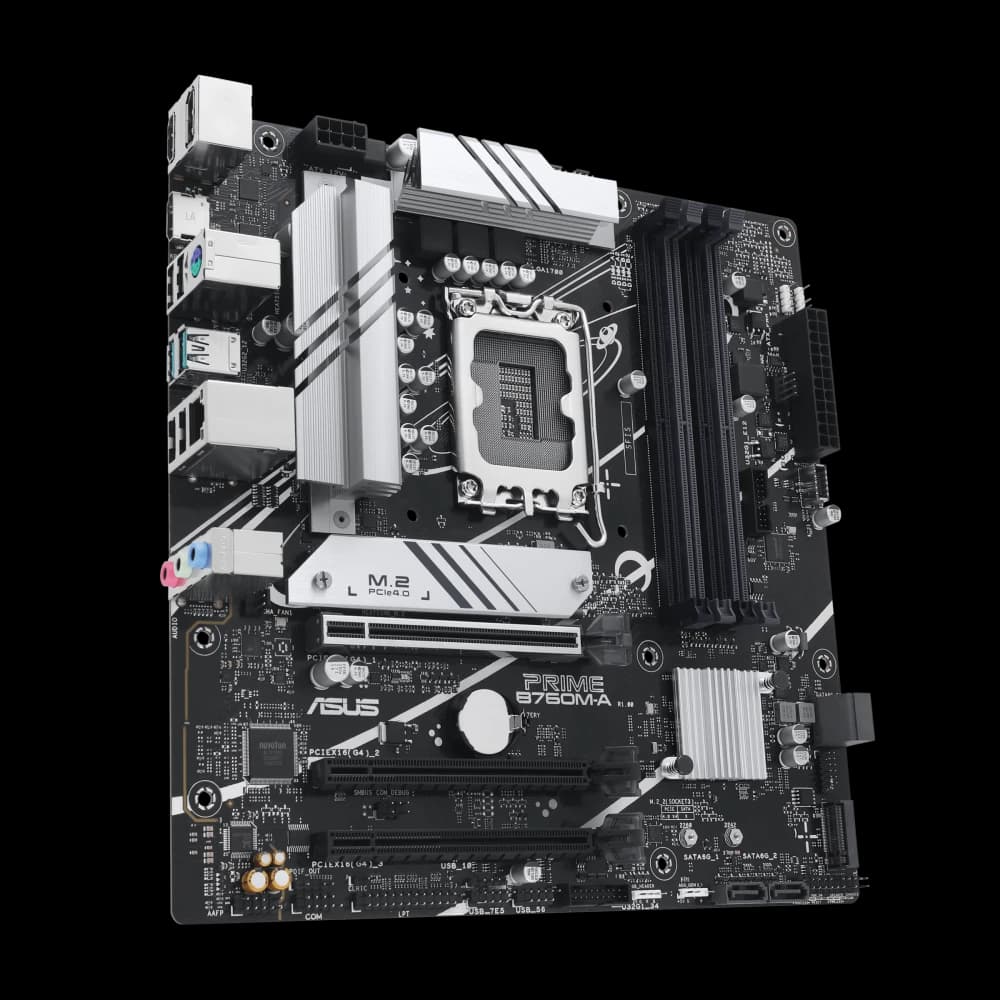

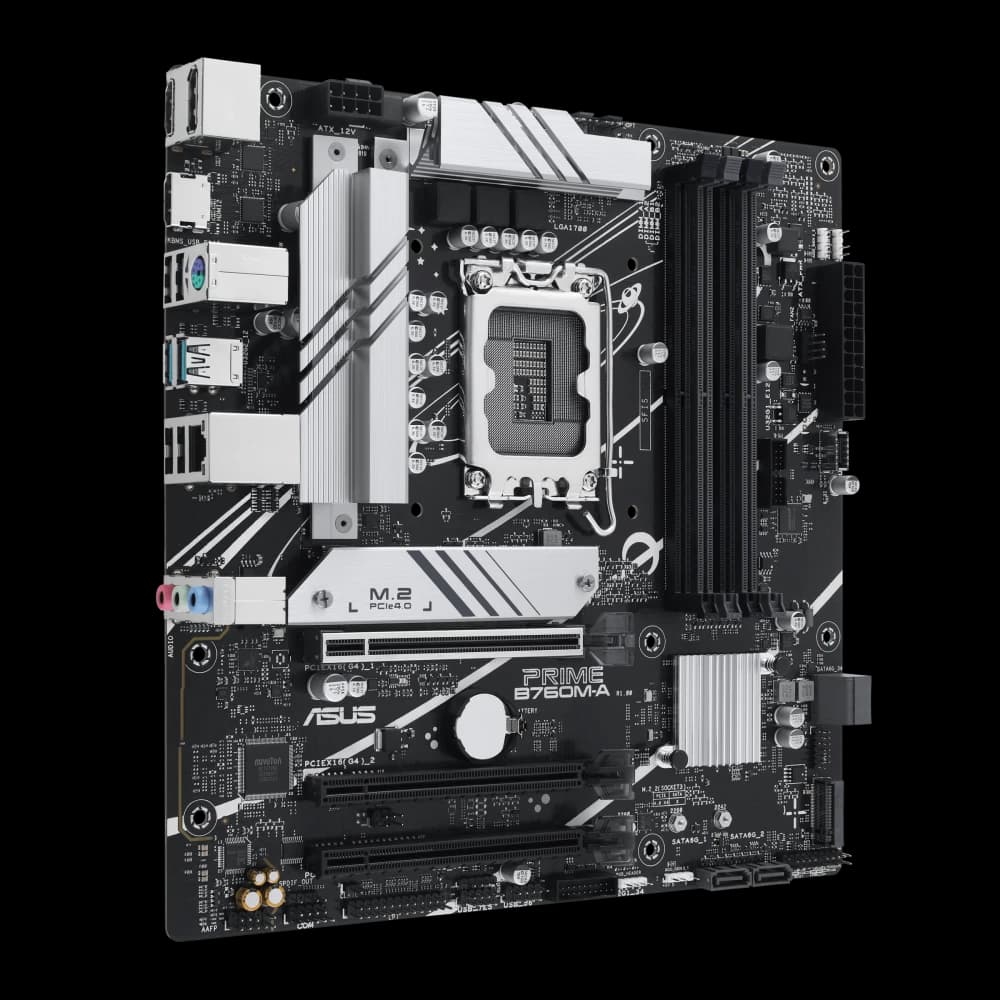

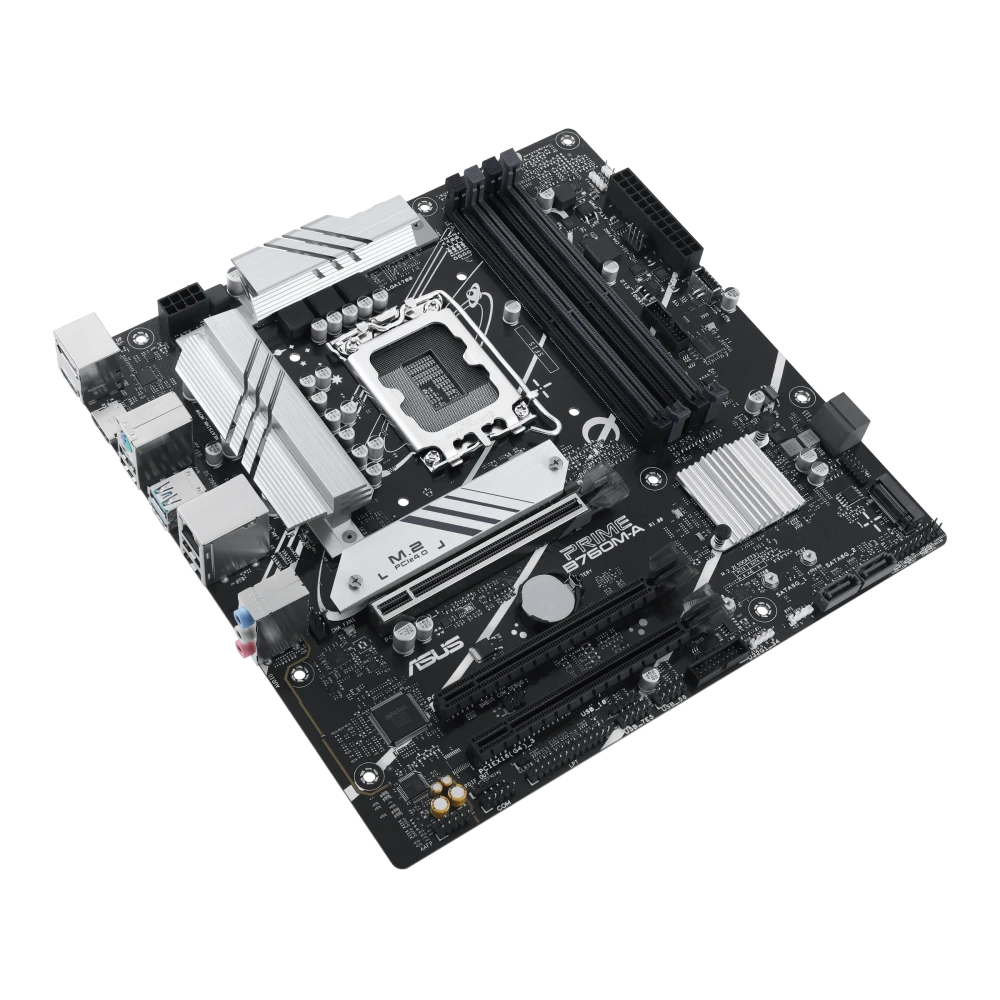

The ASUS PRIME B760M-A is an Intel B760 (LGA 1700) micro-ATX motherboard built around four DDR5 slots and dual M.2 storage, delivering higher memory capacity and expansion on a compact board. It fits mainstream gaming and creator builds on 12th, 13th and 14th Gen Intel Core CPUs.

Key Features

Intel B760 chipset on LGA 1700 for 12th, 13th and 14th Gen Intel Core processors
Four DDR5 DIMM slots supporting up to 256GB with overclocking to DDR5-7200 and beyond
PCIe 4.0 x16 slot plus additional expansion slots
Two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports
Realtek 2.5Gb Ethernet for faster wired networking
Rear USB 3.2 Gen 2 Type-A ports with front USB Type-C support

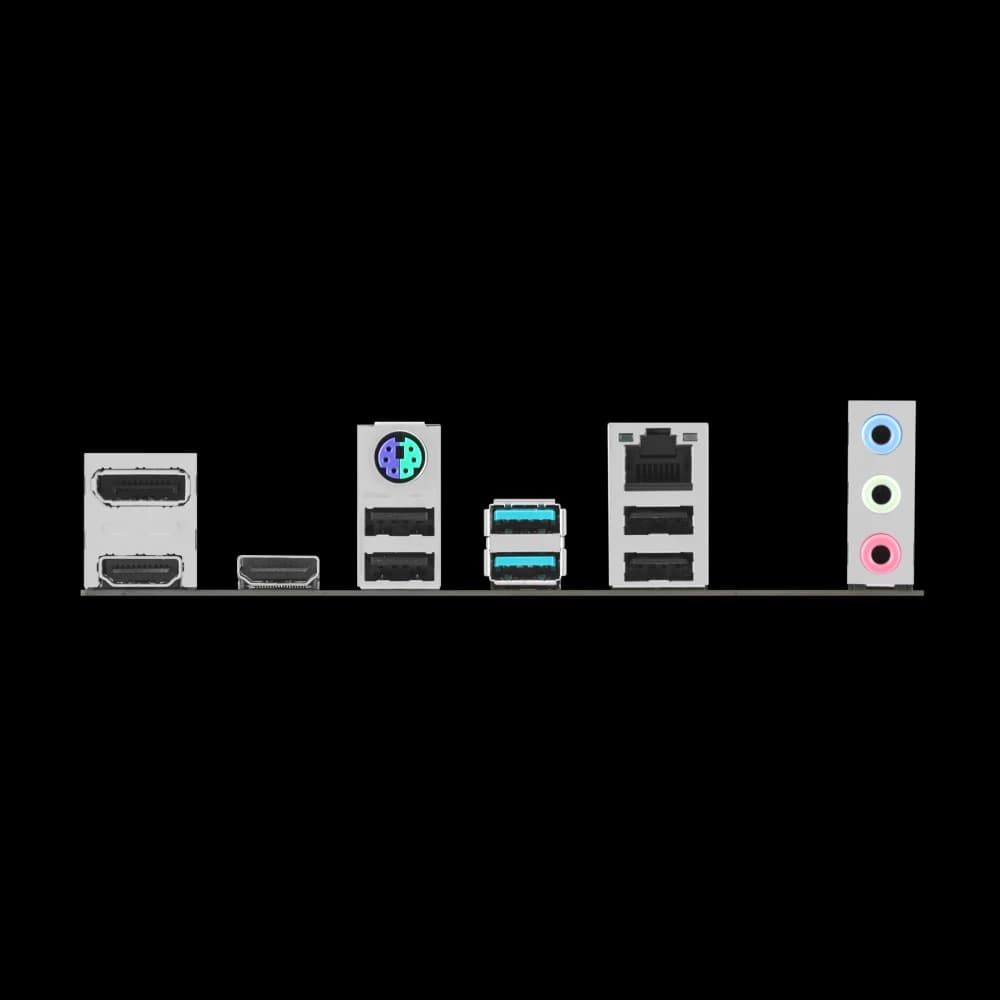

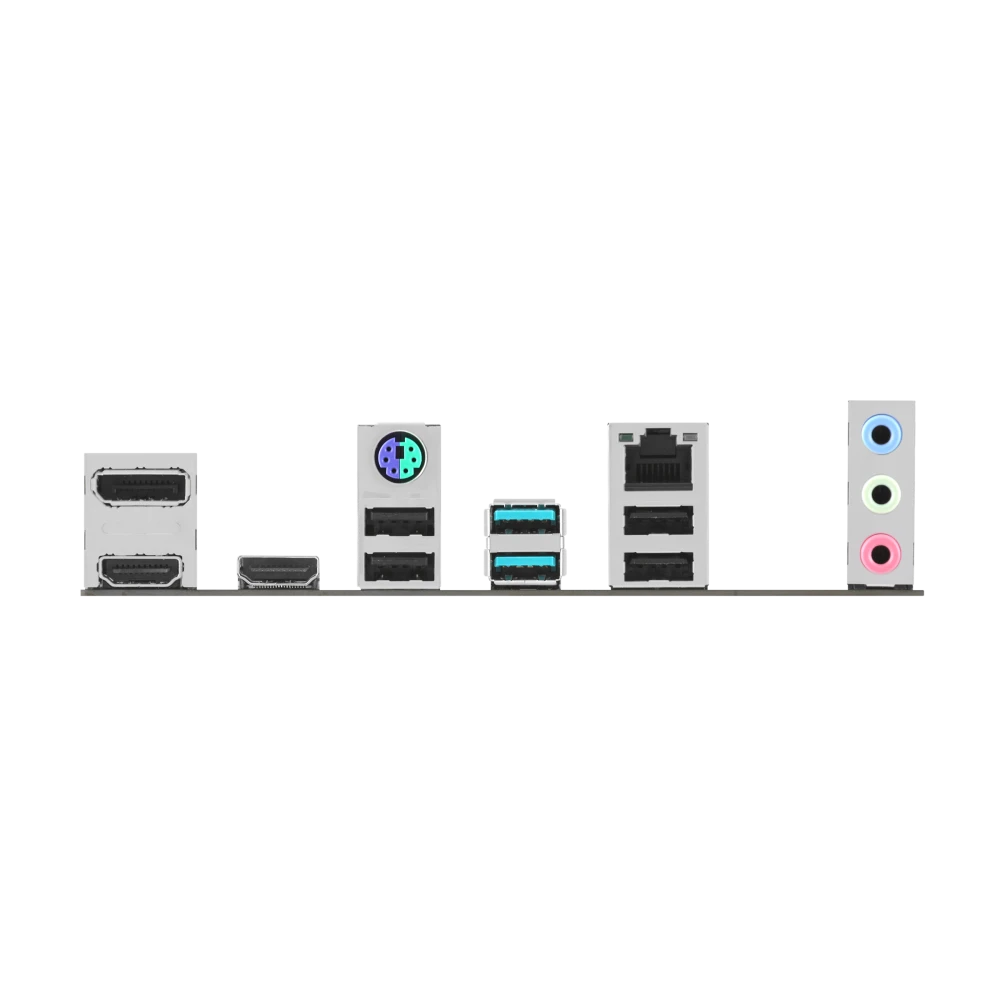

DisplayPort and dual HDMI outputs with Aura Sync

A well-equipped DDR5 B760 board with four RAM slots for versatile Intel builds.

Specifications

Spec	Value
Type	Micro-ATX motherboard
Socket	Intel LGA 1700
Chipset	Intel B760
CPU support	12th, 13th and 14th Gen Intel Core
Memory	4 x DDR5, up to 256GB, DDR5-7200+ (OC)
Graphics slot	PCIe 4.0 x16
Storage	2 x M.2 (PCIe 4.0), 4 x SATA 6Gb/s
LAN	Realtek 2.5Gb Ethernet
Video output	DisplayPort, 2 x HDMI
Audio	Realtek 7.1 HD Audio
