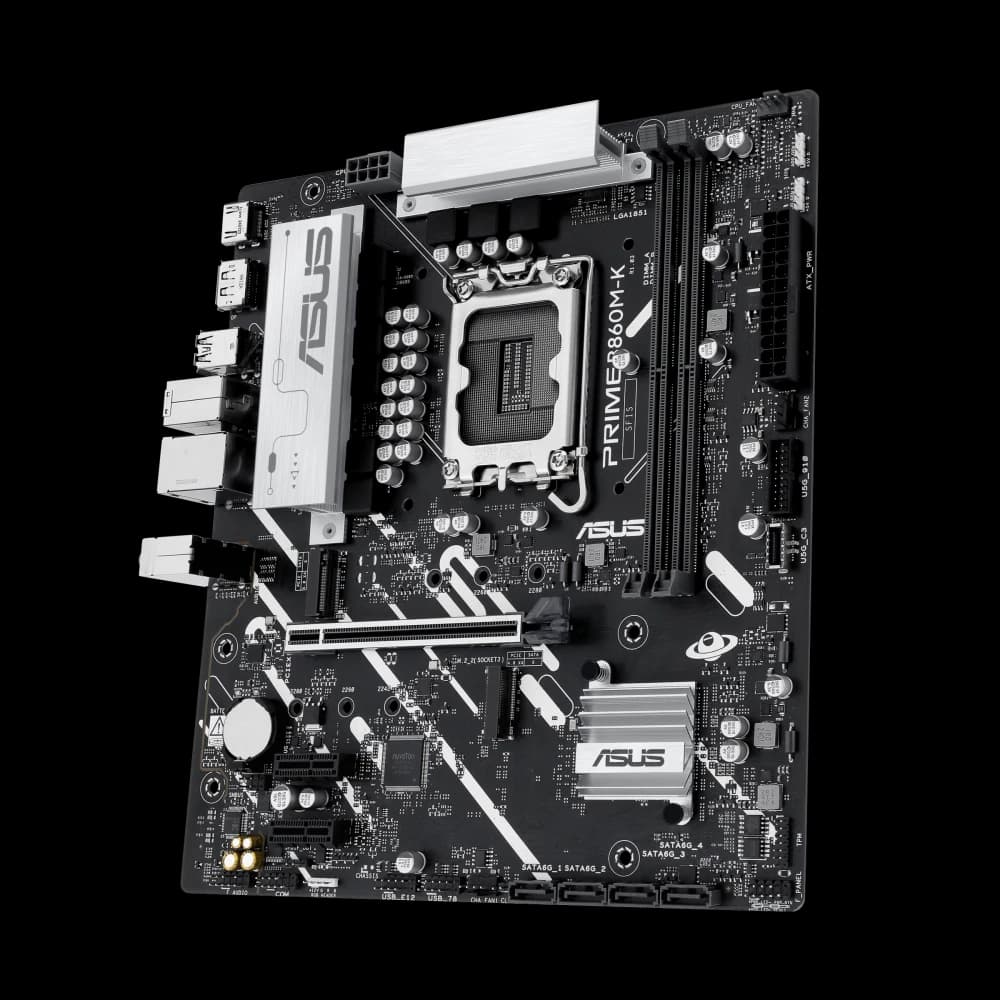

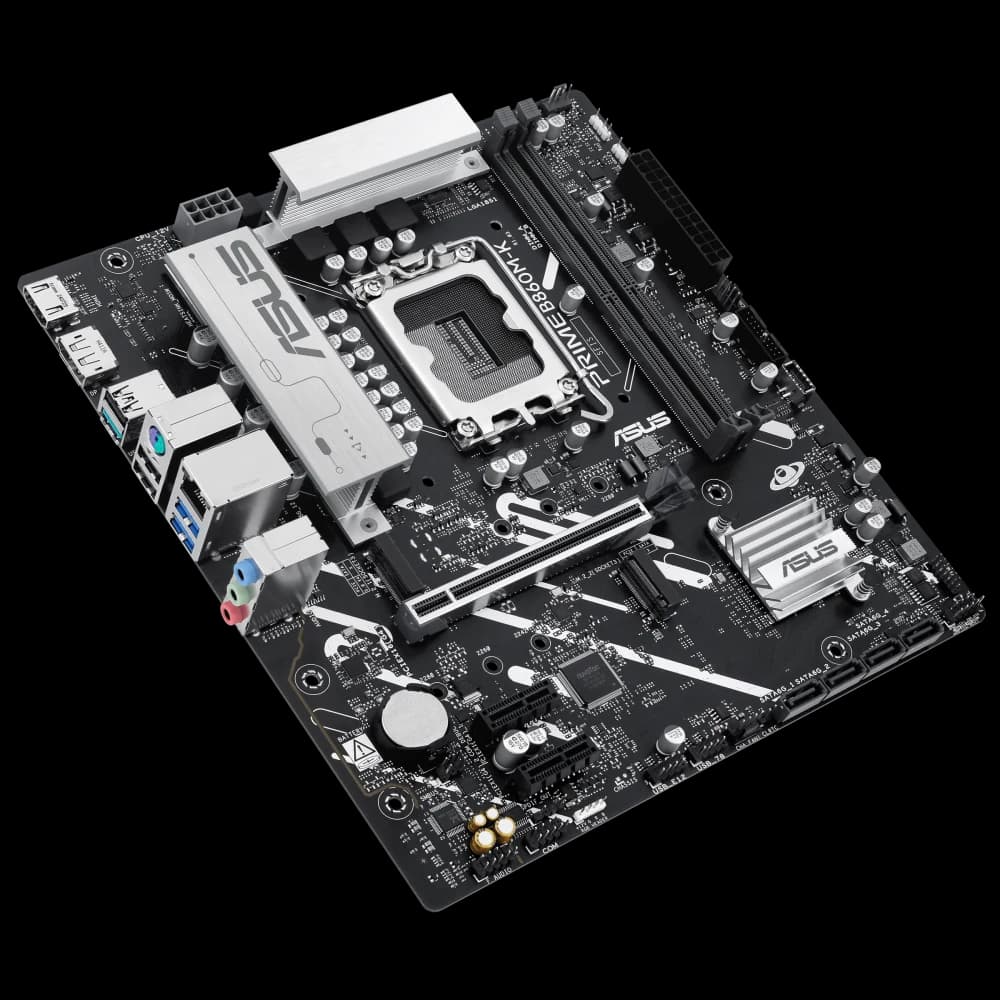

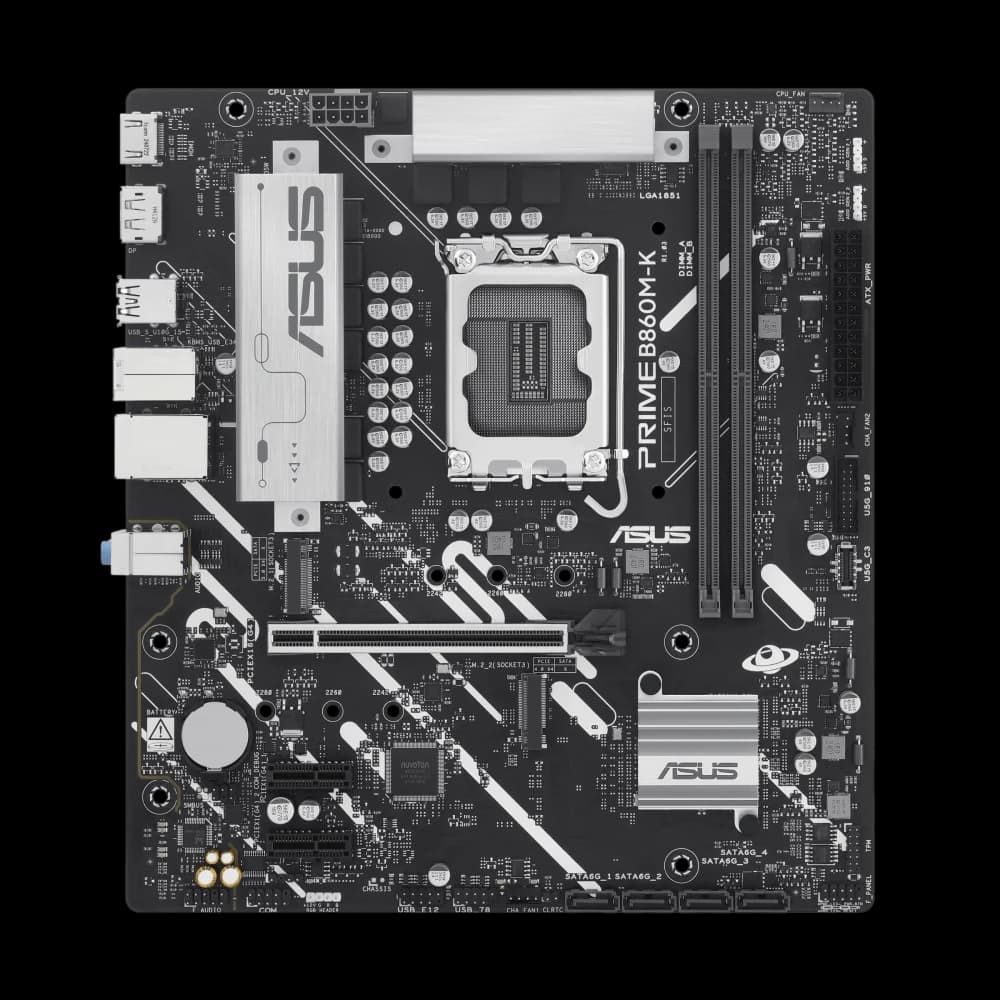

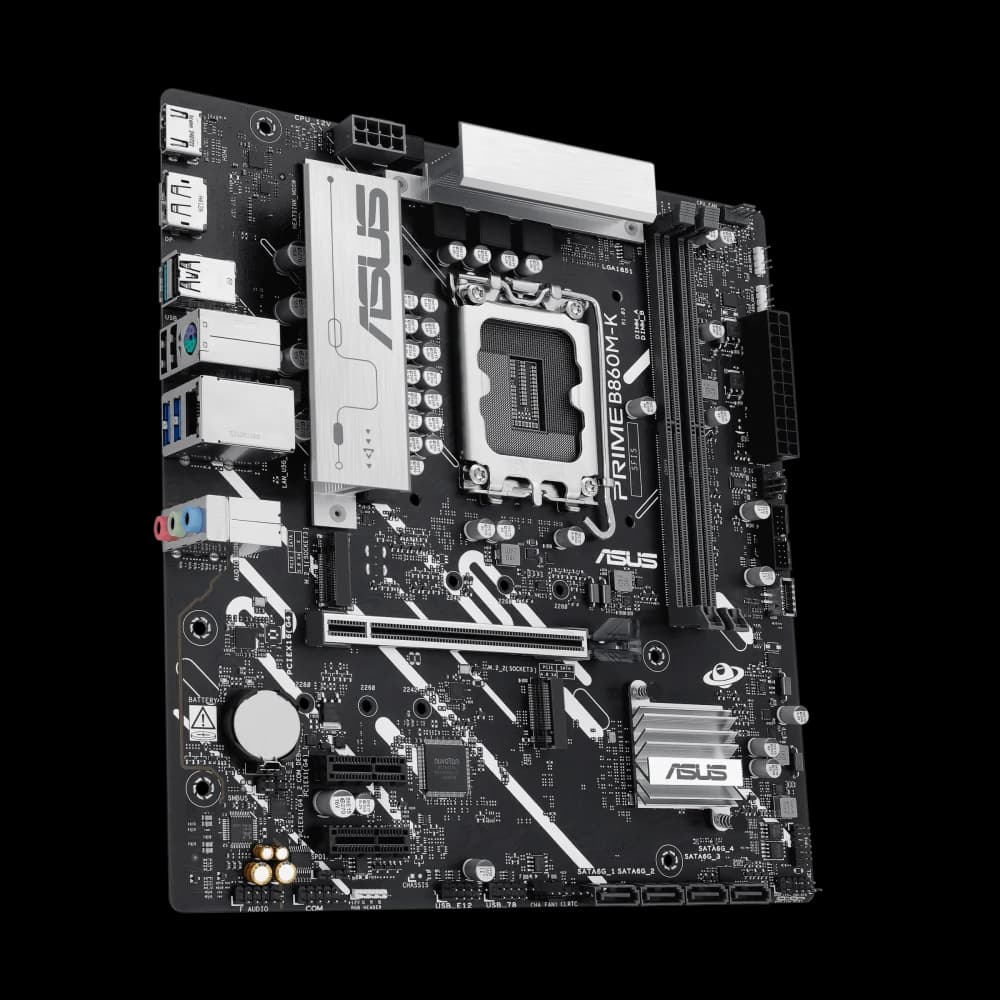

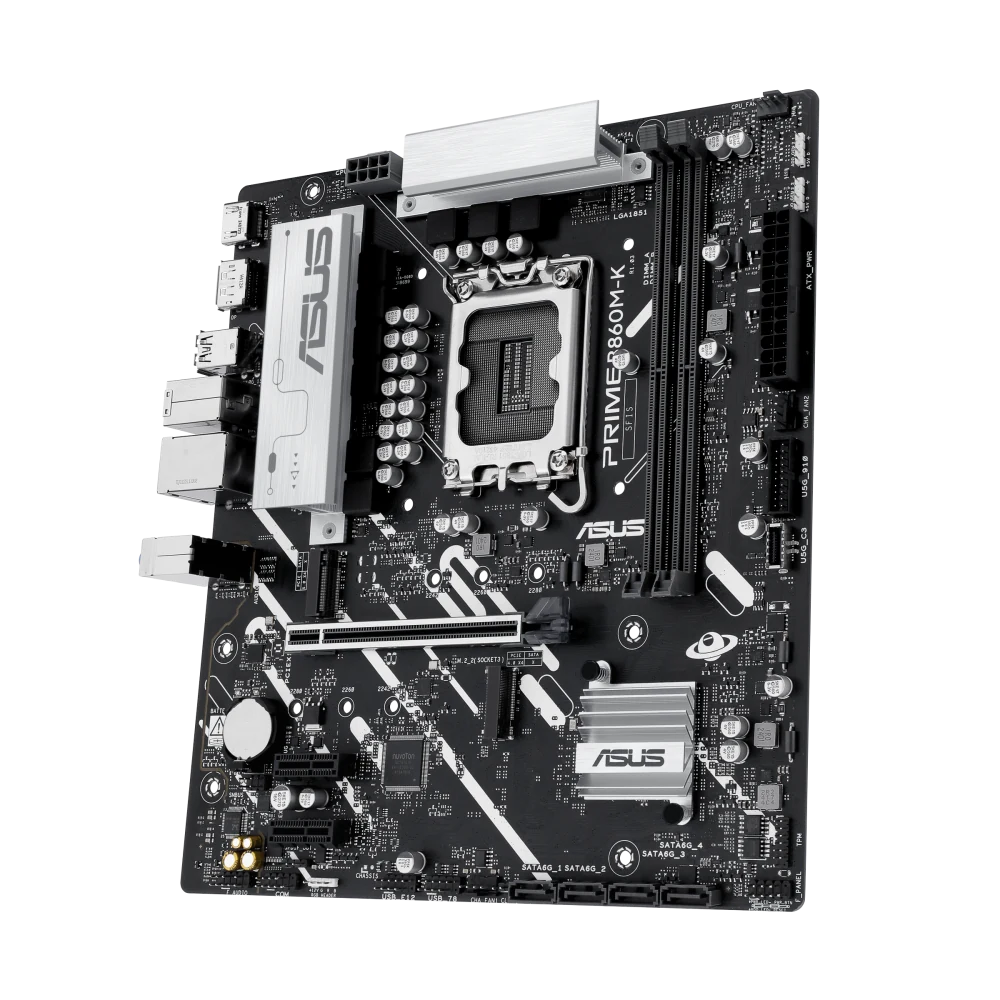

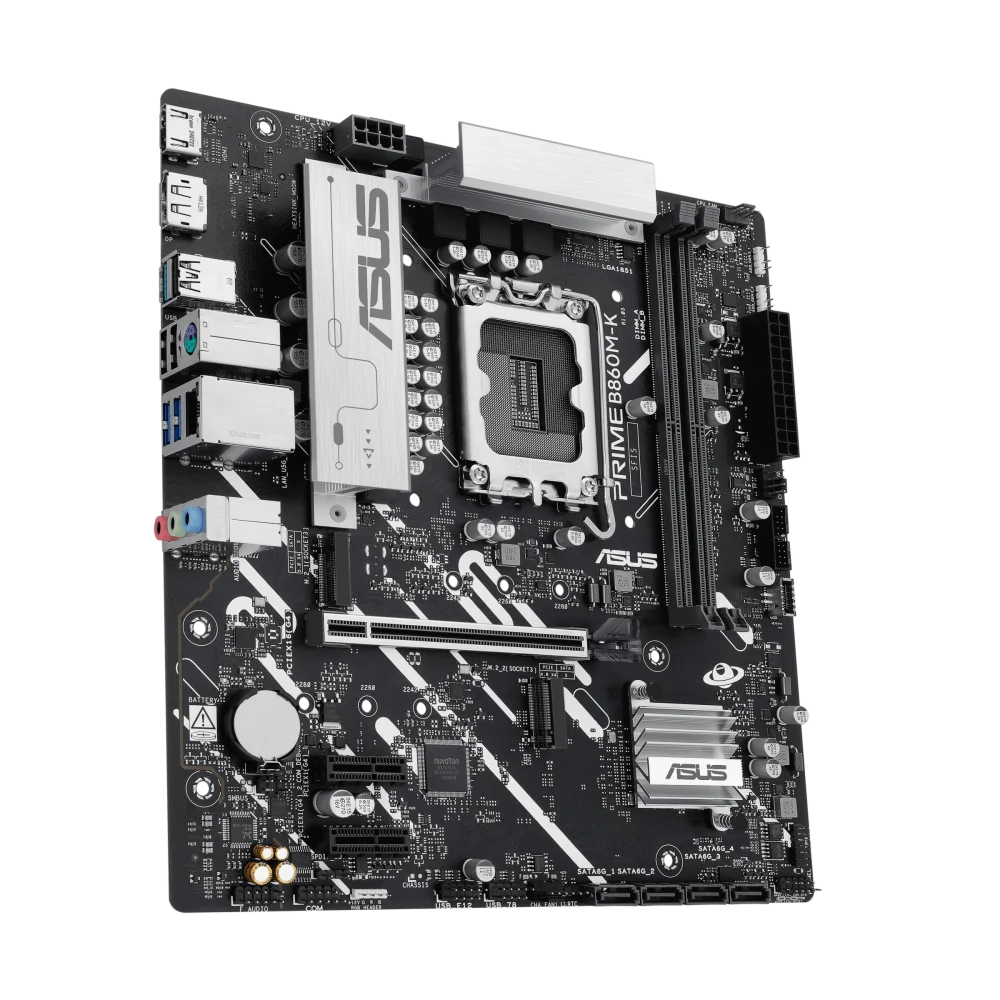

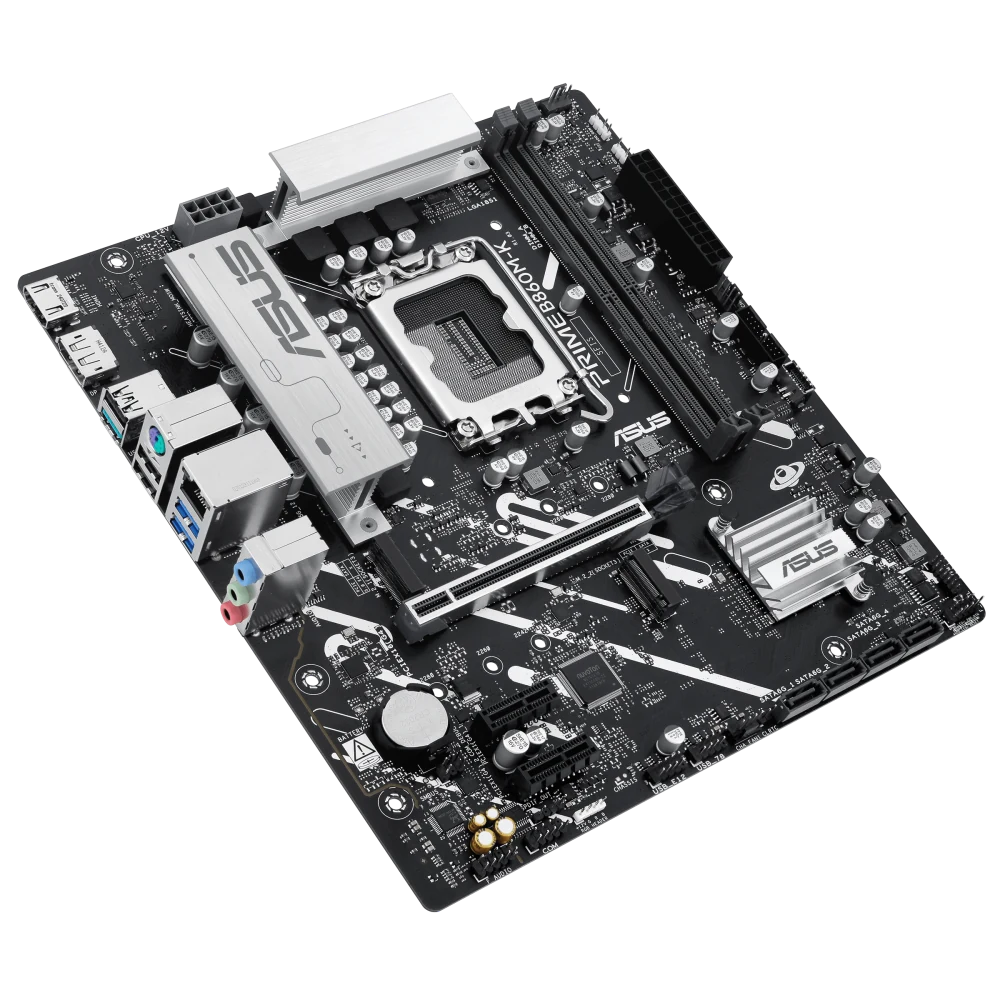

ASUS Prime B860M-K CSM

Name: ASUS Prime B860M-K CSM
Brand: ASUS
SKU: ASUS-asus-prime-b860m-k-csm
Price: 49999 PKR
Availability: InStock

Rs 49,999

In stock

1 year local warranty

SKU: ASUS-asus-prime-b860m-k-csm
Category: Motherboards

Description

The ASUS Prime B860M-K CSM is a business-ready micro-ATX board for Intel LGA1851 Core Ultra Series 2 systems, part of the ASUS Corporate Stable Model program for long-life, dependable builds. It pairs a clean feature set with a PCIe 5.0 M.2 slot so office and home rigs stay quick.

Key Features

Intel LGA1851 socket for Intel Core Ultra Processors (Series 2)
DDR5 memory up to 128GB across 2 DIMM slots, 8800+ MT/s (OC)
One PCIe 5.0 x4 M.2 slot plus a second PCIe 4.0 x4 M.2
PCIe 4.0 x16 SafeSlot for a dedicated graphics card
Realtek 2.5Gb Ethernet for fast wired networking
USB 10Gbps and front USB-C connectivity
DisplayPort and HDMI outputs at 4K@60Hz
CSM program with extended lifecycle and stability validation

A sensible foundation for value Intel builds and corporate desktops that still want modern storage speed.

Specifications

Spec	Value
Socket	Intel LGA1851 for Intel Core Ultra Processors (Series 2)
Chipset	Intel B860
Form Factor	micro-ATX, 24.4 cm x 22.2 cm
Memory	2 x DIMM, max. 128GB, DDR5, up to 8800+ MT/s (OC)
PCIe	1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
M.2	2 x M.2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4)
SATA	4 x SATA 6Gb/s
LAN	Realtek 2.5Gb Ethernet

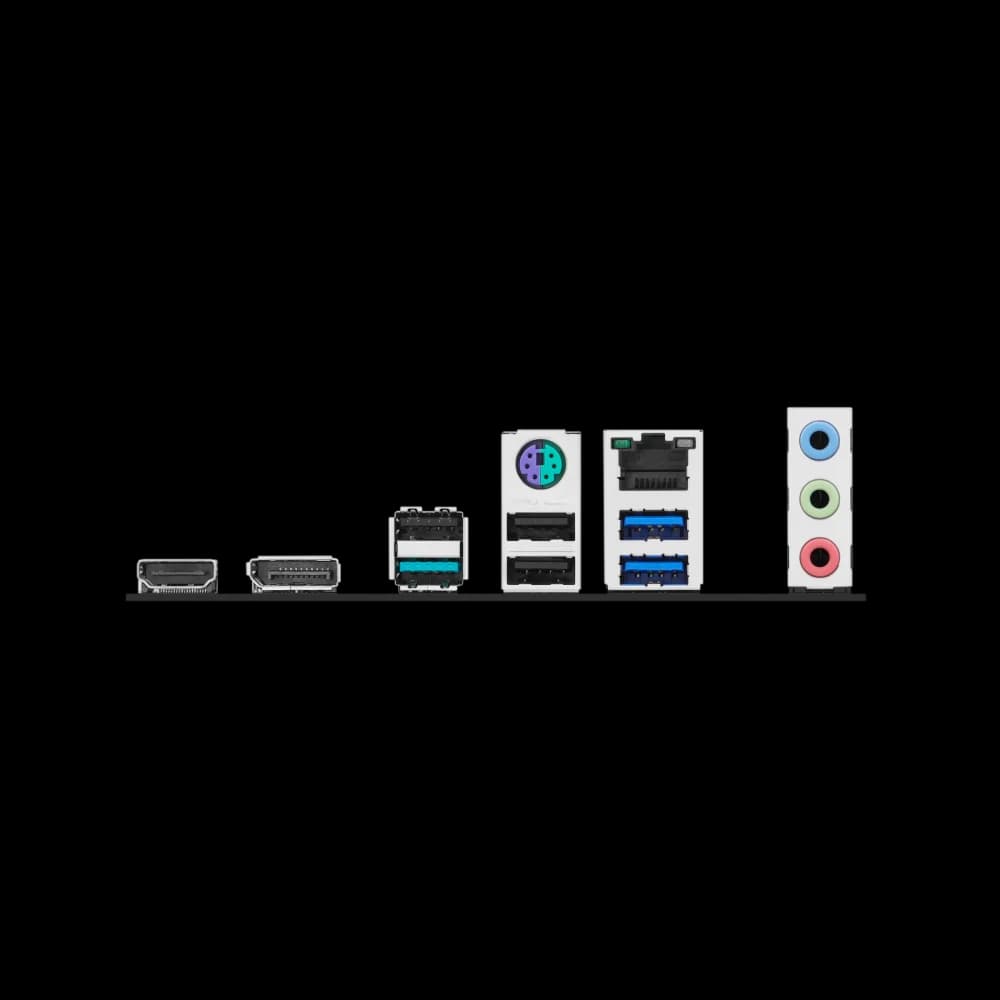

USB (rear)	1 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 3 x USB 2.0 Type-A
USB (headers)	1 x USB 5Gbps Type-C, 1 x USB 5Gbps, 2 x USB 2.0
Video Output	1 x DisplayPort (4K@60Hz), 1 x HDMI (4K@60Hz)
