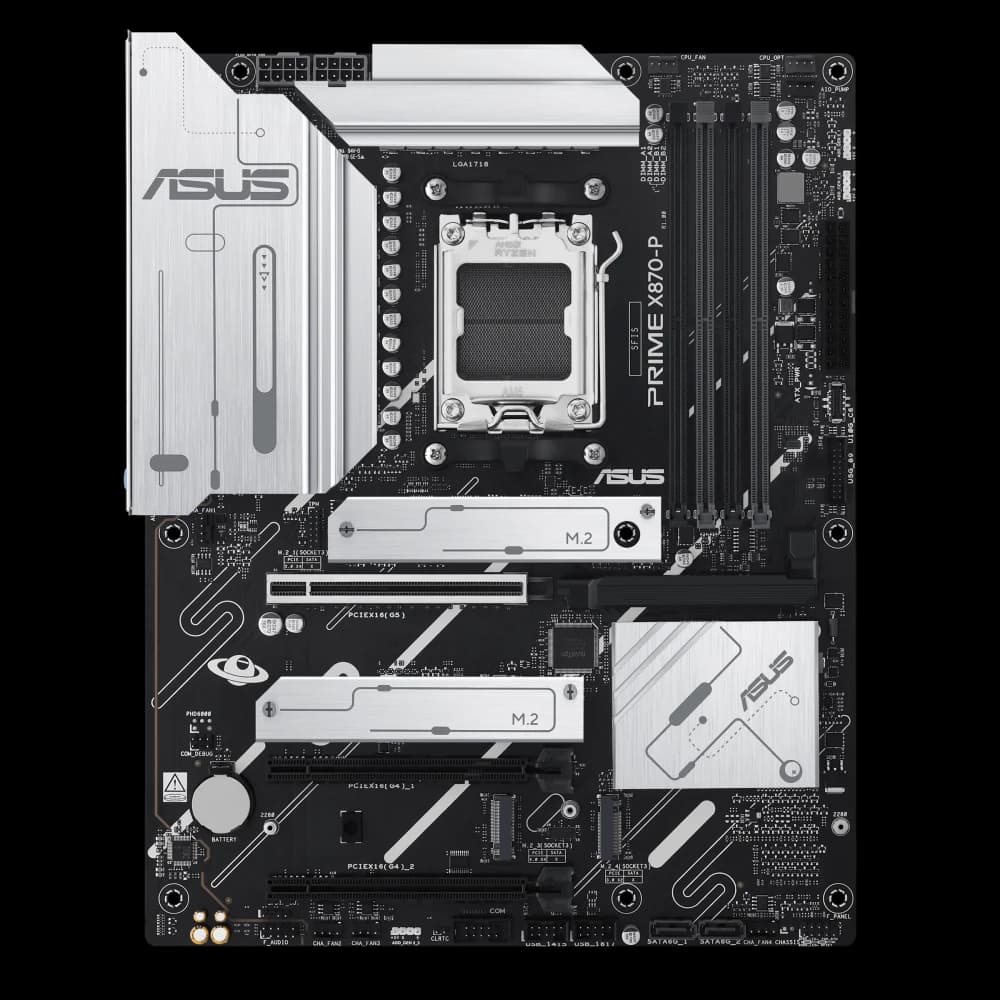

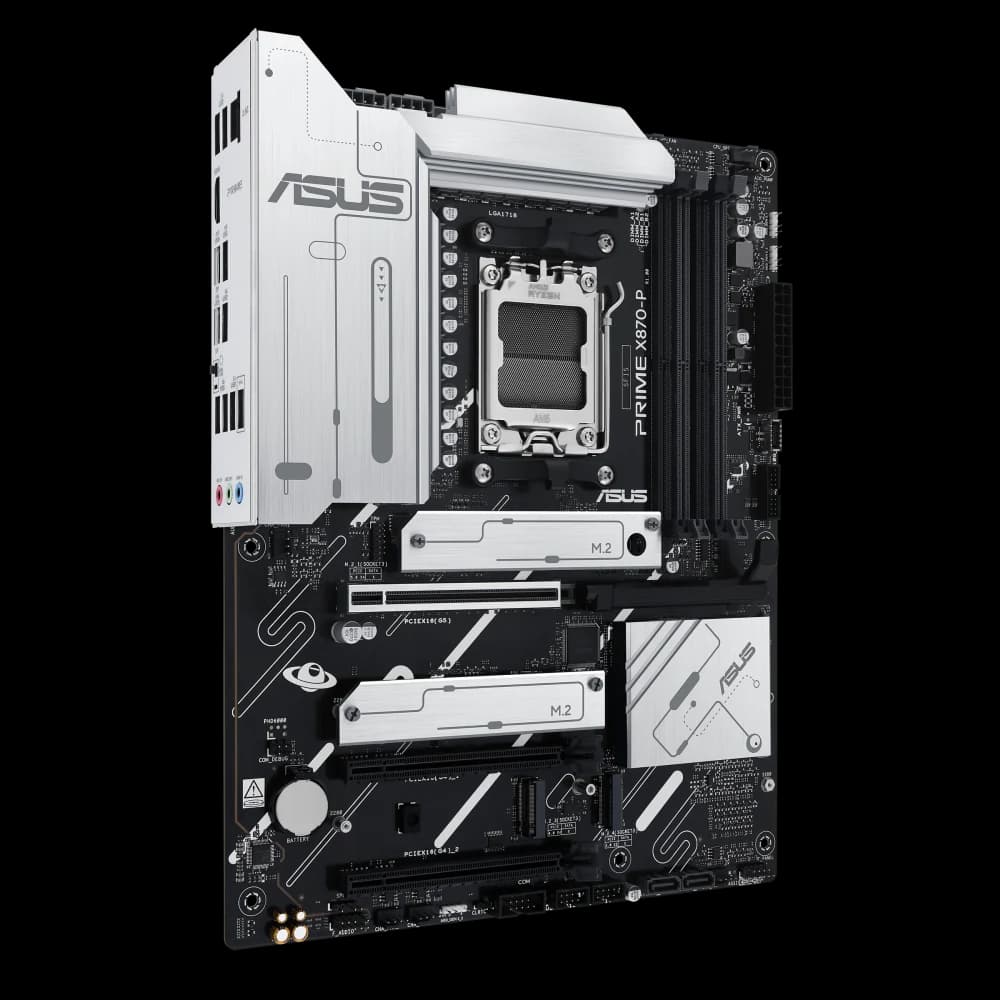

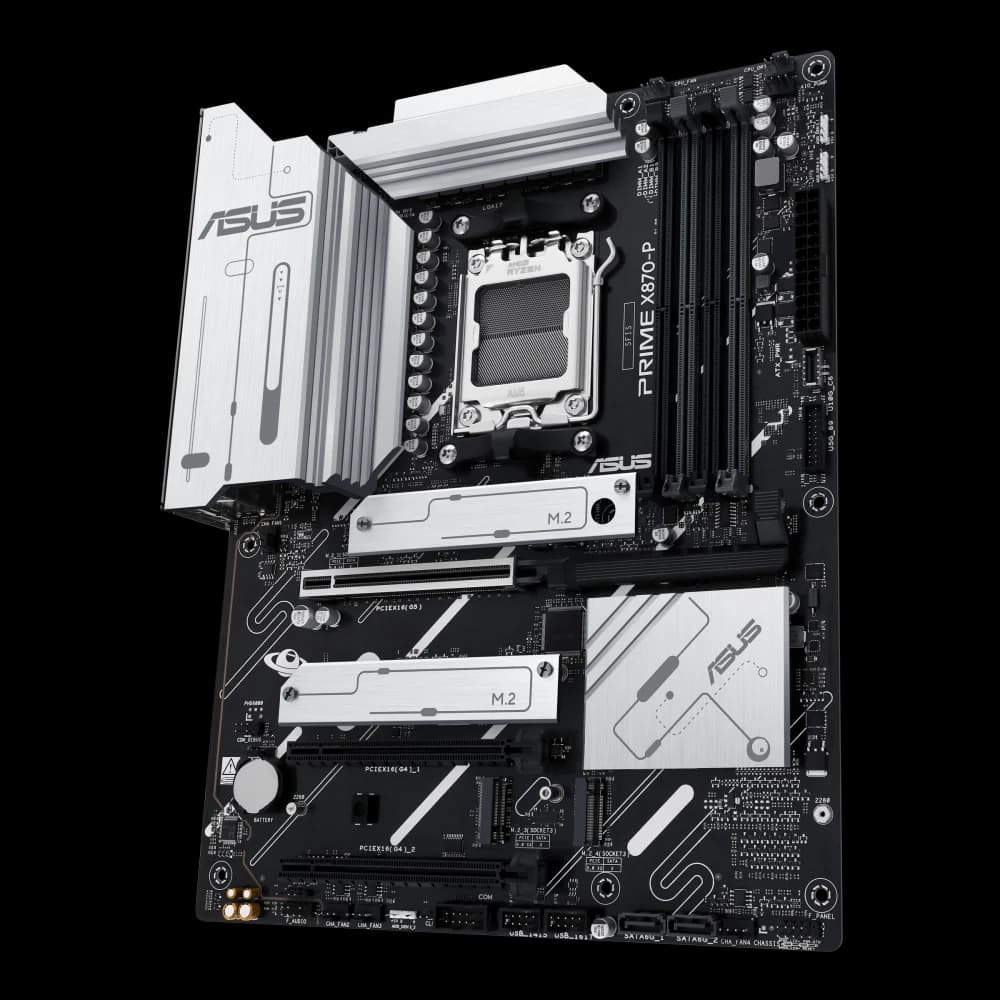

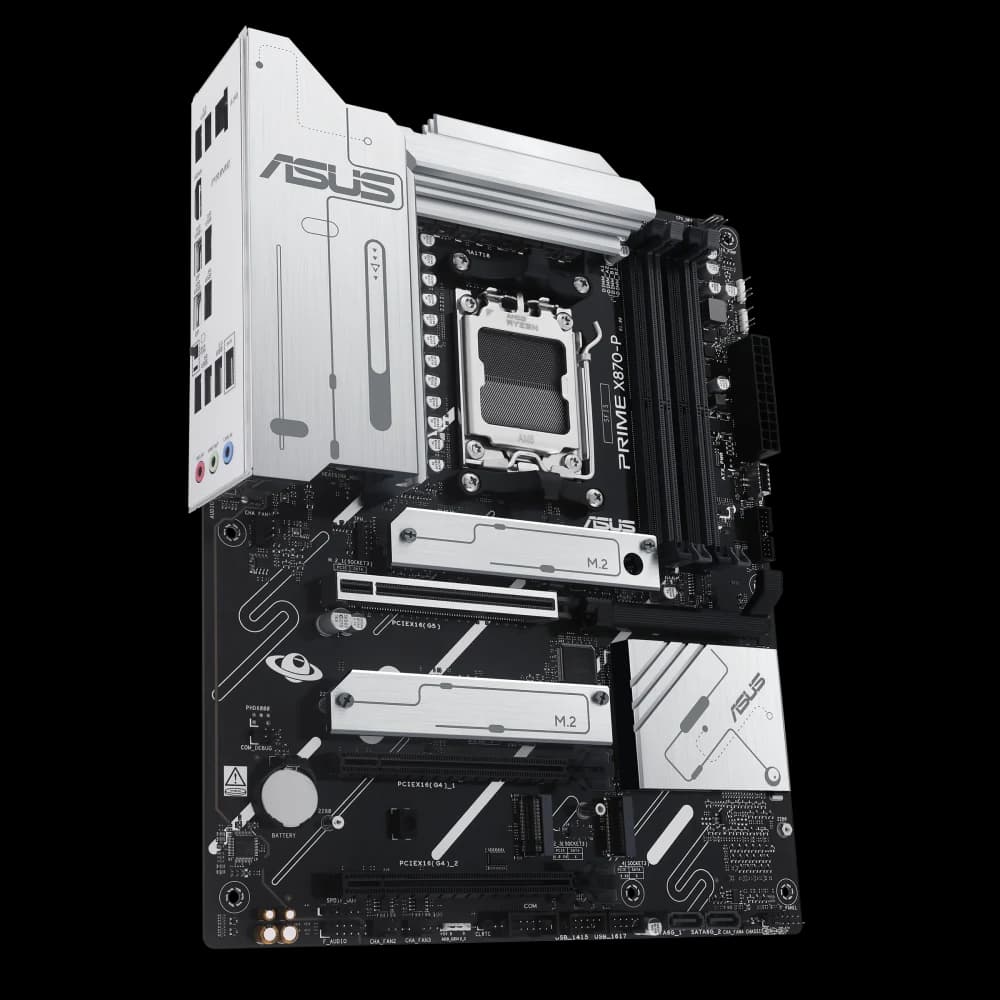

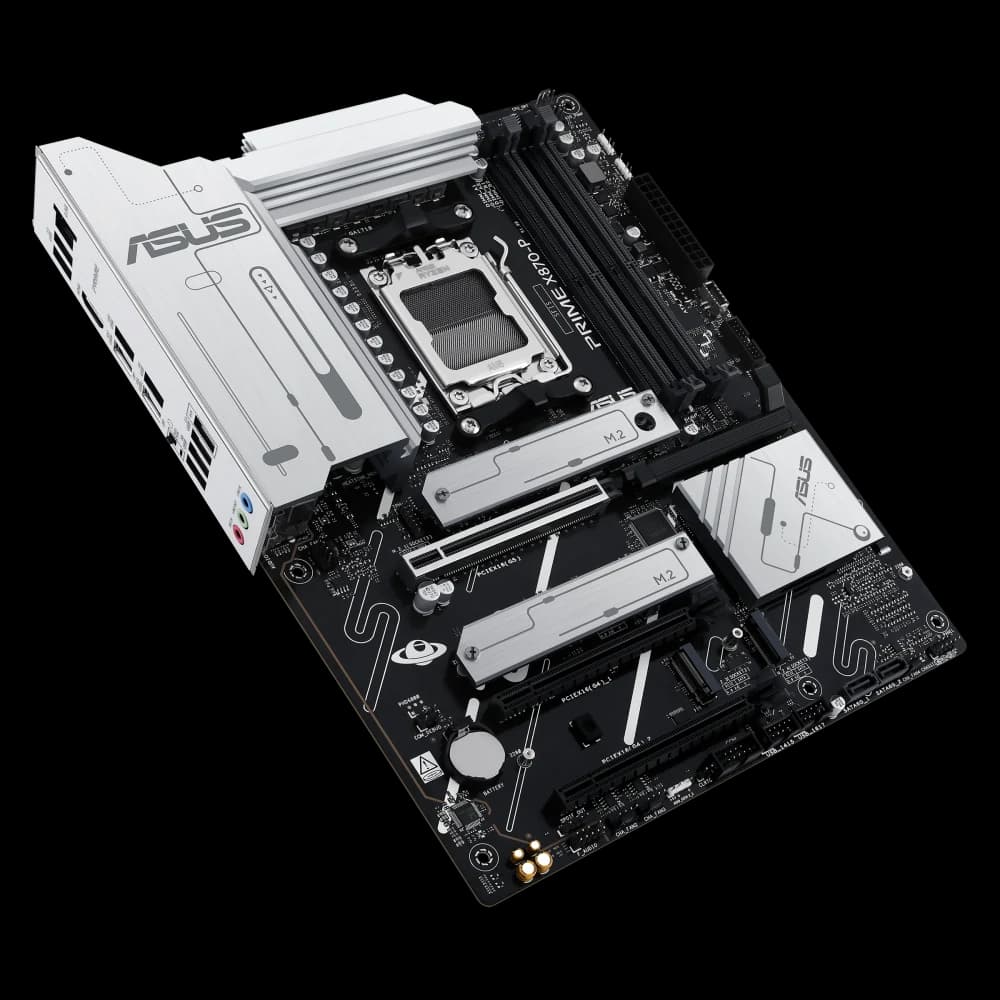

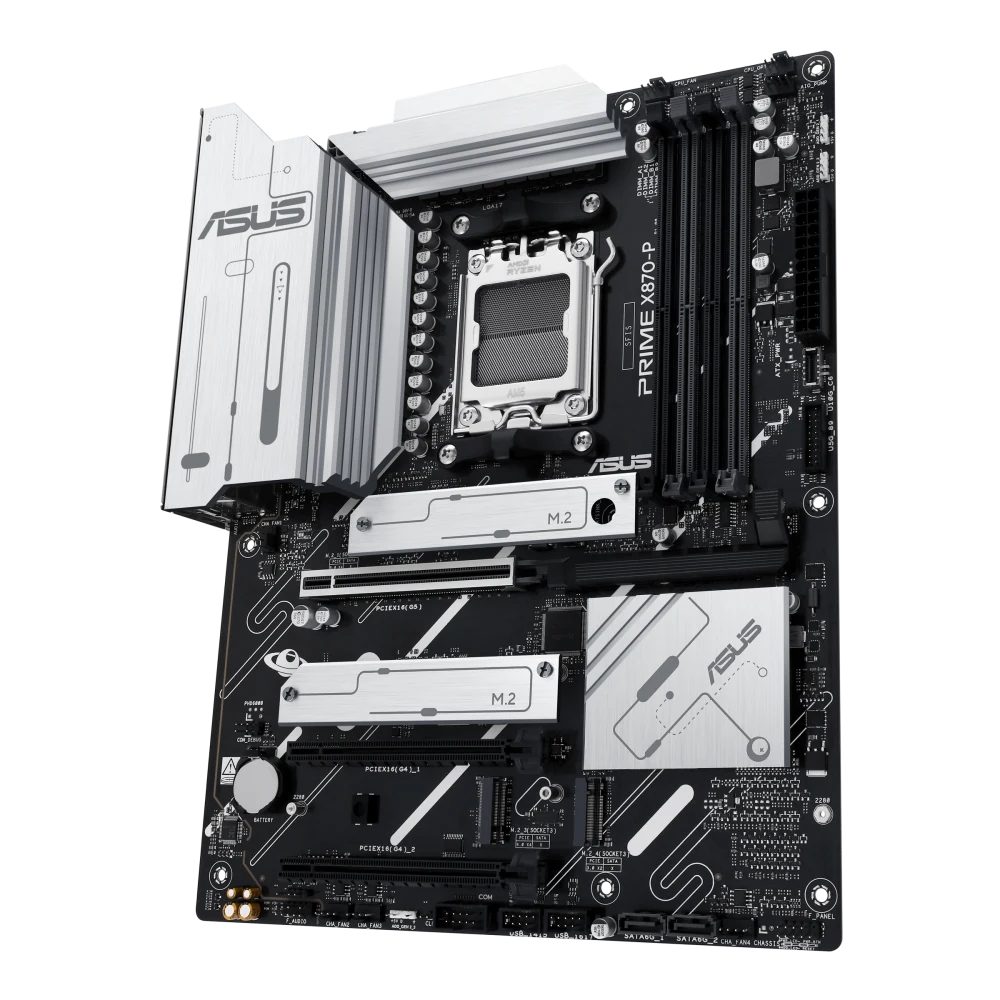

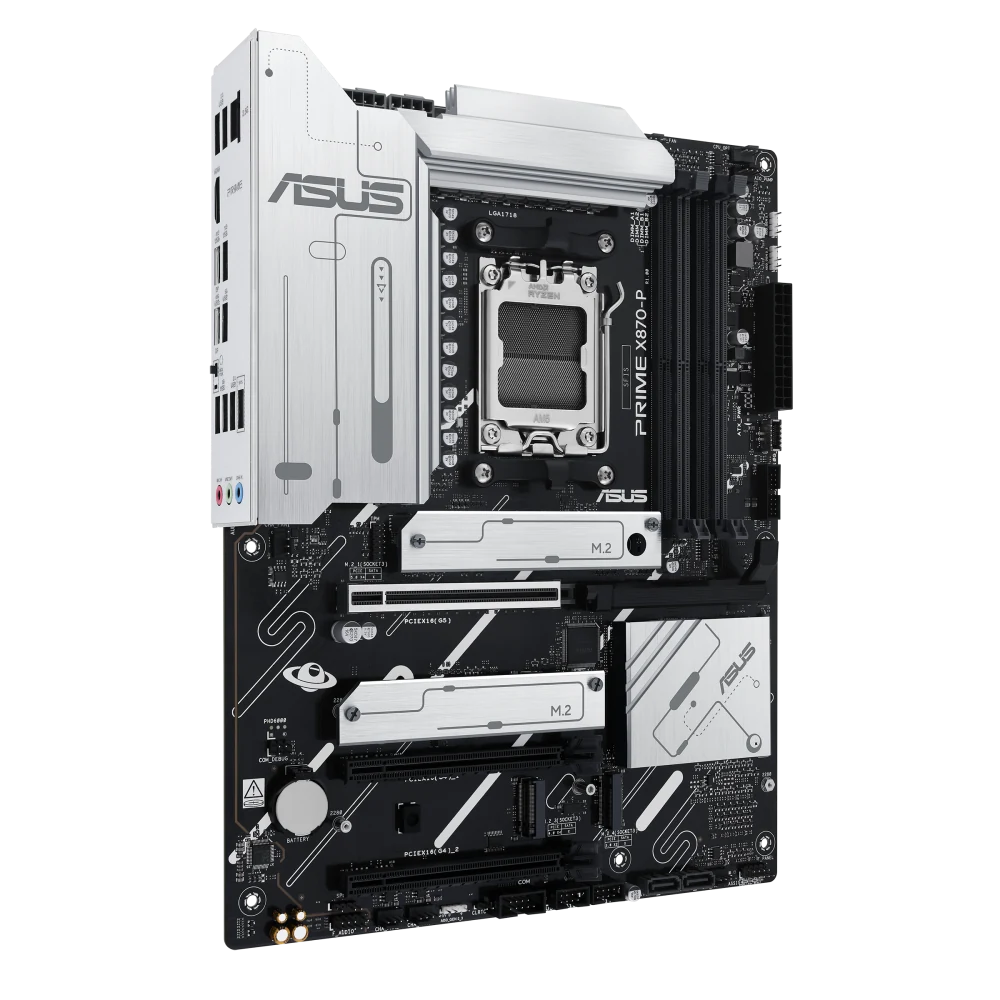

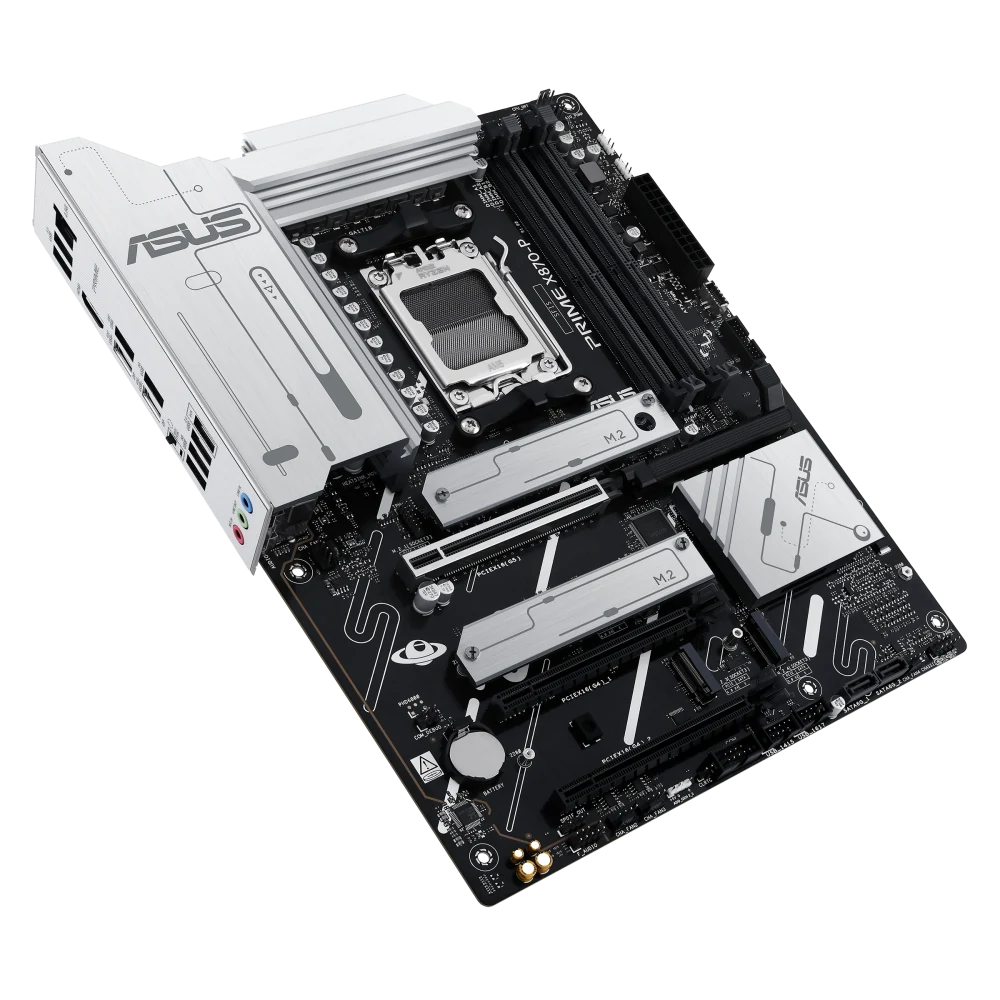

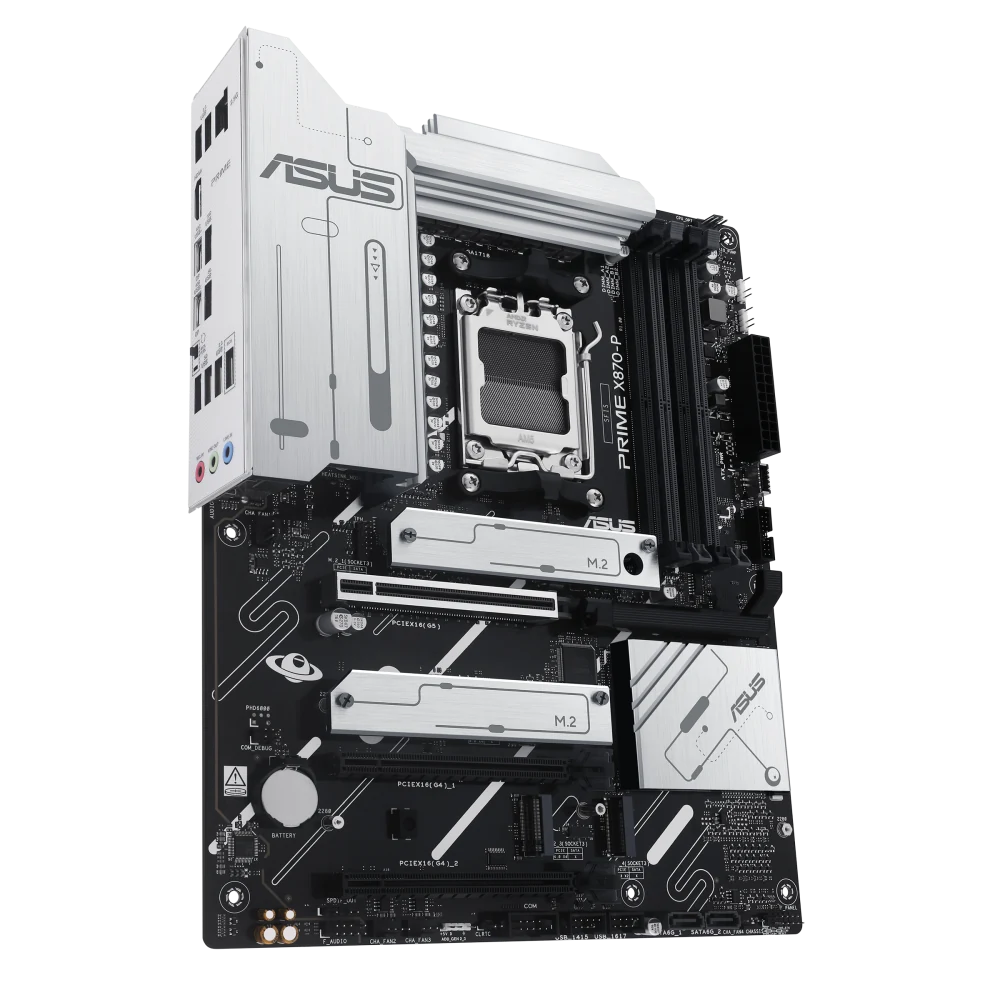

Hover to zoom · click for full imageThe ASUS Prime X870-P-CSM brings the AMD X870 platform to builders who want dual USB4 40Gbps connectivity and PCIe 5.0 storage without paying for extras they will not use. Four M.2 slots and a sturdy 14+2+1 power design make it a dependable base for a modern AM5 workstation or gaming PC, backed by the CSM program for business-grade stability.
A clean, reliable X870 board that delivers USB4 and Gen5 essentials for serious AM5 builds.
| Spec | Value |
|---|---|
| CPU Socket | AMD Socket AM5 (Ryzen 9000 / 8000 / 7000) |
| Chipset | AMD X870 |
| Memory | 4 x DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC) |
| Power Stages | 14 + 2 + 1 DrMOS |
| PCIe x16 | 1 x PCIe 5.0 x16 (Ryzen 9000/7000) |
| M.2 Slots | 4 x M.2 (M.2_1 PCIe 5.0 x4; remaining via chipset) |
| SATA | 2 x SATA 6Gb/s |
| LAN | Realtek 2.5Gb Ethernet with LANGuard |
| USB (Rear) | 2 x USB4 40Gbps Type-C, 1 x USB 10Gbps Type-A, 3 x USB 5Gbps, 4 x USB 2.0 |
| Display | 1 x HDMI (4K@60Hz), 2 x USB4 Type-C display output |
| Audio | Realtek 7.1 Surround HD Audio |
| Form Factor | ATX, 30.5cm x 24.4cm |
