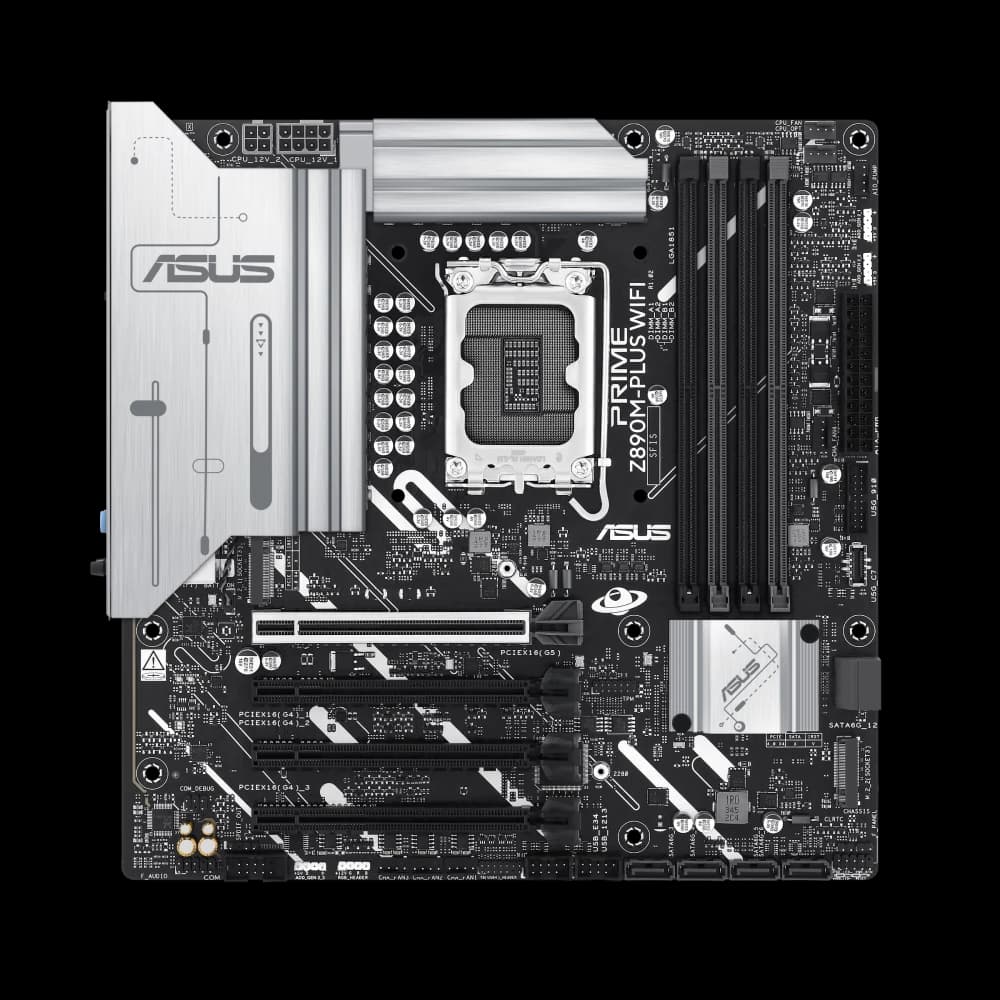

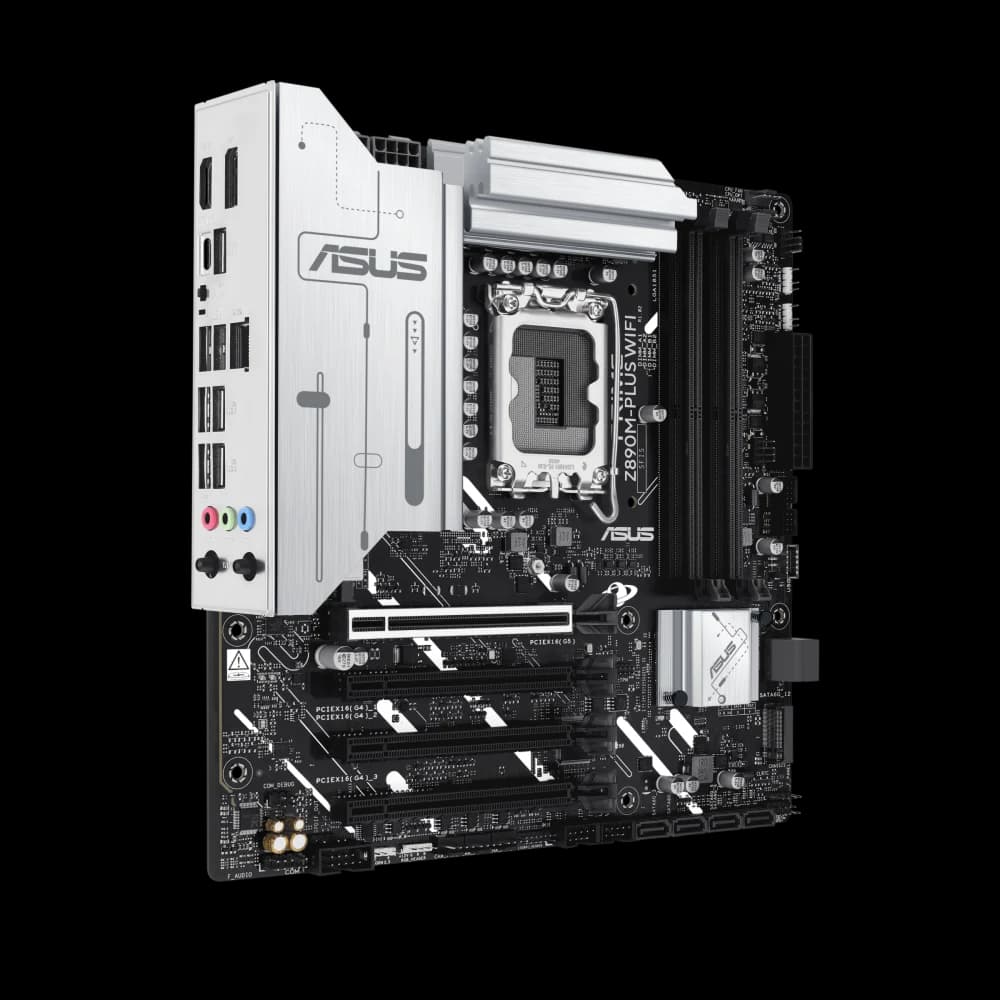

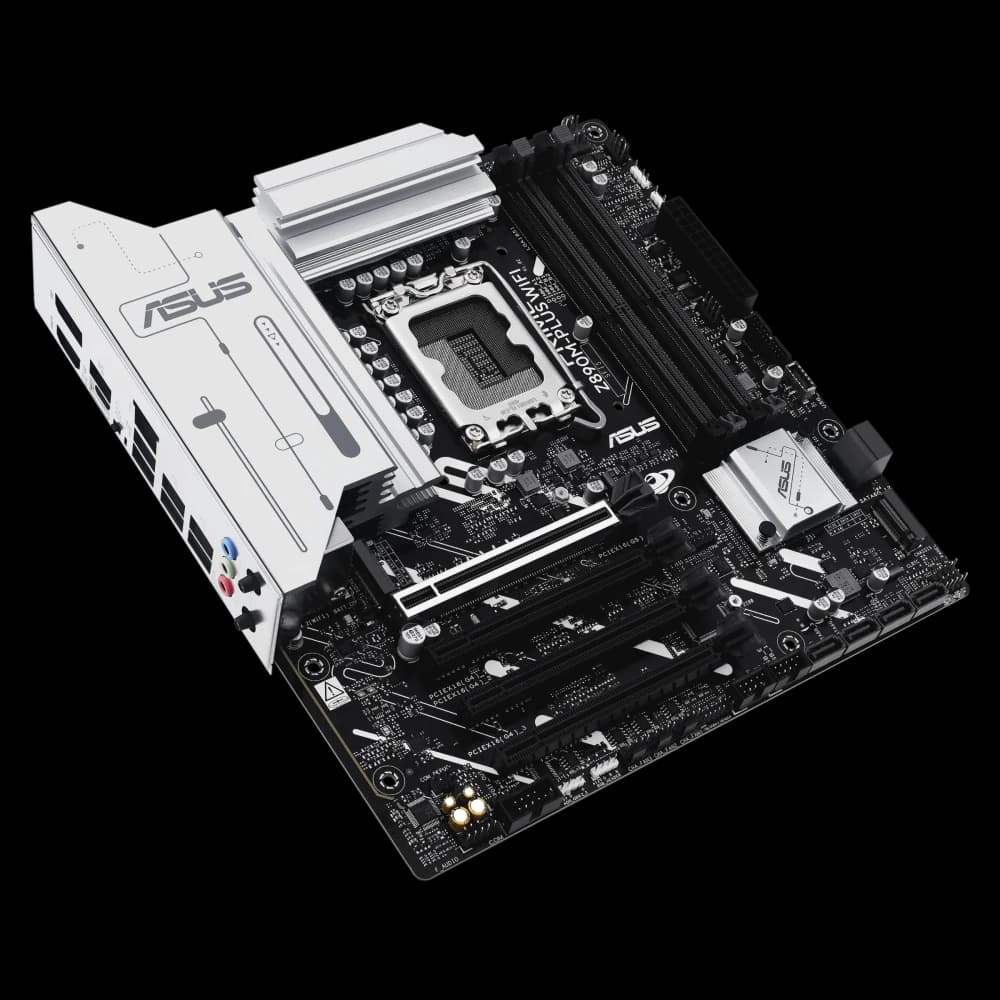

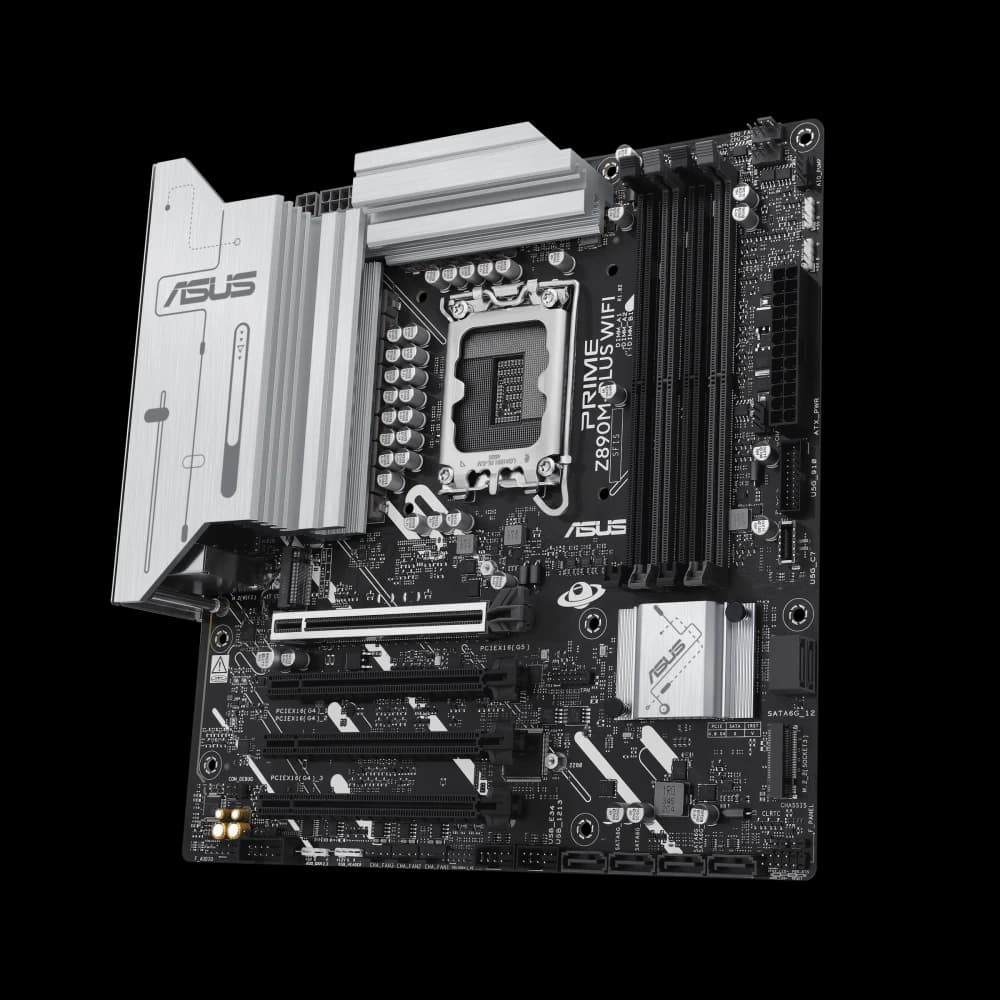

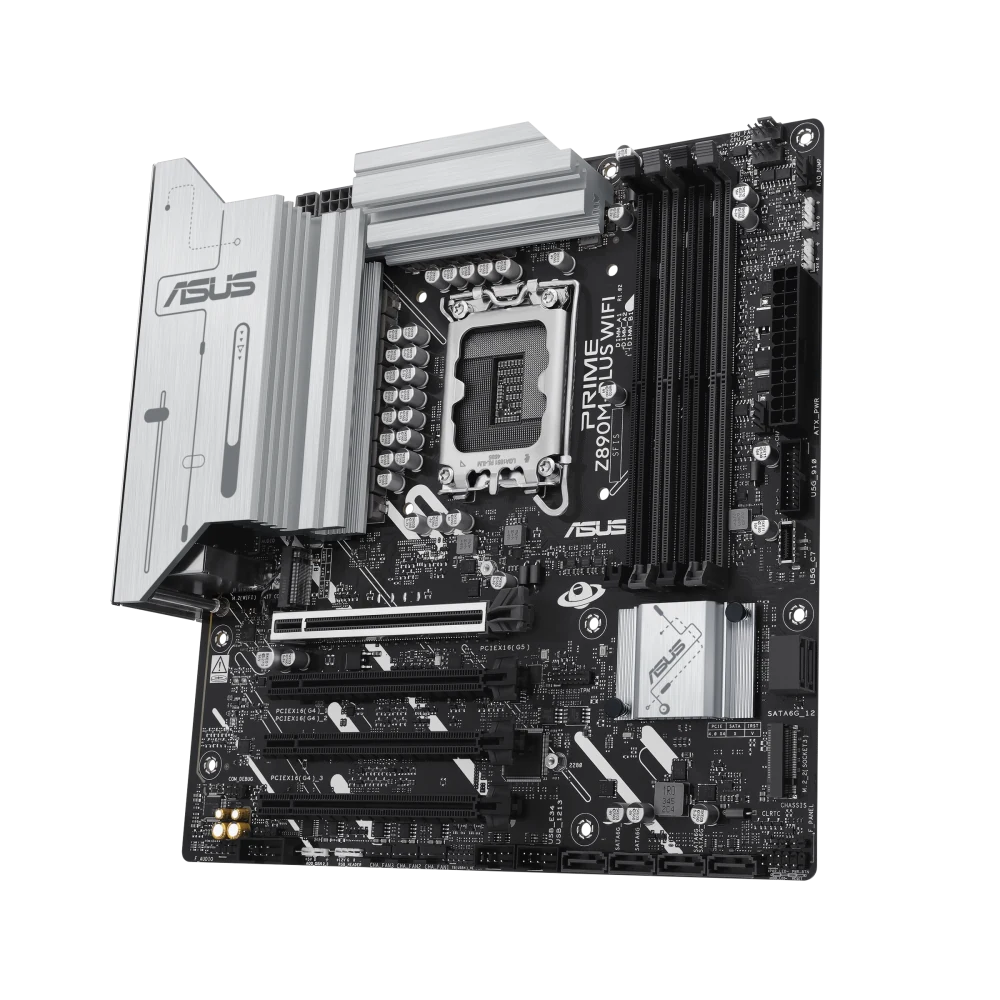

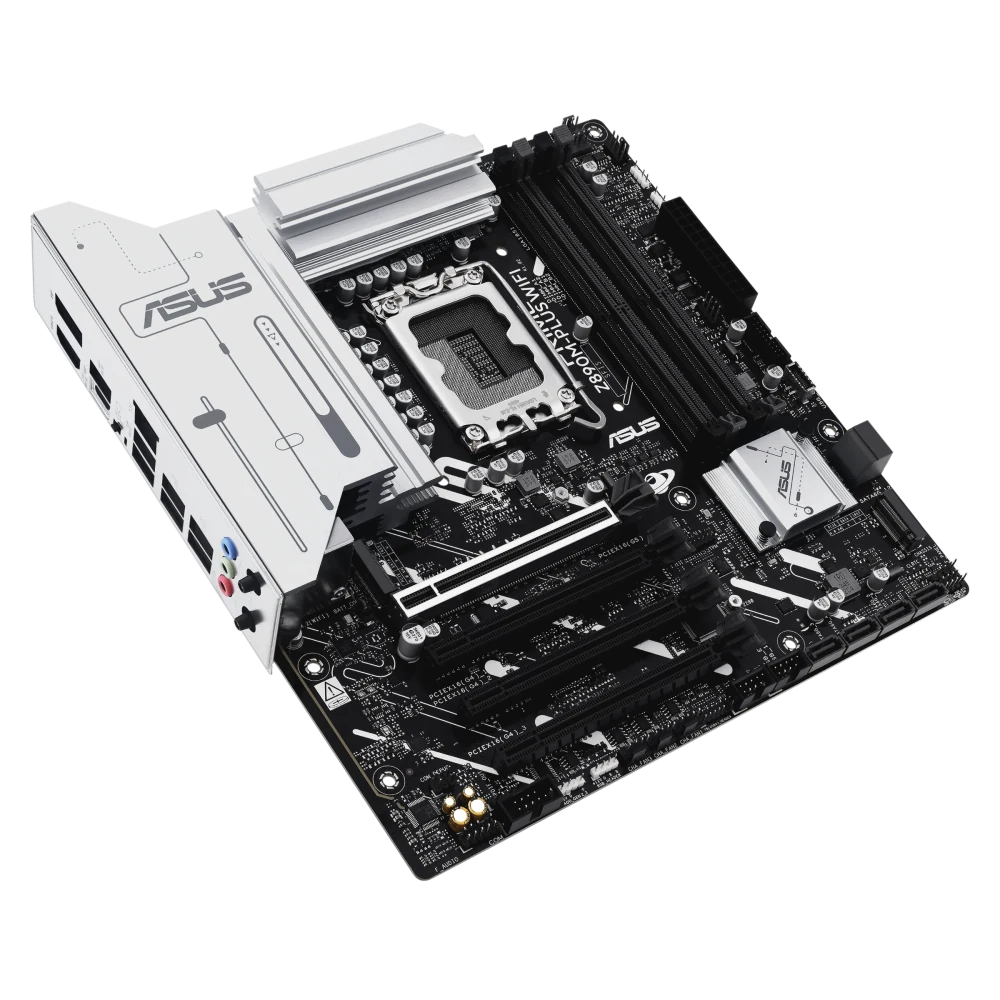

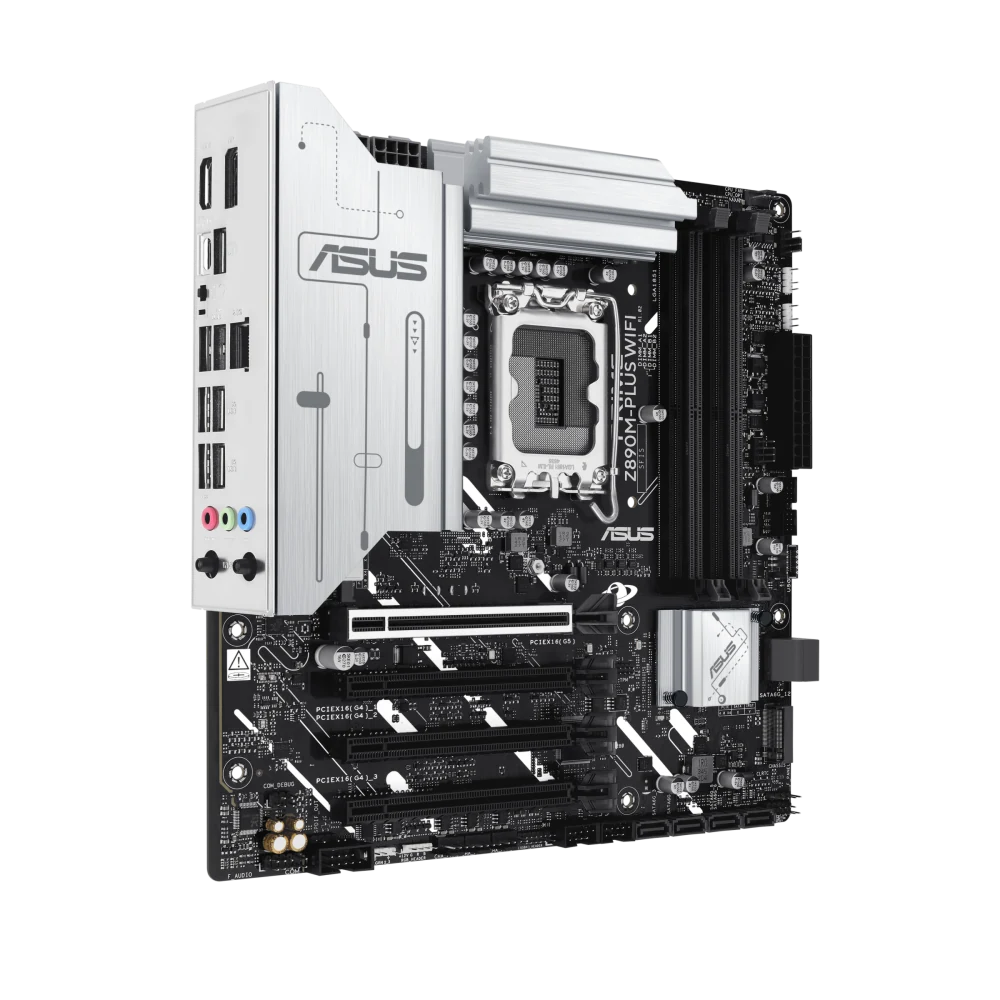

ASUS Prime Z890M-PLUS WiFi CSM

Name: ASUS Prime Z890M-PLUS WiFi CSM
Brand: ASUS
SKU: ASUS-asus-prime-z890m-plus-wifi-csm
Price: 94999 PKR
Availability: InStock

Rs 94,999

In stock

1 year local warranty

SKU: ASUS-asus-prime-z890m-plus-wifi-csm
Category: Motherboards

Description

The ASUS Prime Z890M-PLUS WiFi CSM brings Intel Core Ultra (Series 2) performance into a compact microATX form factor, pairing DDR5, PCIe 5.0 and Wi-Fi 7 with the stability guarantees of the ASUS Corporate Stable Model program and ASUS Control Center Express management software.

Key Features

Intel Z890 chipset on LGA1851 for Intel Core Ultra Processors (Series 2)
Four DDR5 DIMM slots supporting up to 256GB at 8666+MT/s (OC) with XMP
PCIe 5.0 x16 slot and a PCIe 5.0 x4 M.2 slot for the latest GPUs and NVMe drives
Three M.2 slots and six SATA 6Gb/s ports for flexible storage
Wi-Fi 7 and Bluetooth v5.4 alongside Realtek 2.5Gb Ethernet with LANGuard
Rear USB 20Gbps Type-C with DisplayPort Alt Mode for fast data and display output
CSM program with ASUS Control Center Express for reliable business and DIY builds

A dependable, feature-complete microATX board for Intel Core Ultra builders who value stability and modern connectivity.

Specifications

Spec	Value
CPU Socket	Intel LGA1851 (Core Ultra Processors Series 2)
Chipset	Intel Z890
Form Factor	microATX (9.6" x 9.6")
Memory	4 x DIMM DDR5, up to 256GB, 8666+MT/s (OC), non-ECC un-buffered, XMP
Expansion	1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 2 x PCIe 4.0 x16 (x1 mode)
Storage	3 x M.2 (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4), 6 x SATA 6Gb/s
LAN	1 x Realtek 2.5Gb Ethernet with LANGuard
Wireless	Wi-Fi 7 (802.11be), Bluetooth v5.4
Rear USB	1 x USB 20Gbps Type-C (DP Alt), 1 x USB 10Gbps, 4 x USB 5Gbps, 2 x USB 2.0
Video Output	1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI 2.1 (4K@60Hz), USB-C up to 4K@120Hz
Audio	Realtek 7.1 Surround Sound HD Codec, 24-bit/192kHz
