Hover to zoom · click for full imageAM5 X870 ATX motherboard with 16+2+2 power stages, 4x DDR5, four M.2 slots, dual USB4 and WiFi 7.
The ASUS ROG Strix X870-F Gaming WiFi is an AM5 ATX motherboard on AMD's X870 chipset, built to run Ryzen 9000, 8000 and 7000 processors hard. Its 16+2+2 power stage design, dual USB4 ports and WiFi 7 make it a strong base for high-end gaming and creator builds that want flagship features without moving up to X870E.
An all-black design with RGB lighting on the I/O cover makes it a clean centrepiece for a premium AM5 build.
| Spec | Value |
|---|---|
| Model | ROG STRIX X870-F GAMING WIFI |
| Chipset | AMD X870 |
| Socket | AM5 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series desktop processors |
| Power Design | 16 (110A) + 2 (110A) + 2 (80A) power stages |
| Memory | 4 x DDR5 DIMM, dual channel, up to 256GB, ECC and non-ECC unbuffered |
| Memory Speed | Up to 8000+ MT/s (OC), AMD EXPO and ASUS AEMP support |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU, with Ryzen 9000/7000; PCIe 4.0 x8/x4 with Ryzen 8000), 1 x PCIe 4.0 x16 slot in x4 mode (chipset) |
| M.2 Slots | 4 x M.2 (M key): M.2_1 and M.2_2 PCIe 5.0 x4 (CPU, with Ryzen 9000/7000), M.2_3 and M.2_4 PCIe 4.0 x4 (chipset). M.2_2 supports up to 22110 and shares lanes with the PCIe 5.0 x16 slot (x8 when used); using M.2_3 disables the PCIe 4.0 x16 slot; M.2_2 is disabled with Ryzen 8000 |
| SATA | 2 x SATA 6Gb/s |
| RAID | PCIe RAID 0/1/5/10 (RAID 5 with Ryzen 9000), SATA RAID 0/1 |
| Display Outputs | 1 x DisplayPort 1.4, 1 x HDMI 2.1, 2 x USB4 Type-C with DisplayPort Alt Mode (CPU dependent) |
| LAN | Intel 2.5Gb Ethernet |
| Wireless | WiFi 7 (802.11be) 2x2, 2.4/5/6GHz, up to 320MHz |
| Bluetooth | Bluetooth 5.4 |

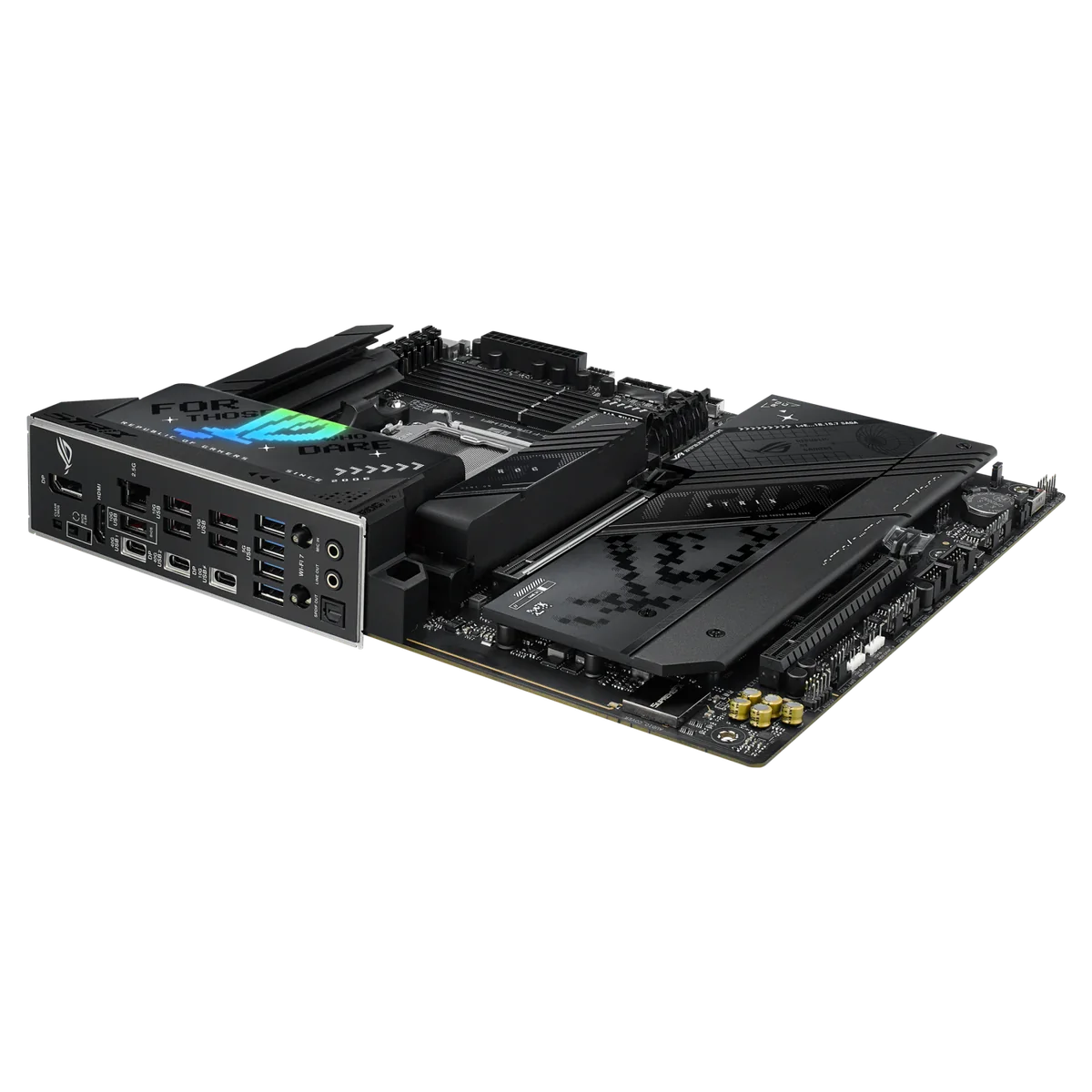

| Rear USB | 2 x USB4 40Gbps Type-C, 6 x USB 10Gbps (5 x Type-A, 1 x Type-C with up to 30W PD), 4 x USB 5Gbps Type-A |
| Front USB Headers | 1 x USB 20Gbps Type-C, 2 x USB 5Gbps (4 ports), 2 x USB 2.0 (4 ports) |
| Audio | ROG SupremeFX 7.1, Realtek ALC4080 codec, Savitech SV3H712 amplifier, optical S/PDIF out |
| Fan Headers | 1 x CPU, 1 x CPU OPT, 1 x AIO pump, 5 x chassis (all 4-pin) |
| RGB | Aura Sync, 3 x Addressable Gen 2 headers |
| Power Connectors | 1 x 24-pin ATX, 2 x 8-pin CPU |
| Rear Buttons | BIOS FlashBack, Clear CMOS |
| BIOS | 256Mb flash ROM, UEFI AMI BIOS |
| Form Factor | ATX, 30.5 x 24.4 cm (12 x 9.6 in) |

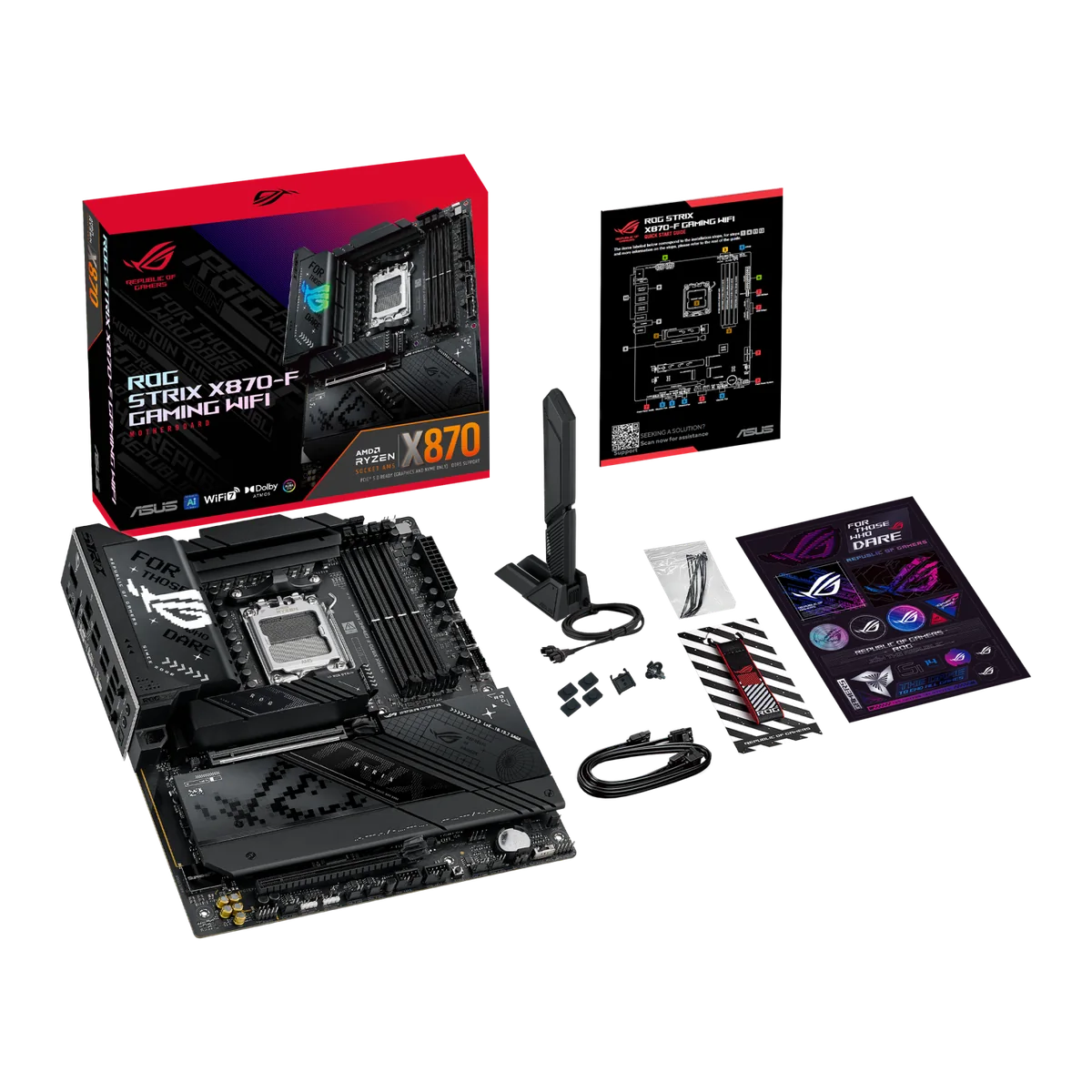

| In the Box | 2 x SATA cables, WiFi Q-Antenna, M.2 Q-Latch and Q-Slide kits, M.2 rubber mounts, M.2 22110 thermal pad, cable ties, ROG key chain, stickers, quick start guide |
