Hover to zoom · click for full imageTop-mount 360mm AIO with ultra-short 160mm hidden tubing, a black-and-gold design and three high-flow fans. 350W TDP. Top installation only.

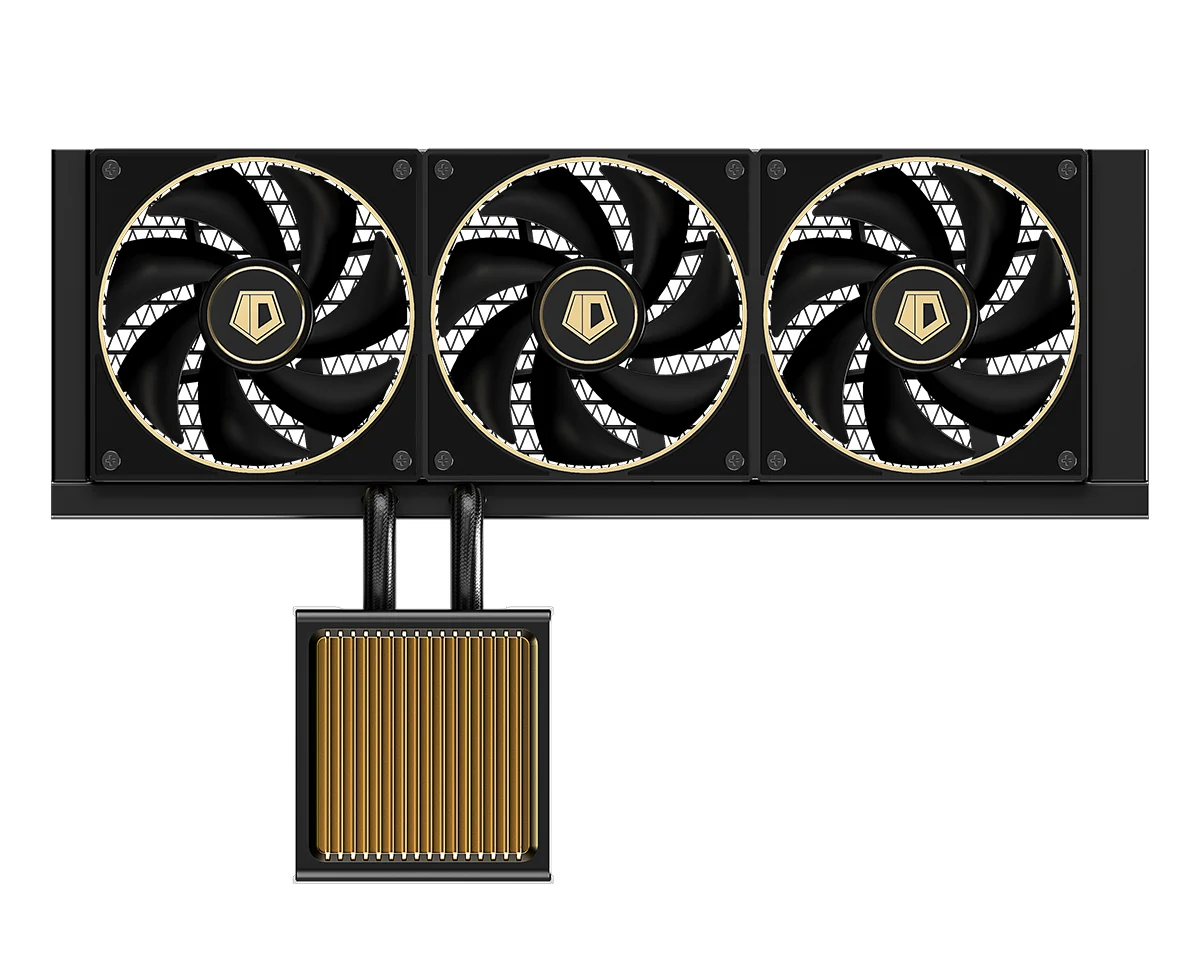

The ID-COOLING DX360 GDL is a design-led 360mm AIO with a sophisticated black-and-gold theme: golden stripes across the pump cover and gold ring accents on the fans give it a premium, understated look without RGB.
Its signature trick is ultra-short 160mm tubing that tucks the hoses almost completely out of sight for an exceptionally clean installation. Because of this hidden-tubing design, the DX360 GDL is intended for top-mount installation only - check that your case has 55-70mm of clearance above the I/O area and room for the 134mm-wide radiator before buying.

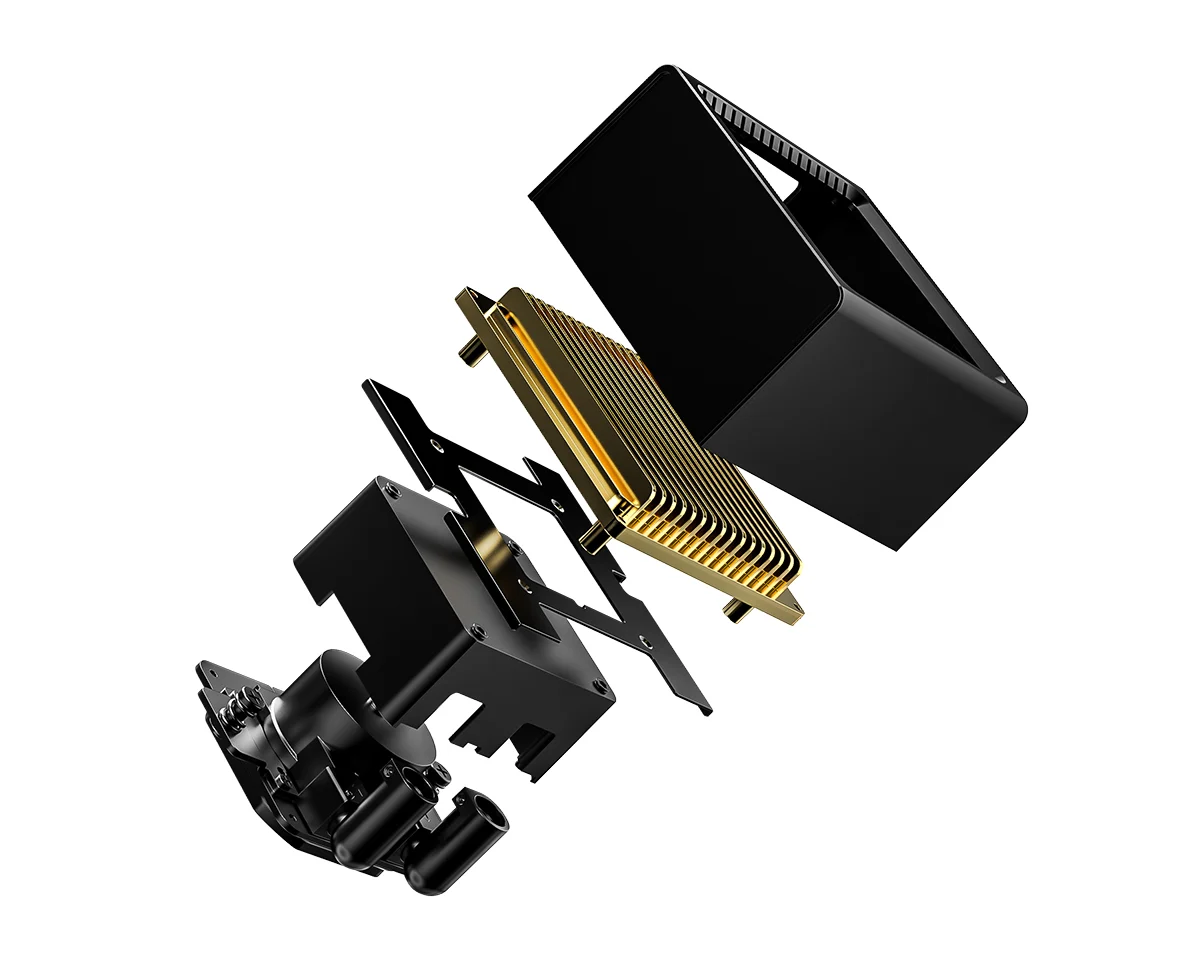

Three AF-127-GDL fans push a strong 78 CFM at 2.68 mmH2O, paired with a 7th-generation ceramic-bearing pump, a large copper cold plate and ID-COOLING's simplified X25 universal mounting system. Rated to 350W, it keeps high-end Intel and AMD CPUs cool while looking like a custom loop - a distinctive choice for a premium Pakistan build.

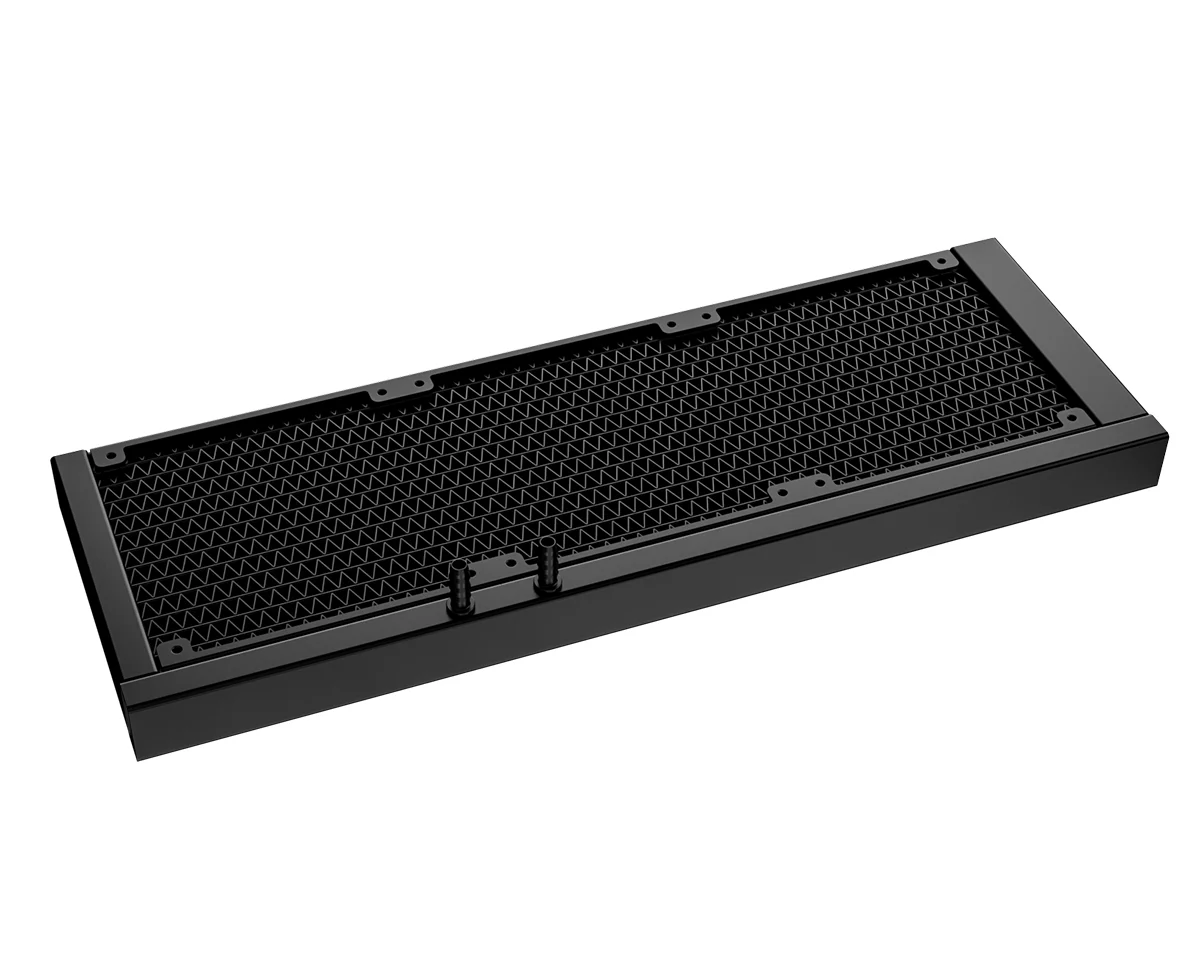

Designed for BTF / back-connector motherboards. The radiator is an extra-wide 134mm (wider than a standard model) with roughly 82g more copper for added heat dissipation, and the ultra-short ~160mm tubing keeps the hoses hidden for a clean, custom-loop look.
| Specification | Detail |
|---|---|
| Radiator Size | 360mm |
| Radiator Dimensions | 396 x 134 x 27mm, Aluminium |
| Design | Black & Gold, non-RGB |
| Installation | Top-mount only (ultra-short tubing) |
| Compatibility | Intel LGA1851 / 1700 / 1200 / 115X; AMD AM5 / AM4 |
| TDP | 350W |
| Fans | AF-127-GDL, 120 x 120 x 27mm, 3 pcs |
| Fan Speed | 500 ~ 2000 ±10% RPM (PWM) |
| Max Airflow | 78 CFM |
| Max Static Pressure | 2.68 mmH2O |
| Fan Noise | 29.9 dB(A) max |
| Fan Bearing | Fluid Dynamic Bearing |
| Pump Speed | 2900 RPM ±10% |
| Pump Bearing | Ceramic Bearing |
| Pump Noise | 25 dB(A) |
| Water Block | 100 x 94 x 69mm, Copper cold plate |
| Tubing | Premium Sleeved, 160mm (ultra-short) |
| Mounting | X25 universal (Intel + AMD) |
