Hover to zoom · click for full image7-port SATA-powered PWM fan hub that drives up to seven fans from one header, with shared PWM speed control.

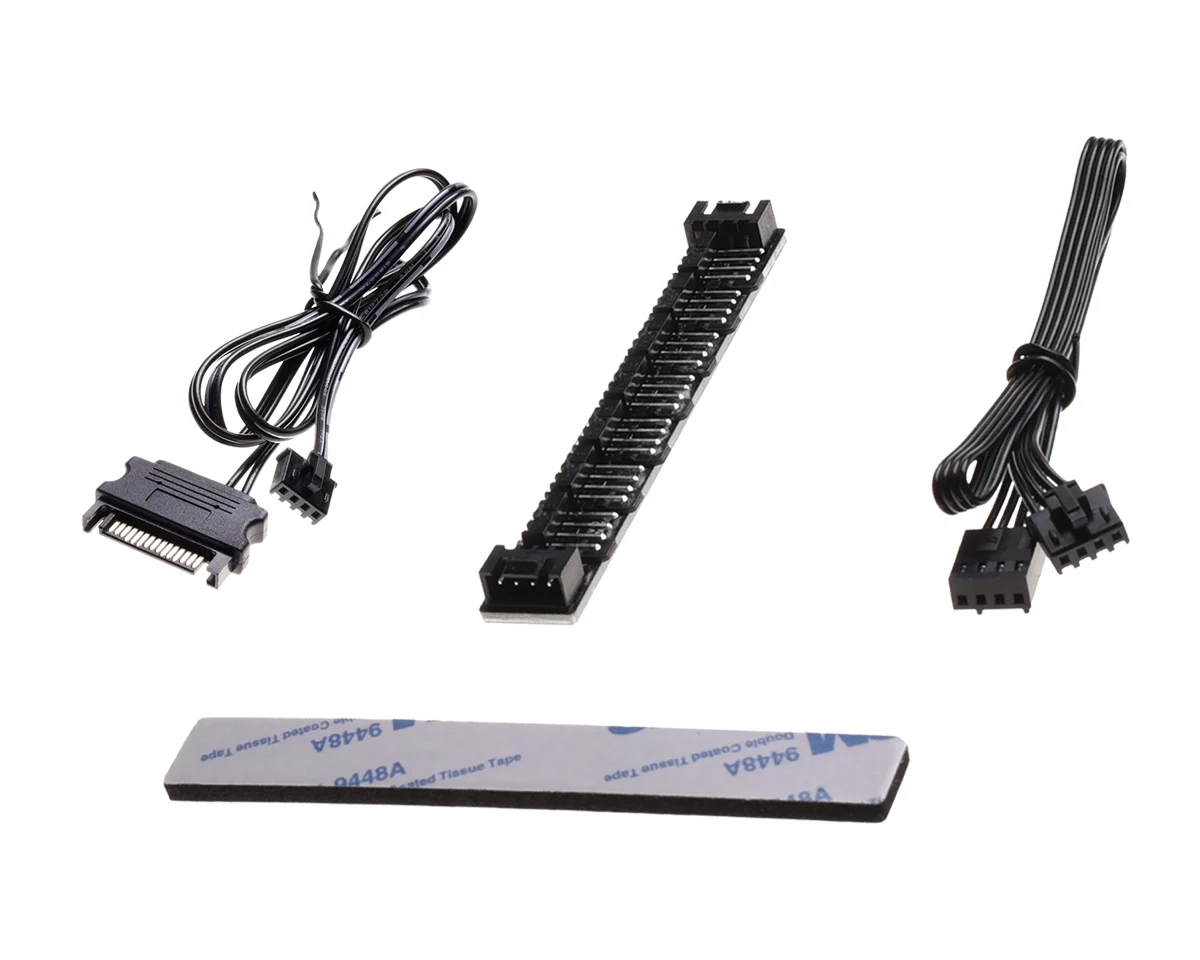

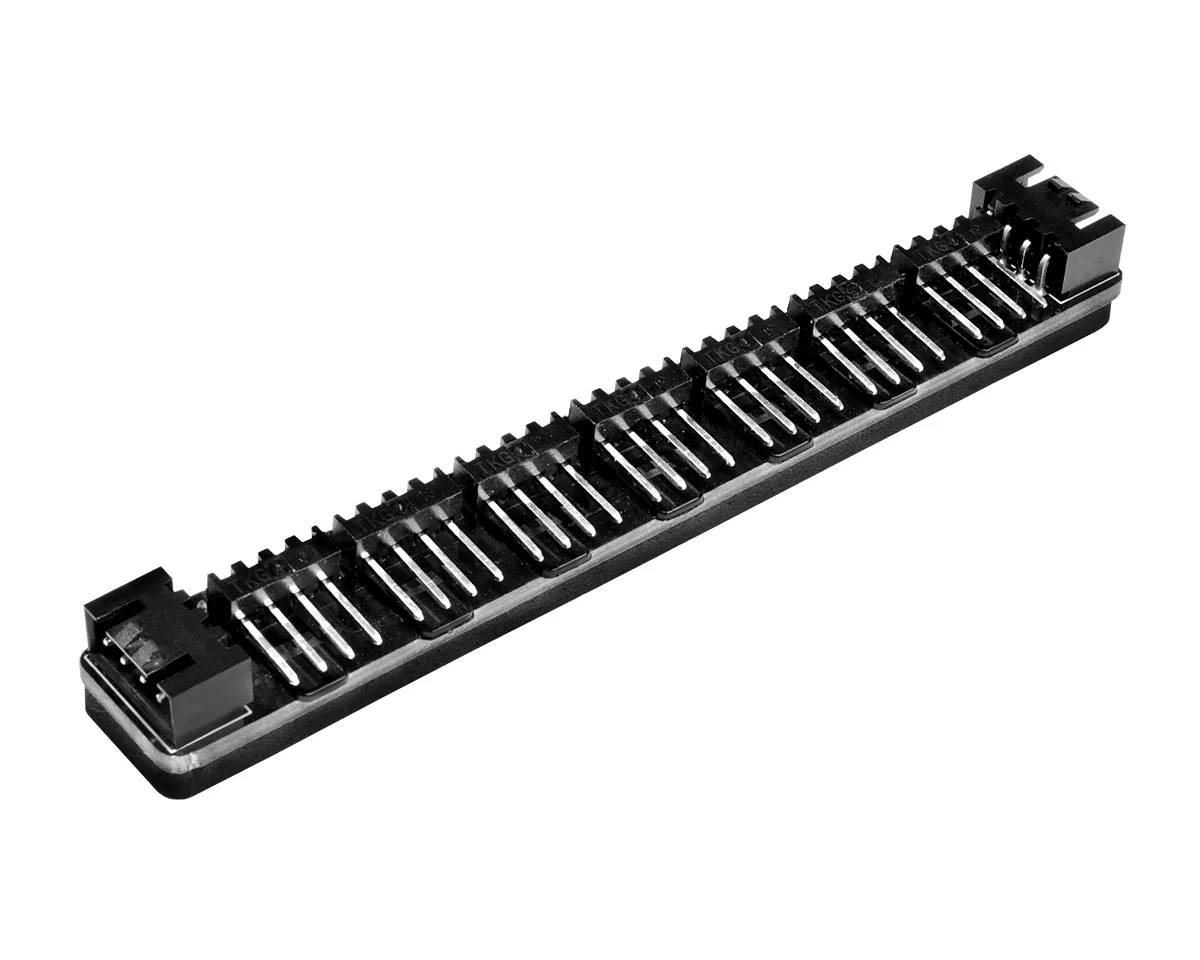

The ID-COOLING FH-07 is a 7-port PWM fan hub that lets you power and control up to seven fans from a single motherboard PWM header. Drawing dedicated 12V power from a SATA connector, it comfortably runs a full case of fans without overloading the board.
All fans share the PWM signal from the hub's control input, so they ramp together with your fan curve; fan port 1 reports RPM back to the system. It supports 4-pin PWM and 3-pin fans (3-pin fans run at full speed). Note that the FH-07 is a PWM-only hub - it does not control ARGB lighting (pair it with the FS-04 ARGB or RC-ARGB for lighting).
| Specification | Detail |
|---|---|
| Type | PWM Fan Hub |
| Ports | 7 |
| Power Input | SATA (12V) |
| Control Input | 4-pin PWM |
| Rated Current | 4.5A (6A max) |
| Fan Support | 4-pin PWM and 3-pin |
| RPM Report | Fan port 1 |
| Lighting | None (PWM-only, not an ARGB hub) |
