MSI PRO B760M-E DDR5

Name: MSI PRO B760M-E DDR5
Brand: MSI
SKU: MSI-PRO-B760M-E-DDR5
Price: 29500 PKR
Availability: InStock

Rs 29,500

In stock

1 year local warranty

SKU: MSI-PRO-B760M-E-DDR5
Category: Motherboards

Description

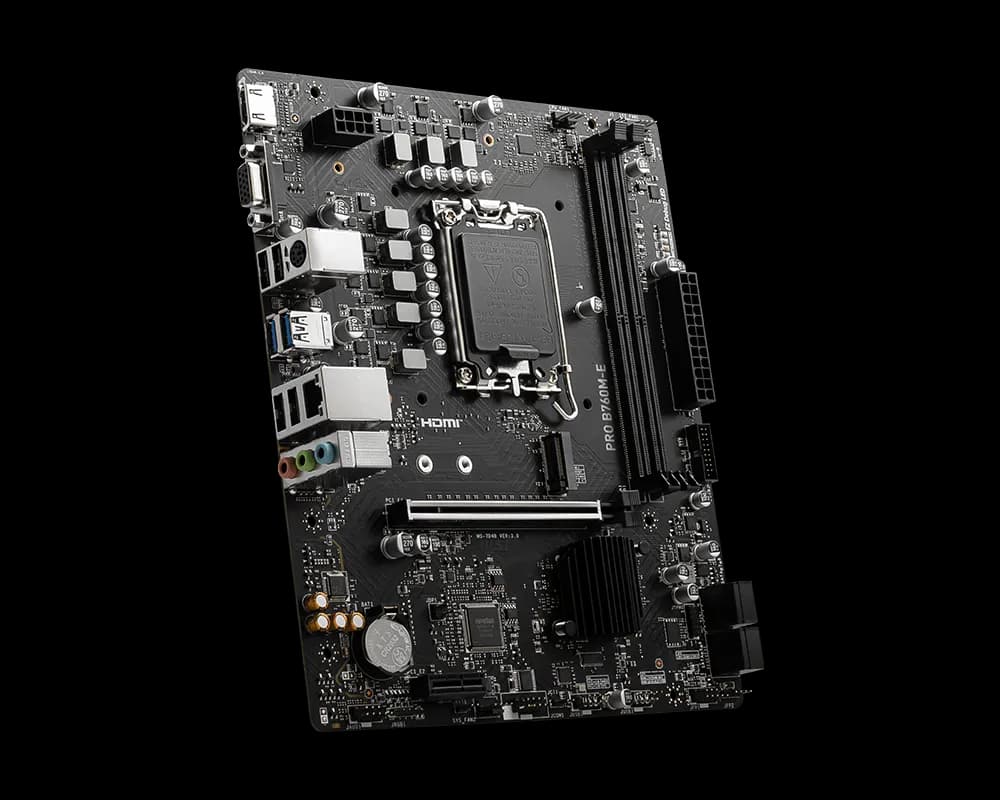

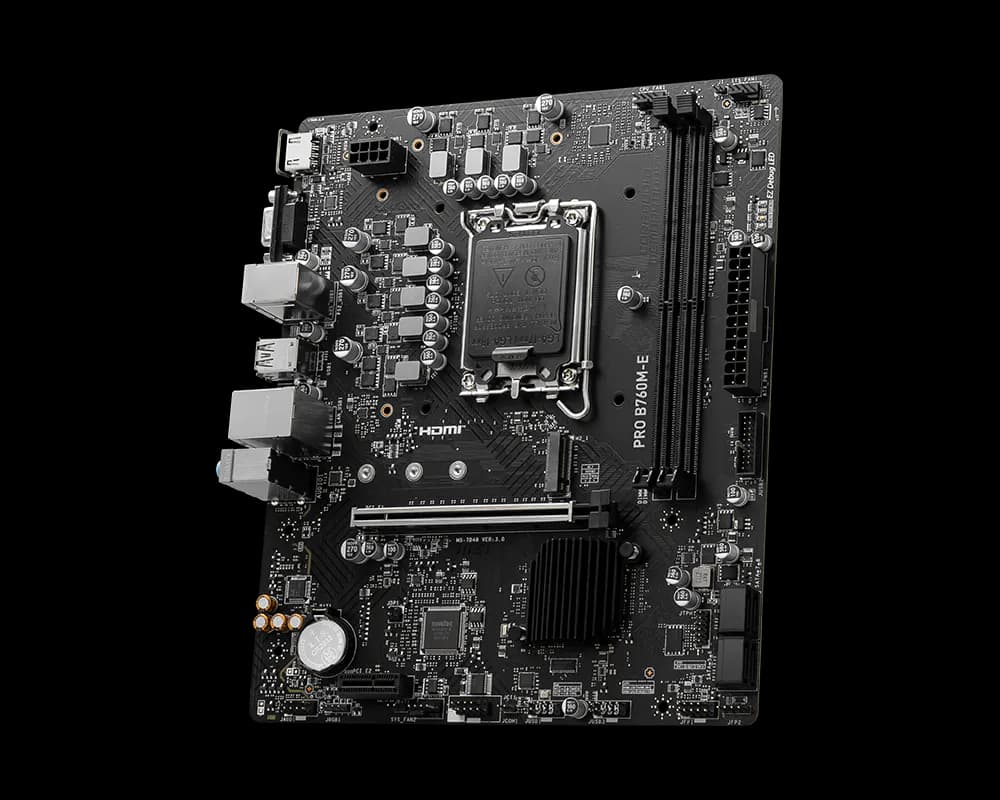

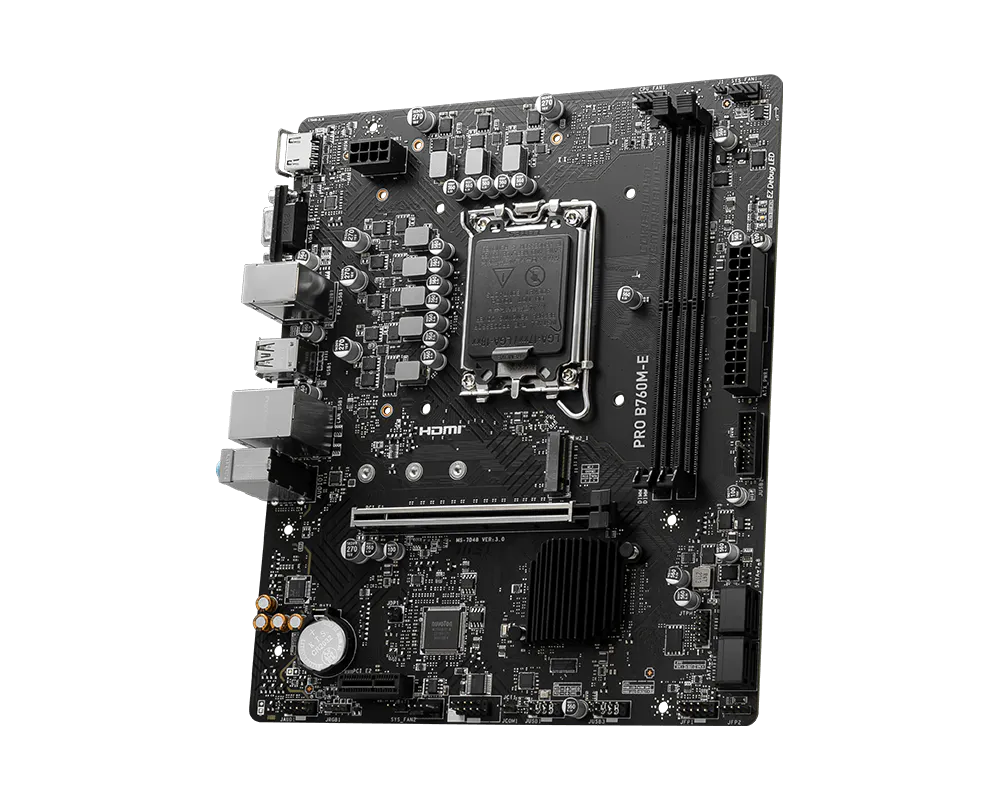

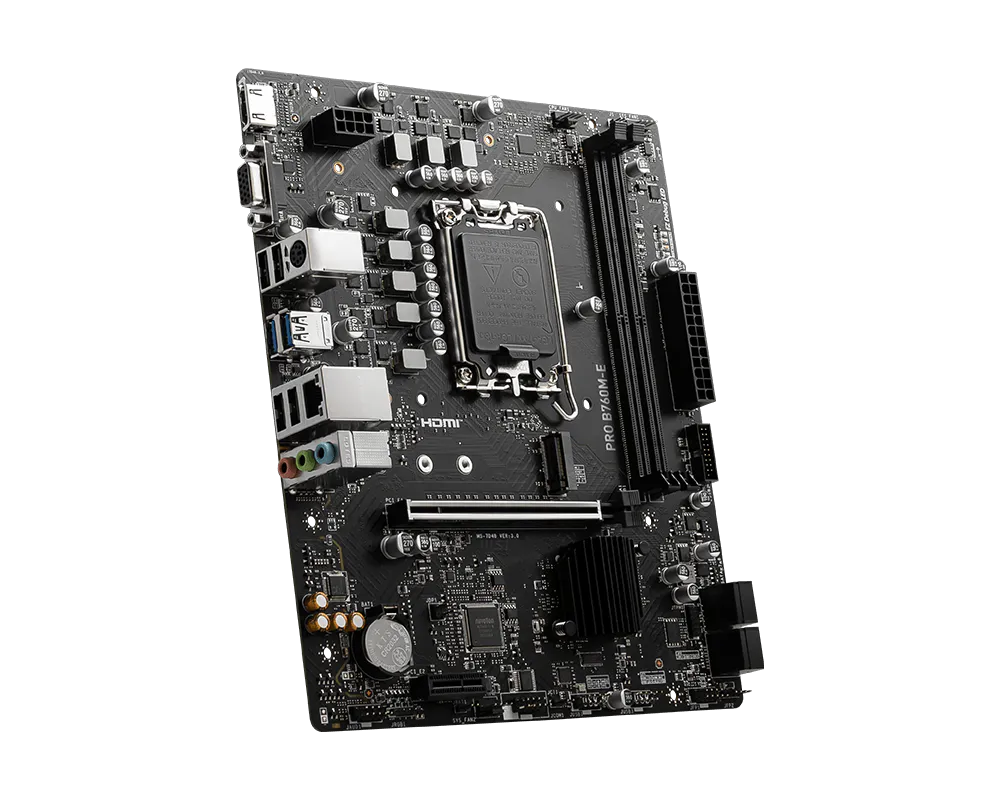

The MSI PRO B760M-E DDR5 is a business oriented micro-ATX motherboard built on the Intel B760 chipset with DDR5 memory and a Lightning Gen4 M.2 slot. It is a strong base for mainstream Intel gaming and productivity systems on DDR5.

Key Features

LGA 1700 socket for Intel Core 12th, 13th and 14th Gen, Pentium Gold and Celeron processors
Two DDR5 DIMM slots supporting up to 96GB, rated to 6400 MHz and above with overclocking
PCIe 4.0 x16 slot with Steel Armor plus a PCIe 3.0 x1 slot
Lightning Gen4 M.2 slot (PCIe 4.0 x4) for fast NVMe SSDs
Four SATA 6Gb/s ports for extra storage
Realtek Gigabit LAN and ALC897 7.1 channel audio

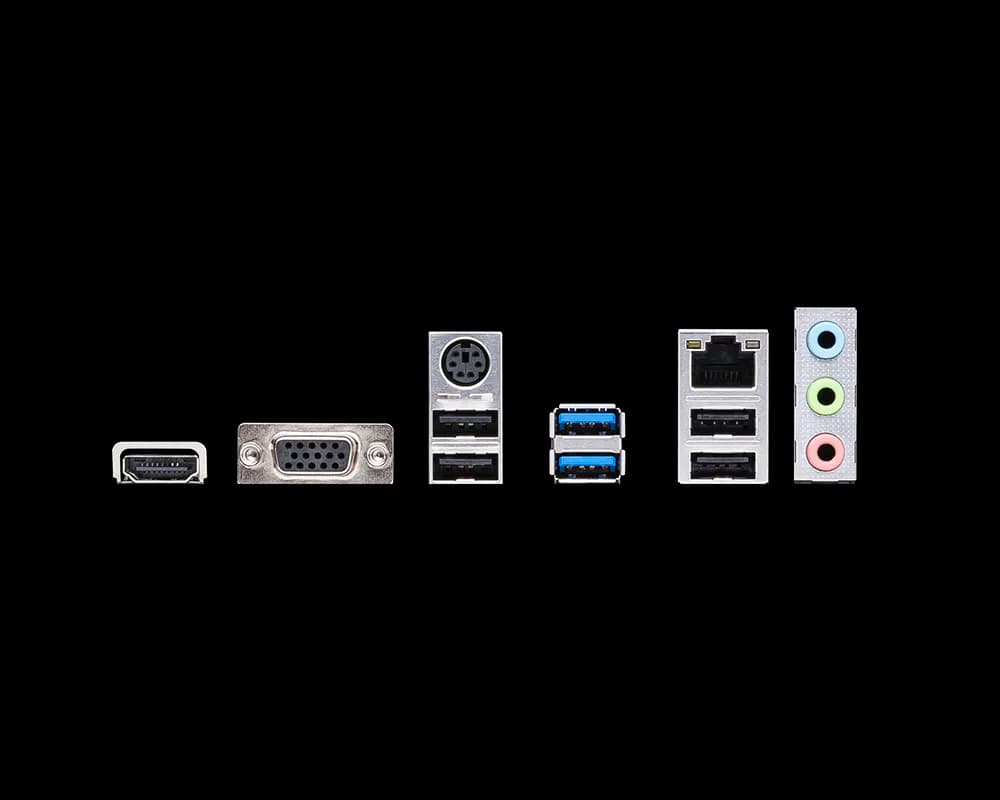

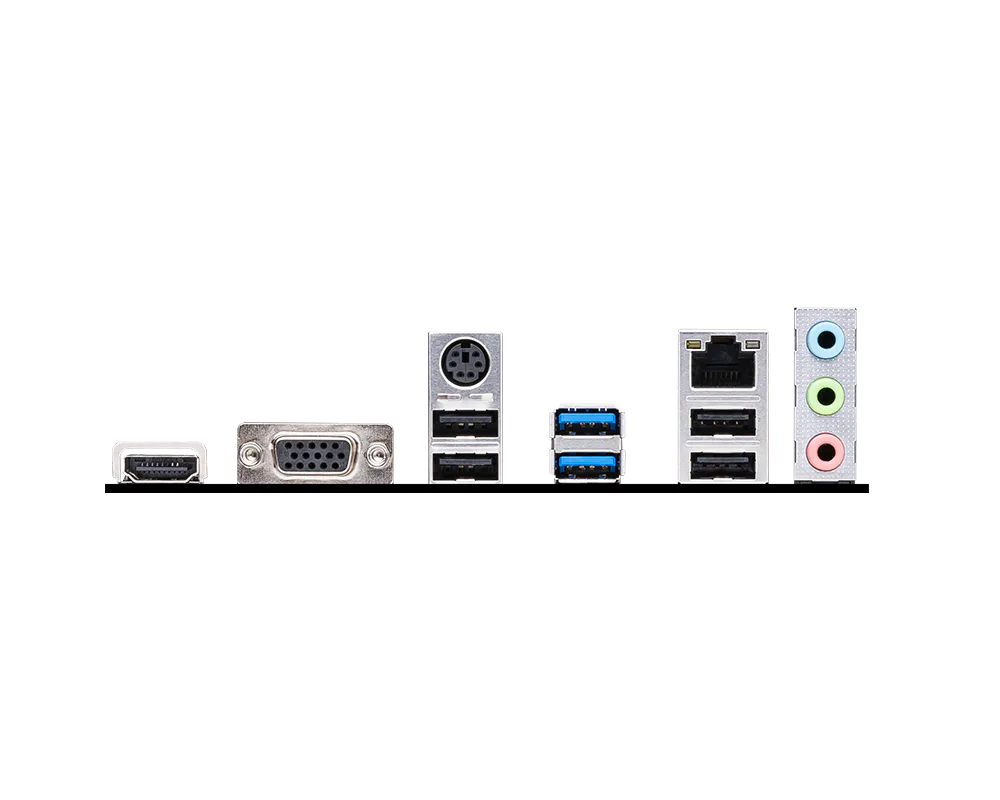

HDMI and VGA outputs plus USB 5Gbps connectivity

A well rounded B760 DDR5 board for mainstream Intel builds.

Specifications

Spec	Value
Type	Micro-ATX motherboard
Socket	LGA 1700
Chipset	Intel B760
CPU support	Intel Core 12th, 13th, 14th Gen
Memory	2x DDR5, up to 96GB, 6400+ MHz (OC)
Graphics slot	1x PCIe 4.0 x16
M.2	1x PCIe 4.0 x4
SATA	4x SATA 6Gb/s
LAN	Realtek Gigabit
Audio	Realtek ALC897 (7.1 channel)
Display	HDMI, VGA
