PXN VD4 Direct Drive Bundle

Name: PXN VD4 Direct Drive Bundle
Brand: PXN
SKU: PXN-VD4-DIRECT-DRIVE-BUNDLE
Price: 95000 PKR
Availability: InStock

Direct drive wheel bundle with a 4Nm VD4 servo base, 24-bit encoder, W AS 280mm wheel, PD HM Hall effect pedals and a Z8 desk clamp.

Rs 95,000

In stock

1 year local warranty

SKU: PXN-VD4-DIRECT-DRIVE-BUNDLE
Category: Sim Racing & Controllers

Description

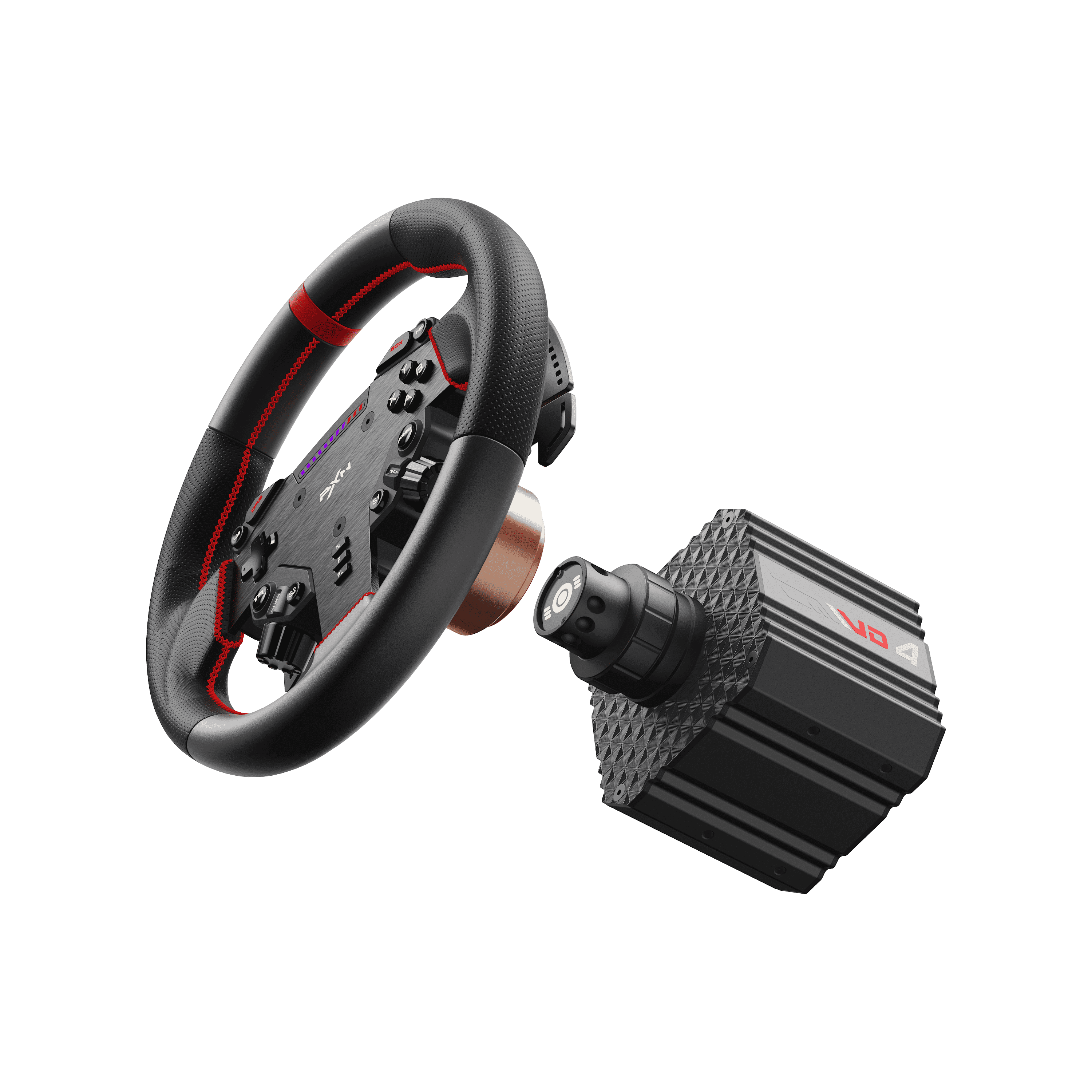

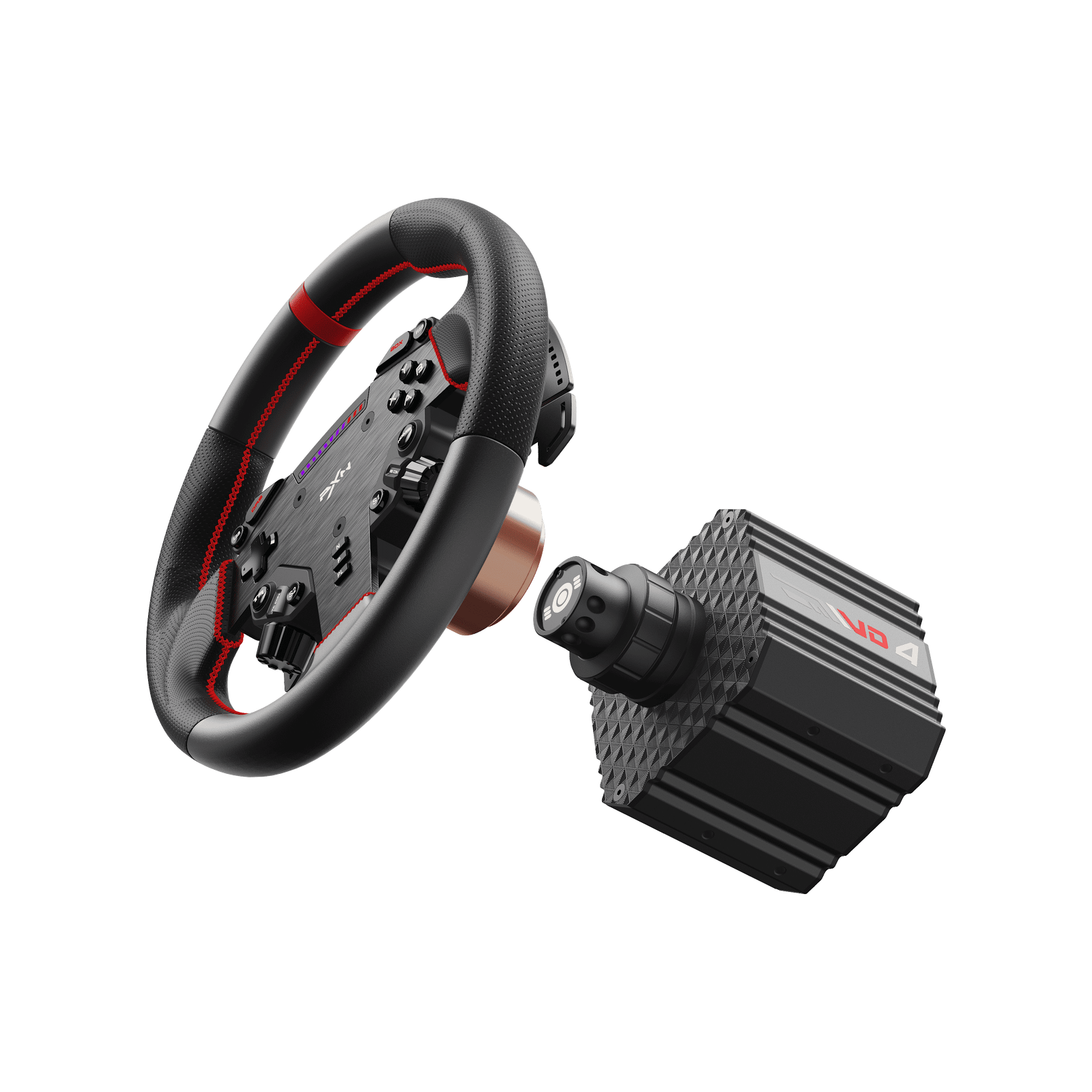

The PXN VD4 Direct Drive Bundle is a complete entry into direct drive sim racing, built around a 4Nm servo wheel base. It pairs the VD4 base with the W AS wheel, PD HM pedals and a desk clamp, giving PC drivers a ready to race package with the strength and detail that only direct drive can deliver.

Key Features

VD4 direct drive base with a 20 pole low inertia servo motor rated at 4Nm continuous and 5Nm peak torque
24 bit magnetic encoder, multi core processor and Sense plus algorithm for detailed force feedback
Aluminum chassis with a smart thermal control system for stable output during long sessions
W AS racing wheel with a 280mm aluminum alloy frame wrapped in microfiber leather
PD HM brake and throttle pedal set with Hall effect sensors and adjustable positioning
Z8 table clamp for a secure desk mount
PXN software tuning for force feedback, steering angle and button mapping

The VD4 bundle is a strong first step into direct drive for iRacing, Assetto Corsa and the F1 series on PC.

Specifications

Spec	Value
Type	Direct drive racing wheel bundle
Base	VD4, 20 pole servo motor
Torque	4Nm continuous, 5Nm peak
Encoder	24 bit magnetic
Wheel	W AS, 280mm aluminum alloy, microfiber leather
Pedals	PD HM brake and throttle, Hall effect
Mount	Z8 table clamp
Compatibility	PC (Windows 7 to 11)
Connection	Wired USB (wheel base connects to the PC by USB-C cable; PD HM pedals connect by their own USB cable)
