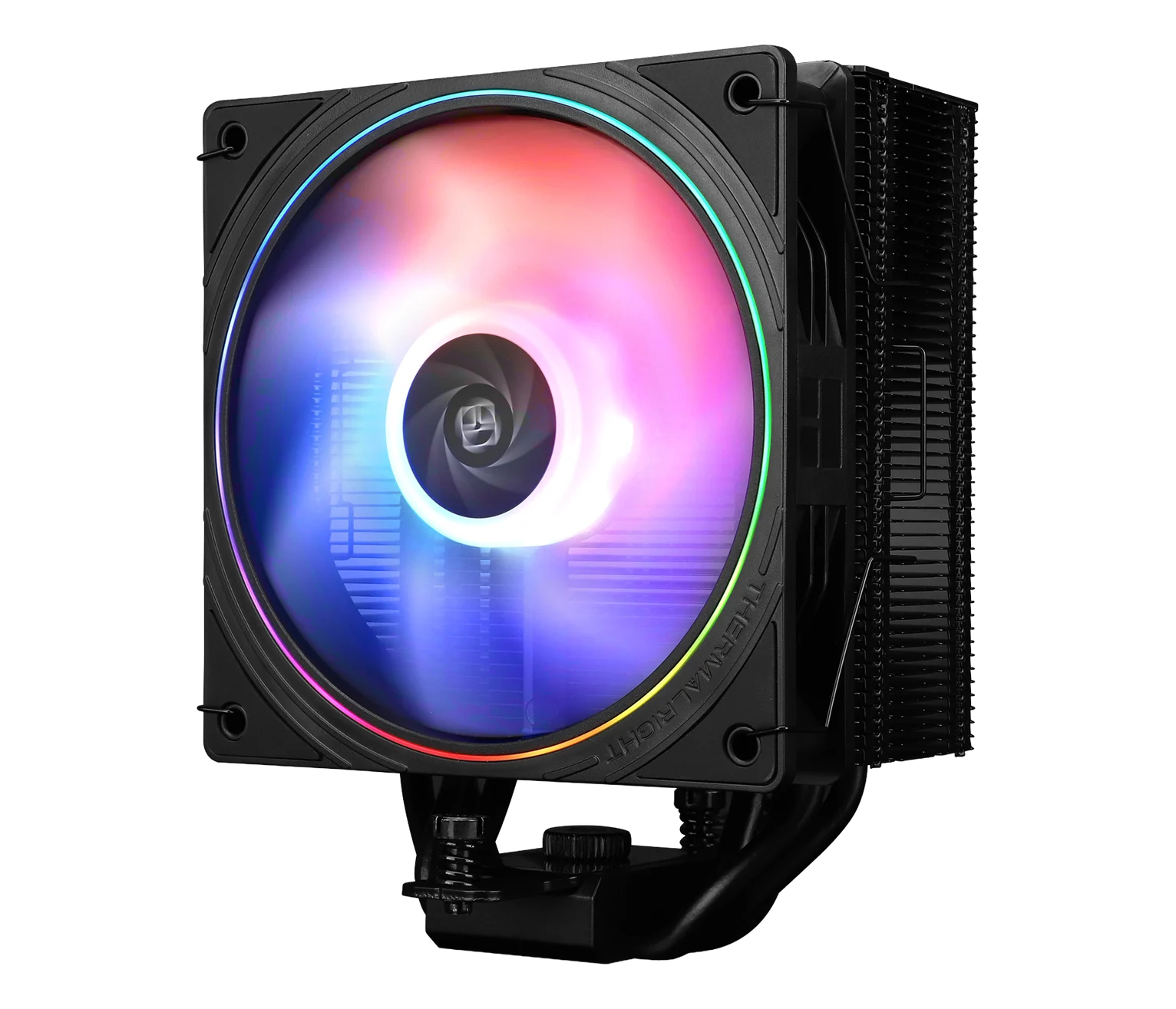

ThermalRight Assassin Spirit 120 EVO ARGB Black with ring-lit ARGB fan and black heat pipes
Hover to zoom · click for full image

ThermalRight TR 120 Assassin Spirit EVO ARGB

Single-tower CPU air cooler with a 2000 RPM ring-lit ARGB fan and four 6mm direct-contact heat pipes, 156mm tall, in Black or White for AM4, AM5 and Intel LGA115x to LGA1851.

Rs 7,500
Out of stock

SKU: TR-TR-120-ASSASSIN-SPIRIT-EVO-ARGB-BLACK

Colour · Black

1
1 year local warranty
Price in Pakistan
From Rs 7,500
Brand
ThermalRight
Category
Air CPU Coolers

Description

ThermalRight Assassin Spirit 120 EVO ARGB (AS120 EVO) is a single-tower CPU air cooler built around a fast fan: its TL-S12-S spins up to 2000 RPM and moves 68.9 CFM, more than the 1550 RPM fans on the Assassin King 120 SE and Assassin X 120 Refined SE. Four 6mm heat pipes sit directly on the CPU, and the fan carries an ARGB ring around its frame edge plus a lit hub. In Pakistan it suits blacked-out builds in its all-black version and light-themed builds in White.

Key Features

  • 2000 RPM fan: 68.9 CFM airflow and 2.21 mmH2O static pressure, PWM controlled, rated 28.2 dBA at full speed.
  • Four 6mm heat pipes: AGHP fourth-generation design, flattened at the base for direct contact with the CPU.
  • Size: the heatsink measures 120 x 48 x 156 mm and weighs 525 g without the fan.
  • Ring-lit ARGB fan: 3-pin 5V ARGB plug plus a 4-pin PWM plug, so it works with any 5V ARGB header or controller.
  • S-FDB bearing: Thermalright's fluid dynamic bearing for a smooth, long-running fan.
  • Styled top cover: a patterned top plate with the Thermalright logo caps the fin stack.

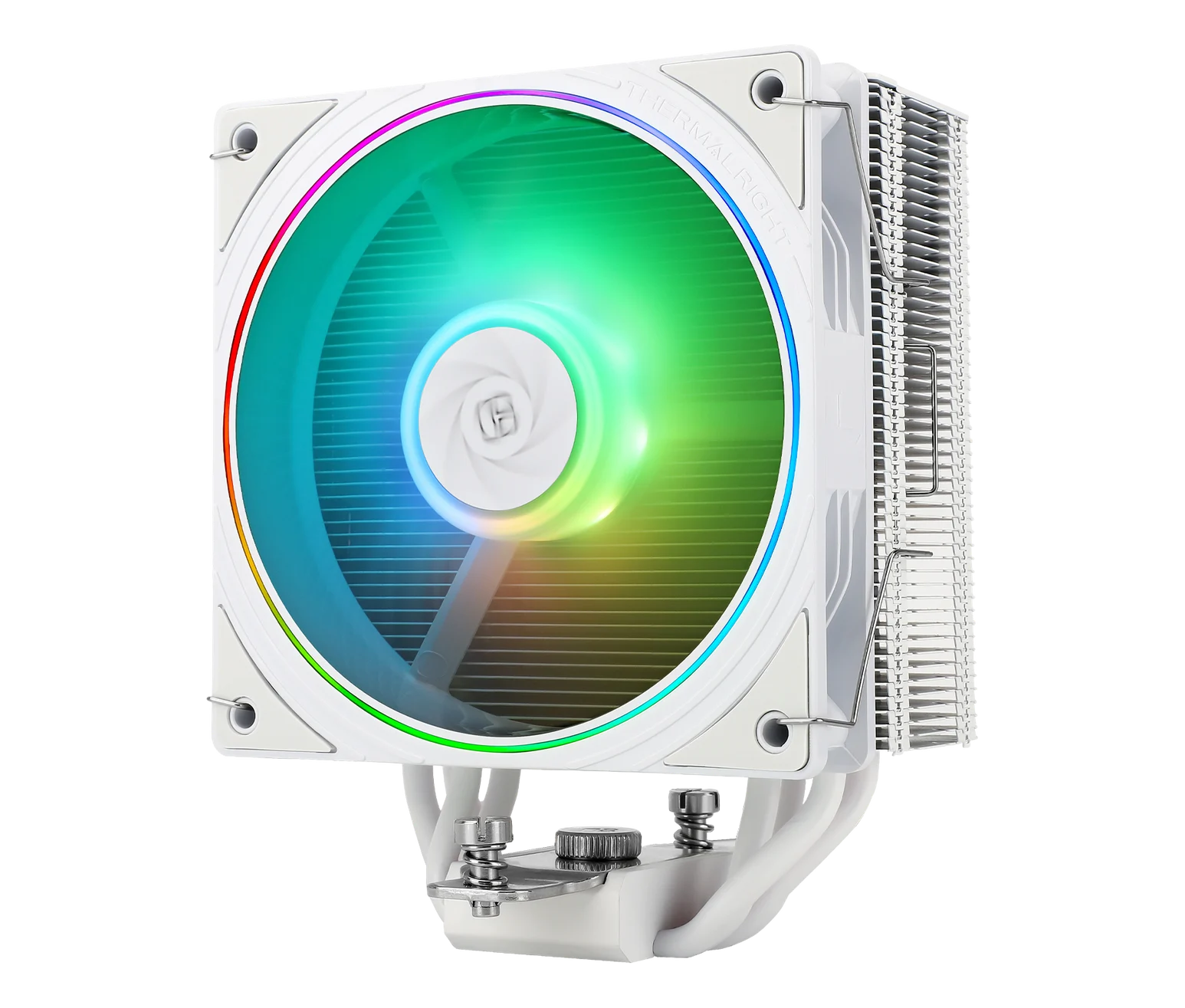

  • Two finishes: Black with black fins and black heat pipes; White with the TL-S12W-S fan and white heat pipes.
  • Sockets: Intel LGA1851, LGA1700, LGA1200 and LGA115x plus AMD AM5 and AM4.

Who It's For

Choose the Assassin Spirit 120 EVO ARGB if you want a single-tower cooler with stronger airflow and static pressure through the fins, or a cooler that matches an all-black or white theme. It suits mid-tower gaming builds with more than 156mm of cooler clearance. The trade-off for the faster fan is a higher rated noise level at full speed than the 1550 RPM Assassin models.

Assassin Spirit 120 EVO ARGB vs Assassin X 120 Refined SE ARGB

Both use four 6mm direct-contact heat pipes. The Spirit EVO's fan reaches 2000 RPM, 68.9 CFM and 2.21 mmH2O at a rated 28.2 dBA, on a 156mm tall heatsink. The ThermalRight Assassin X 120 Refined SE ARGB runs a 1550 RPM fan with 66.17 CFM and 1.53 mmH2O at a rated 25.6 dBA, and stands 148mm tall. Pick the Spirit EVO for more airflow and the ring-lit fan; pick the Assassin X for a lower noise ceiling and 8mm less height.

Frequently Asked Questions

Is the Assassin Spirit 120 EVO ARGB loud?

Thermalright rates the fan at 28.2 dBA at its 2000 RPM maximum. Because it is a PWM fan, the motherboard slows it down when the CPU is lightly loaded, so it runs quieter than that at idle.

What changes between the Black and White versions?

Only the finish. The Black version pairs the TL-S12-S fan with black fins and black heat pipes; the White version uses the white TL-S12W-S fan and white heat pipes. Thermalright lists the same speeds, airflow and size for both.

Which CPU sockets does it support?

Intel LGA115x, LGA1200, LGA1700 and LGA1851, plus AMD AM4 and AM5. On AMD boards you keep the stock backplate and fit the supplied brackets; Intel uses the included backplate.

What is in the box?

The heatsink with its fan, an LGA115x/1700 backplate, Intel/AMD brackets, standoffs for LGA115x/1200, LGA1700 and AM4/AM5, Intel and AMD screws, and thermal paste.

Is there anything to do before installing it?

Yes, peel the protective film off the base before mounting, as the installation guide says. Then apply the thermal paste and screw the cooler down evenly.

Pick Black or White on this page, then order online from OJ Tech for delivery anywhere in Pakistan, from Lahore and Karachi to Multan and Quetta.

Also Known As

The Thermalright Assassin Spirit 120 EVO ARGB is searched as AS120 EVO, AS 120 EVO ARGB, AS120EVO, Assassin Spirit EVO 120 and TR 120 Assassin Spirit EVO, in Black or White. Spellings vary between Thermalright, Thermal Right, Thermalrite and Termalright, and the model is often typed "Asassin Spirit" or "Assasin Spirit 120 EVO". Its fans are listed as TL-S12-S on Black and TL-S12W-S on White. In product terms people call it a single tower CPU cooler, CPU air cooler, ring ARGB cooler, CPU fan or 4 heat pipe cooler.

Best For

The Spirit EVO leads with its fast fan: up to 2000 RPM, 68.9 CFM and 2.21 mmH2O static pressure push air hard through the 156mm fin stack, suiting gaming builds that want more airflow from a single tower. Four 6mm AGHP fourth-generation heat pipes sit directly on the CPU. The ARGB ring around the fan edge and the lit hub, plus a patterned top cover, make it a looker in a glass-panel case, and the colour options matter: Black brings black fins and black heat pipes for blacked-out builds, while White suits light-themed setups. A strong airflow-focused tower cooler for mid-tower gaming PCs in Pakistan.

Compatibility and Setup

Socket support covers Intel LGA115X, LGA1200, LGA1700 and LGA1851 plus AMD AM4 and AM5. The heatsink measures 120 x 48 x 156 mm and weighs 525 g without the fan, so the case needs more than 156 mm of cooler clearance. The fan connects through a 4-pin PWM plug and a 5V 3-pin ARGB plug, so it works with any 5V ARGB header or controller and motherboard RGB software. It spins on an S-FDB bearing.

Specifications

Spec Value
Type Single-tower 120mm air CPU cooler
Height 156 mm
Dimensions 120 x 48 x 156 mm (heatsink)
Weight 525 g (heatsink without fan)
Heatpipes 4 x 6mm (AGHP 4th gen), direct-contact base
Fan 120mm PWM ARGB, TL-S12-S (Black) or TL-S12W-S (White), up to 2000 RPM
Airflow 68.9 CFM (max)
Static pressure 2.21 mmH2O (max)
Noise level 28.2 dBA (max)
Bearing S-FDB
Connectors 4-pin PWM + 5V 3-pin ARGB
Lighting Addressable RGB (ARGB)
Socket support Intel LGA115X, 1200, 1700, 1851; AMD AM4, AM5
