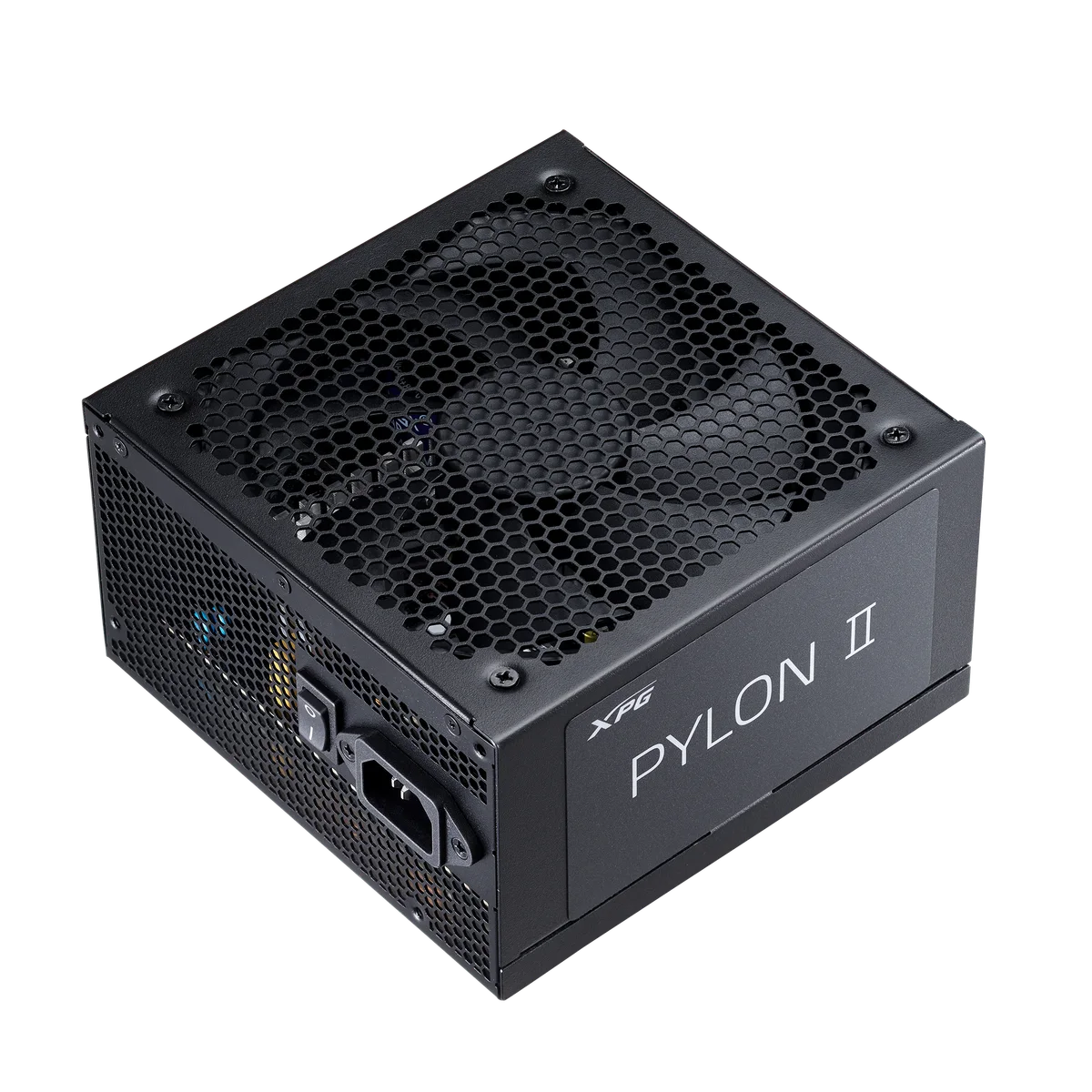

Hover to zoom · click for full imagePylon II 650W is the updated, ATX 3.1 revision of the popular Pylon. It adds a native 12V-2x6 (12+4 pin) PCIe power connector rated at 450W to feed modern GPUs directly, and supports the ATX 3.1 power-excursion spec (up to 235% for 100 microseconds), so it is ready for the latest RTX 50-series cards. A larger 135mm fluid dynamic bearing fan keeps it whisper quiet.
An easy, future-ready upgrade for a current-generation gaming build.
| Spec | Value |
|---|---|
| Type | ATX non-modular PSU |
| Wattage | 650W |
| Efficiency | 80+ Bronze (Cybenetics Silver) |
| Modular | Non-modular |
| ATX Standard | Intel ATX v3.1 (PCIe 5.1, RTX 50 ready) |
| GPU Connector | Native 12V-2x6 (12+4 pin), 450W |
| Fan | 135mm FDB (fluid dynamic bearing), 2300 RPM |
| +12V Rail | 54A (up to 648W) |
| PFC | Active PFC (0.99) |
| Protections | OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP |
| Dimensions | 150 x 150 x 86 mm |
| MTBF | 100,000 hours |
