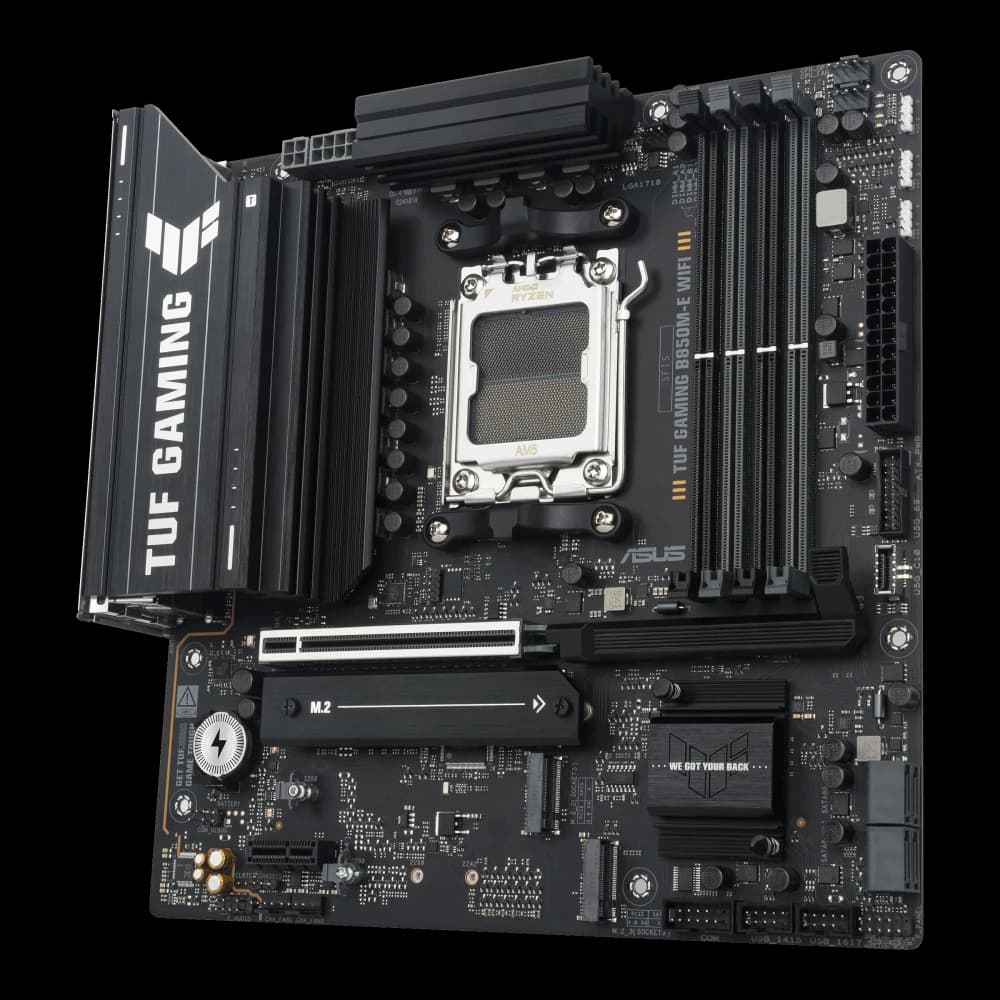

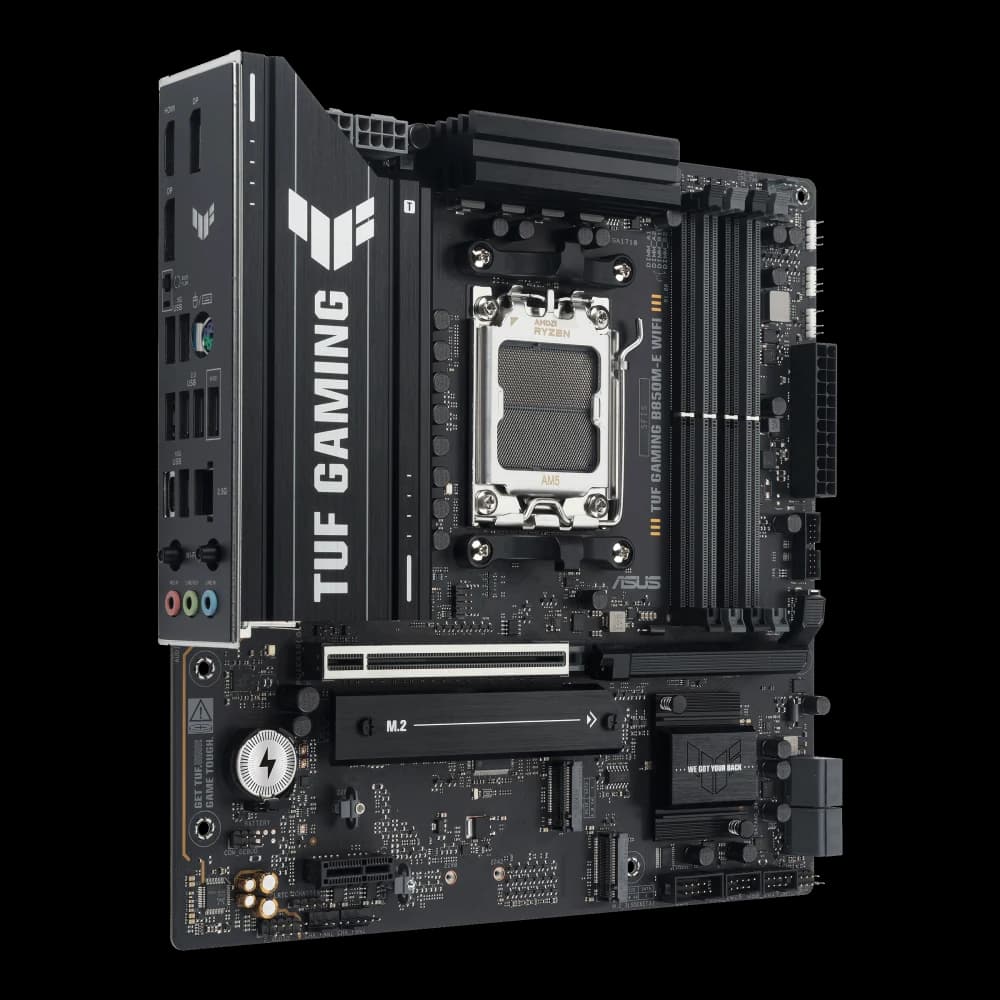

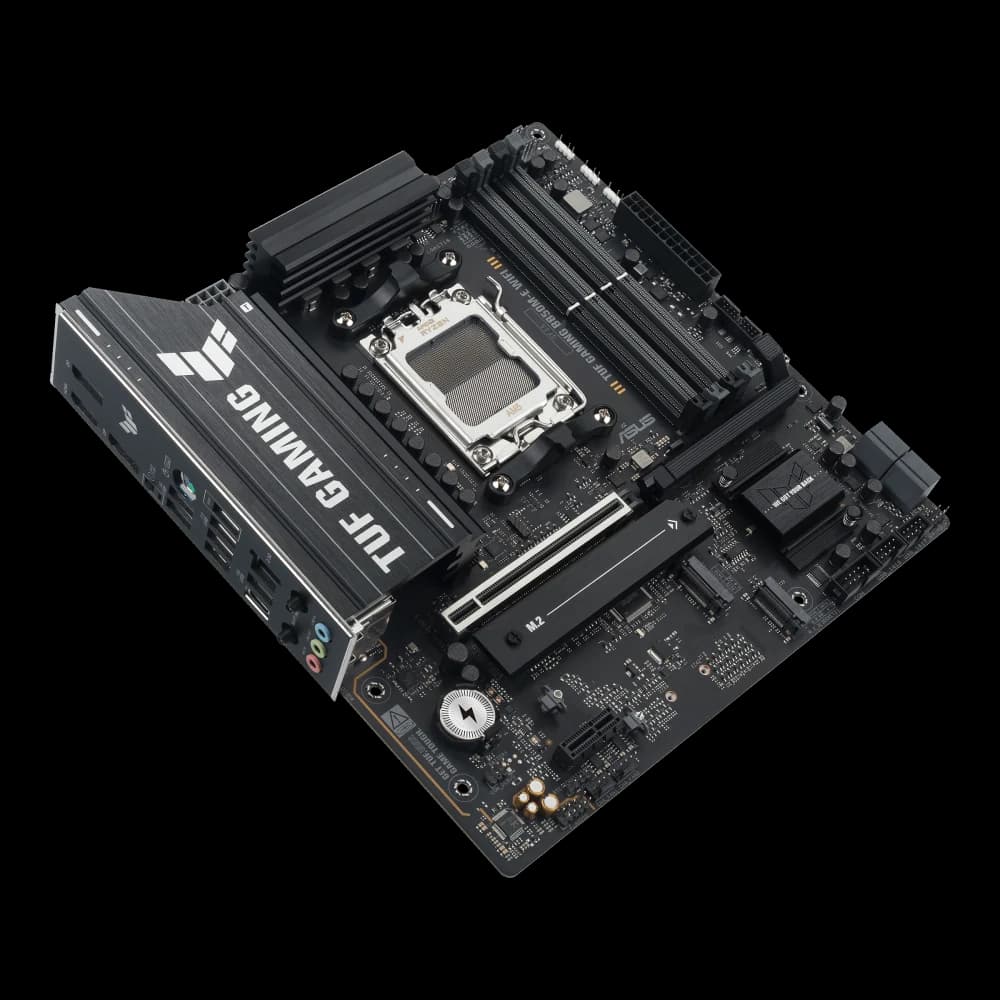

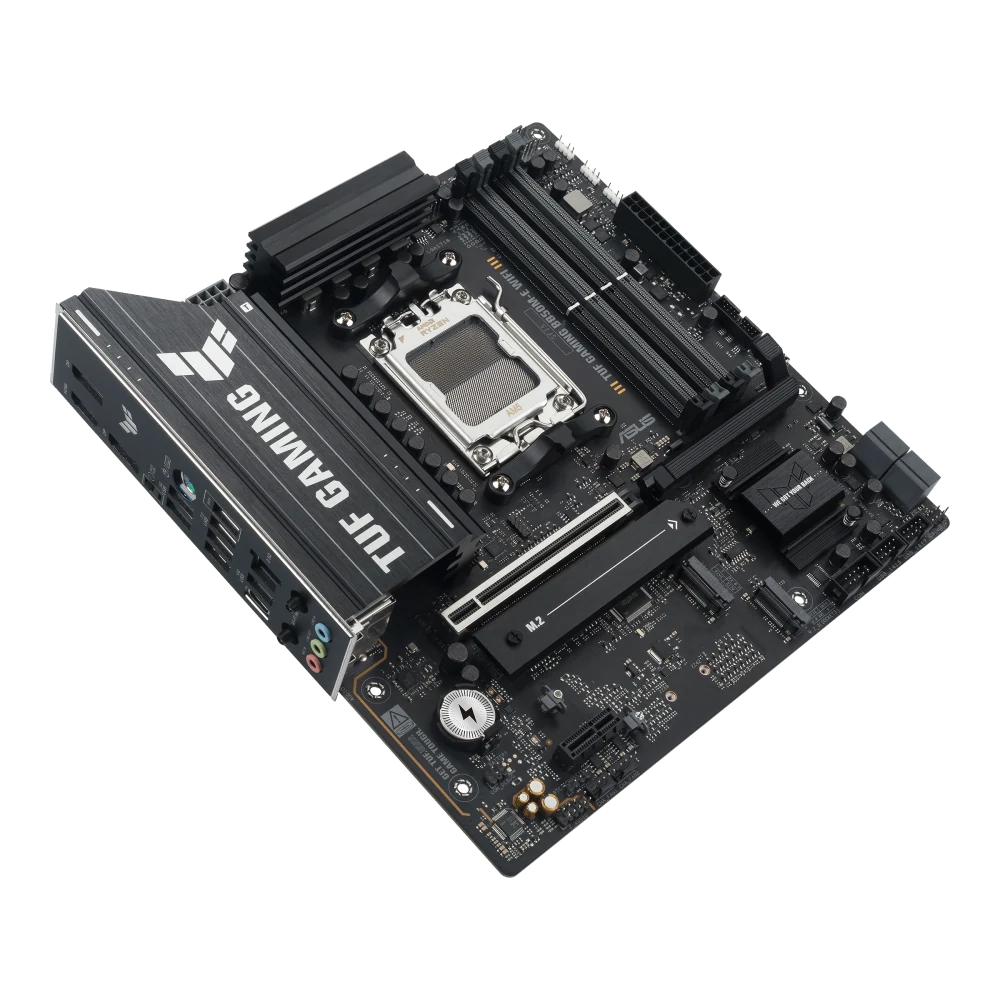

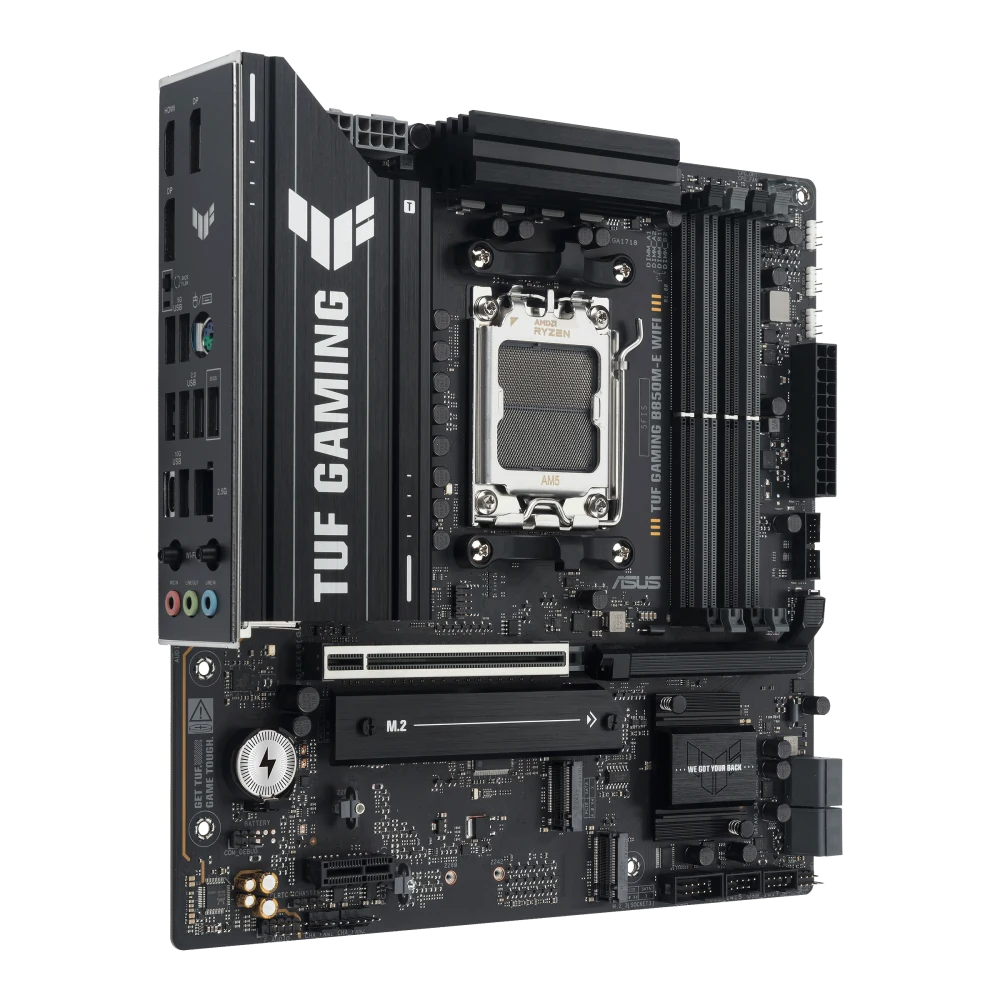

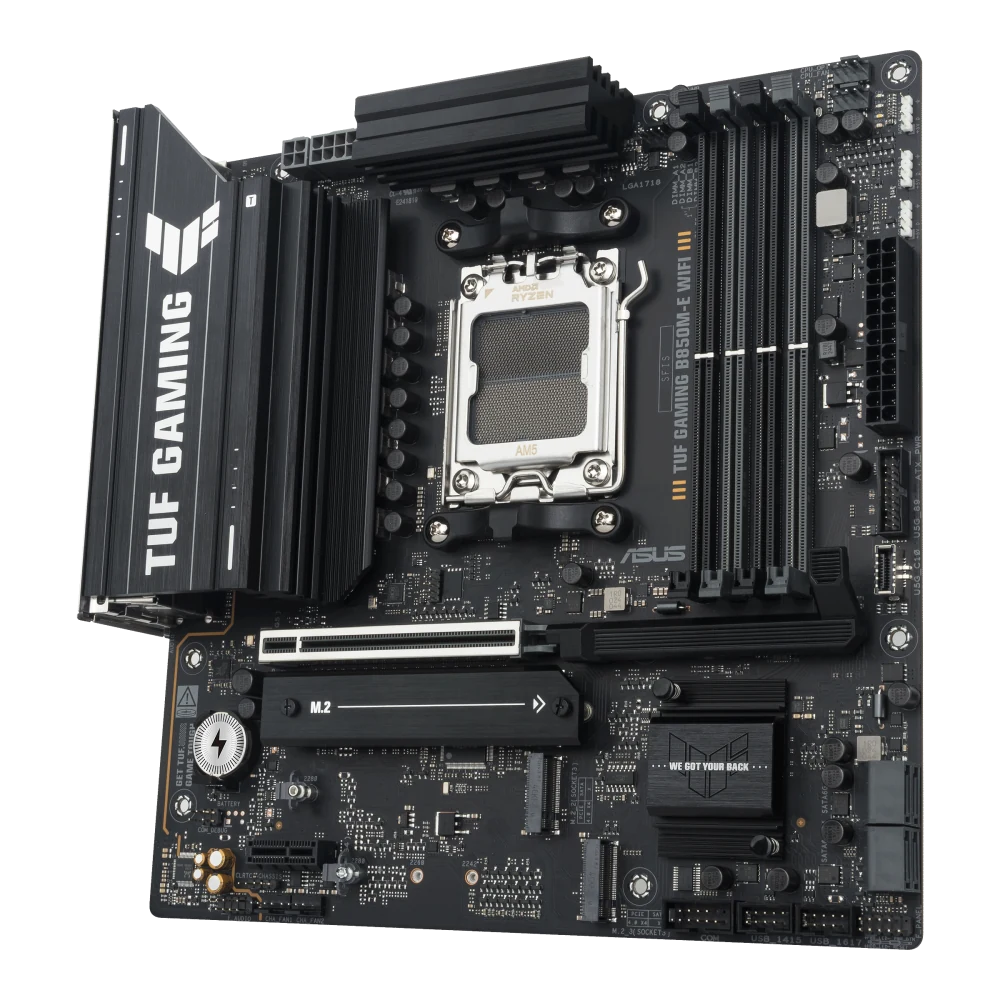

Hover to zoom · click for full imageThe ASUS TUF Gaming B850M-E WiFi packs PCIe 5.0 graphics and storage into a compact micro-ATX AM5 board, giving small-form Ryzen builds serious bandwidth. Its DIGI+ VRM with DrMOS and TUF durability keep power delivery steady for Ryzen 9000 and 7000 gaming.
An ideal base for compact yet powerful Ryzen gaming systems that still want PCIe 5.0 throughout.
| Spec | Value |
|---|---|
| Socket | AMD AM5 for Ryzen 9000 / 8000 / 7000 Series |
| Chipset | AMD B850 |
| Form Factor | micro-ATX, 24.4 cm x 24.4 cm |
| Memory | 4 x DIMM, max. 256GB, DDR5, up to 8000+ MT/s (OC) |
| PCIe | 1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x1 |
| M.2 | 3 x M.2 (1 x PCIe 5.0 x4, 2 x PCIe 4.0 x4) |
| SATA | 4 x SATA 6Gb/s |
| LAN | Realtek 2.5Gb Ethernet with TUF LANGuard |
| Wireless | Wi-Fi 6E (802.11ax), Bluetooth v5.3 |

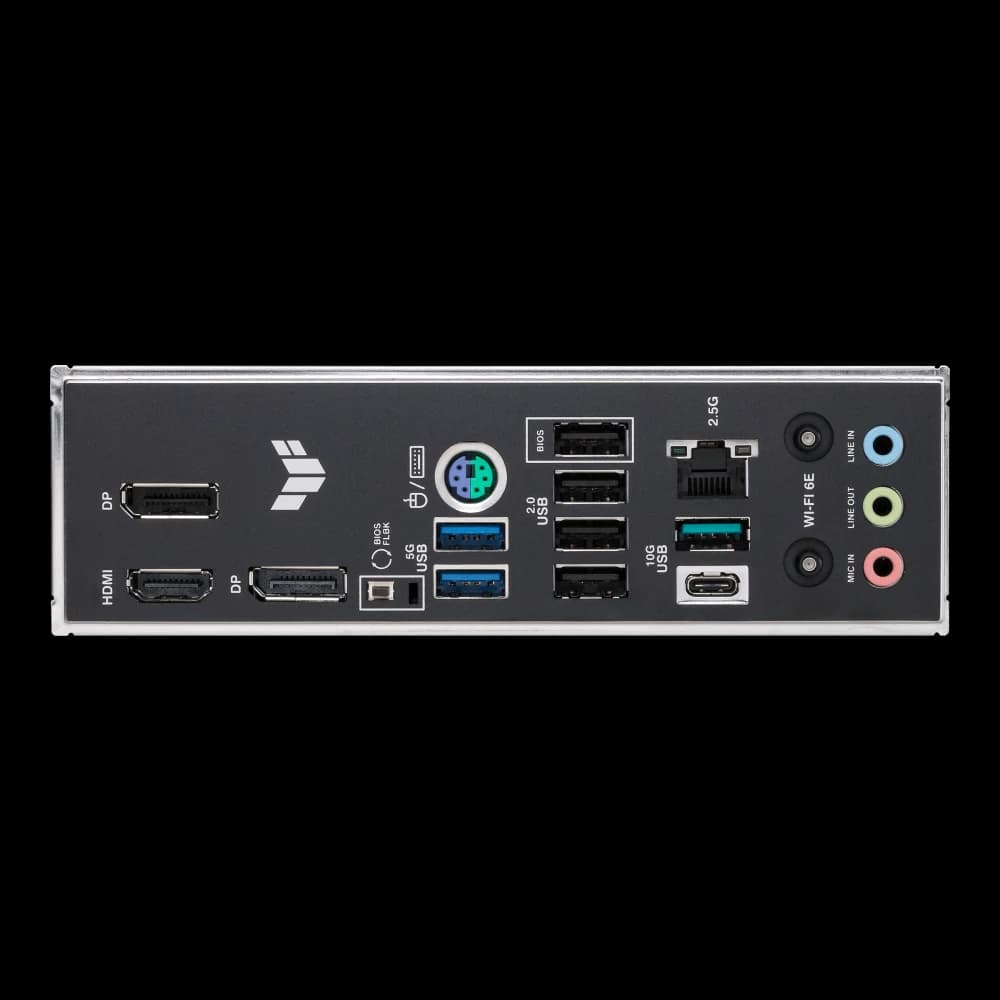

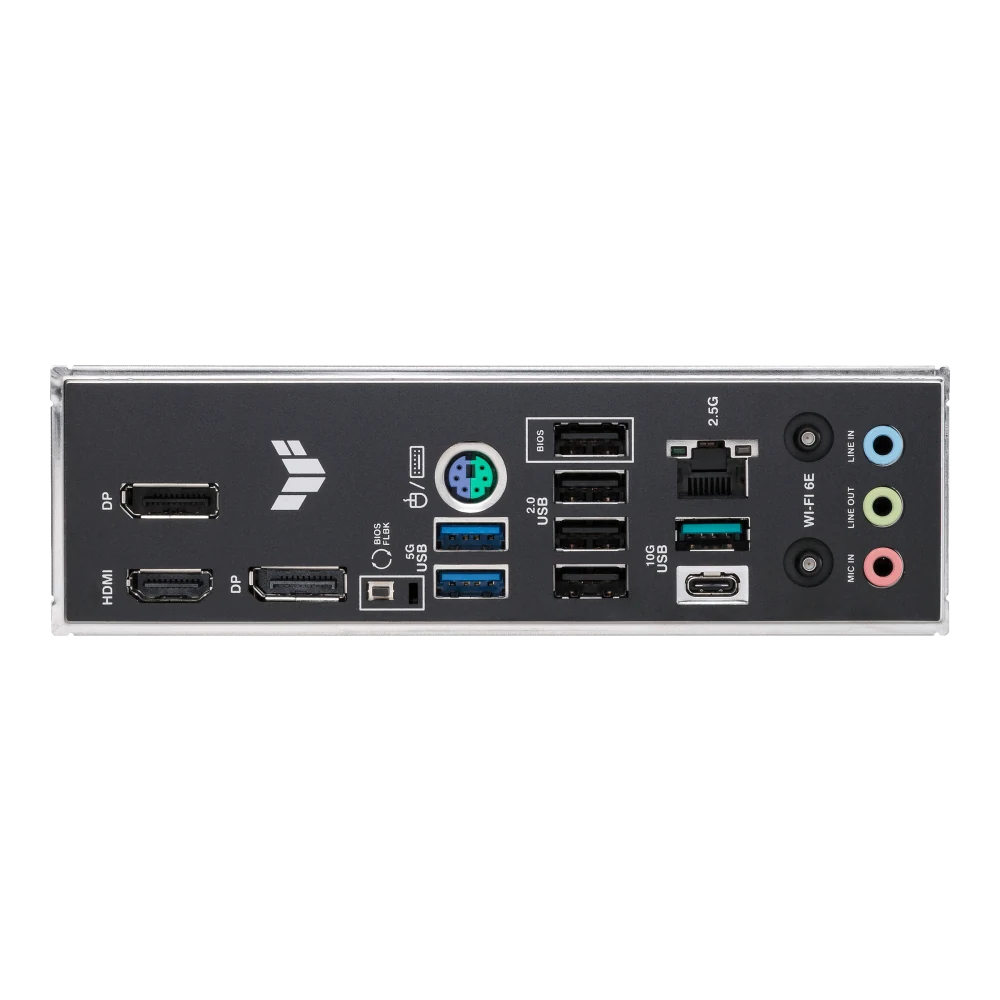

| USB (rear) | 2 x USB 10Gbps (1 Type-A + 1 Type-C), 2 x USB 5Gbps Type-A, 4 x USB 2.0 |
| USB (headers) | 1 x USB 5Gbps connector plus additional headers |
| Video Output | 2 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz) |
