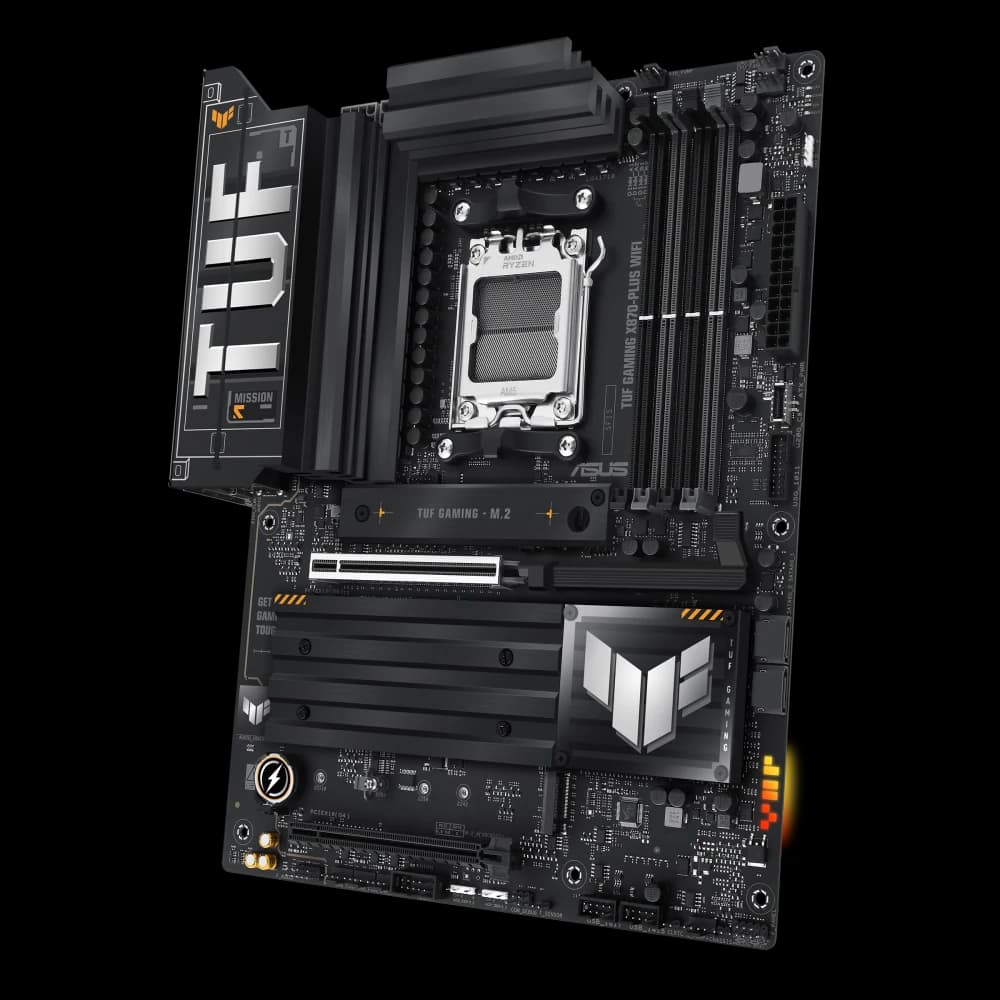

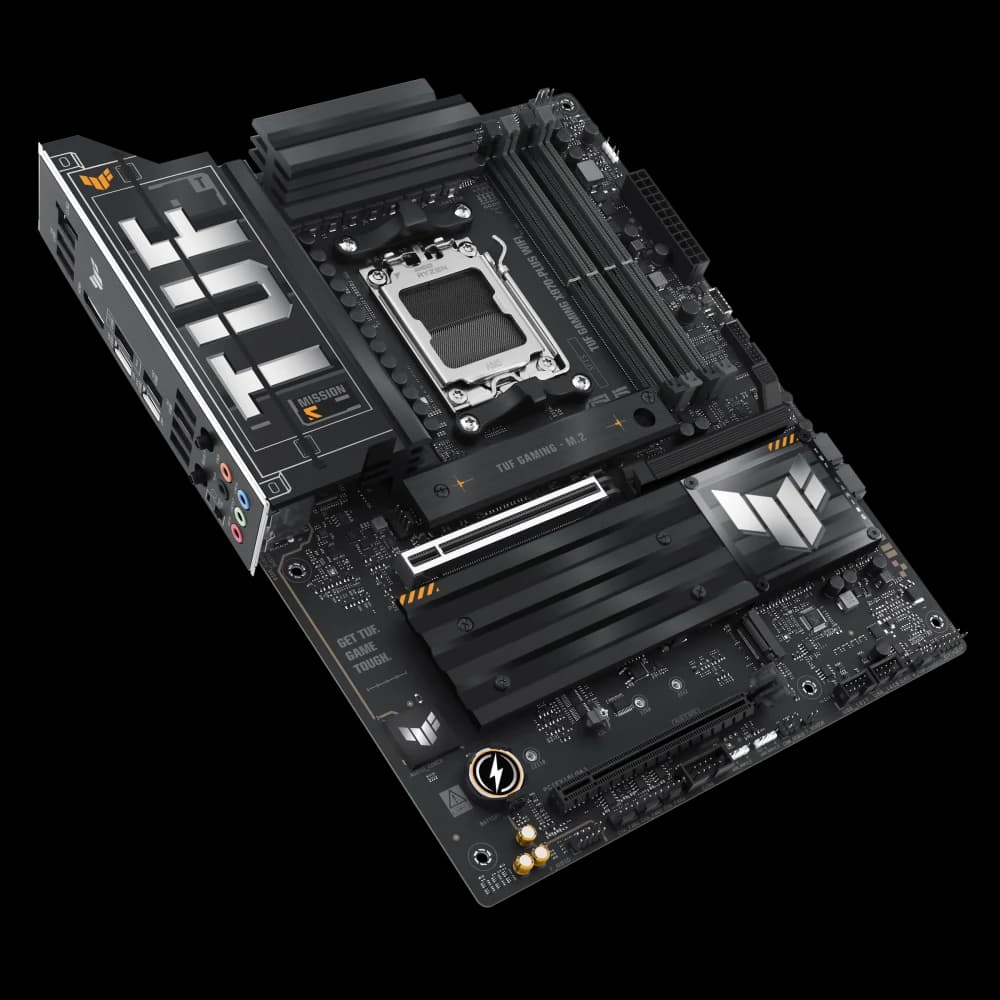

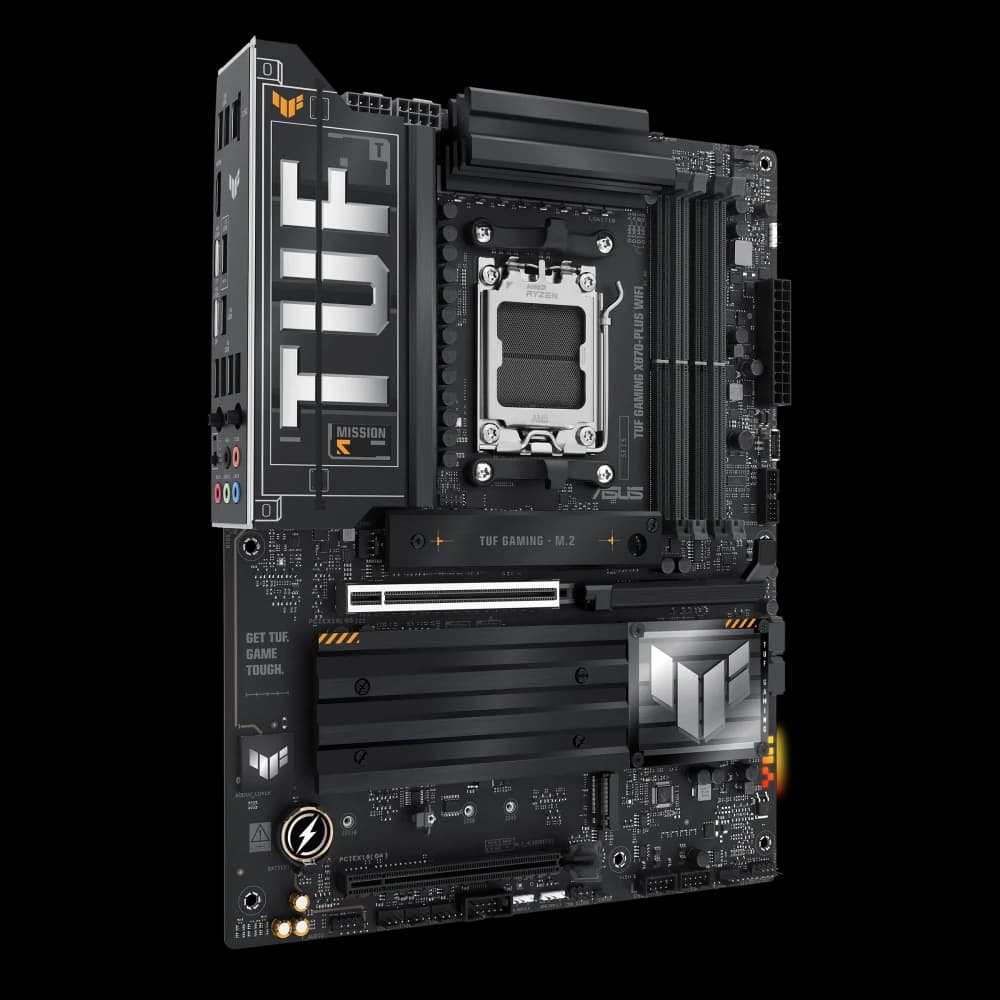

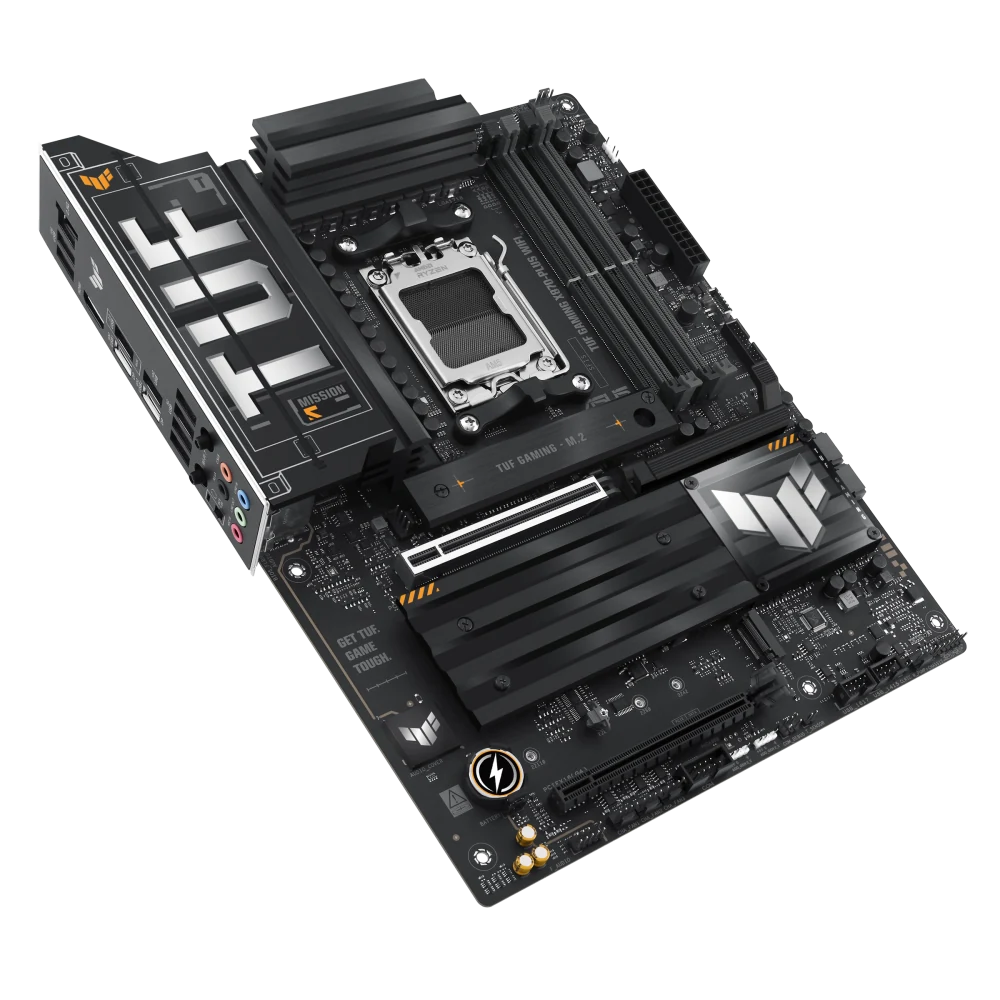

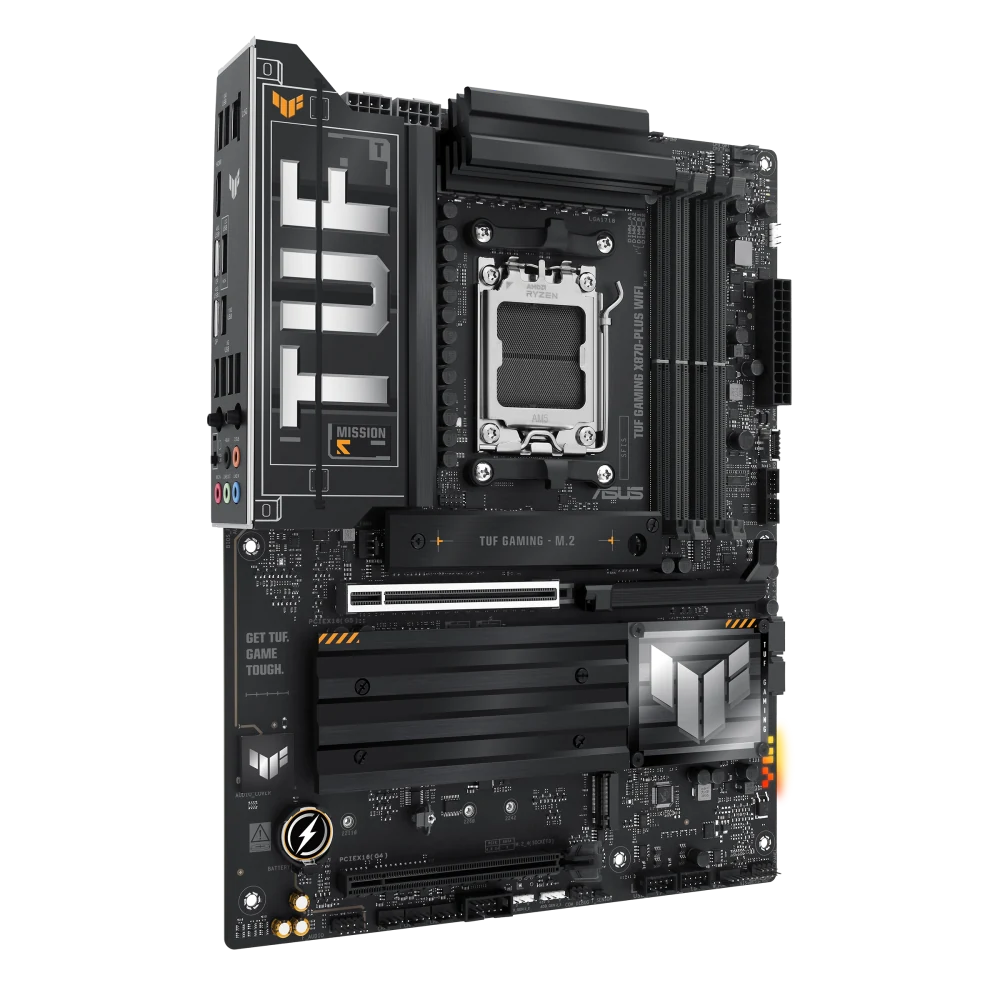

ASUS TUF Gaming X870-PLUS WiFi

Name: ASUS TUF Gaming X870-PLUS WiFi
Brand: ASUS
SKU: ASUS-asus-tuf-gaming-x870-plus-wifi
Price: 103999 PKR
Availability: InStock

Rs 103,999

In stock

1 year local warranty

SKU: ASUS-asus-tuf-gaming-x870-plus-wifi
Category: Motherboards

Description

The ASUS TUF Gaming X870-PLUS WiFi steps up the AM5 lineup with WiFi 7, dual USB4 40Gbps ports and a beefy 16+2+1 power stage design rated at 80A. Two PCIe 5.0 M.2 slots and PCIe 5.0 graphics support make it ready for the newest Ryzen chips and Gen5 hardware, all wrapped in the rugged, military-inspired TUF Gaming build.

Key Features

AMD Socket AM5 support for Ryzen 9000, 8000 and 7000 series processors
WiFi 7 (802.11be) plus Bluetooth 5.4 for cutting-edge wireless speed
16+2+1 power stages rated at 80A for stable high-core-count performance
Dual USB4 40Gbps Type-C ports for fast storage and display connectivity
Four M.2 slots with two running at PCIe 5.0 for the fastest NVMe SSDs
Realtek 2.5Gb Ethernet with TUF LANGuard protection
Realtek ALC1220P audio for rich, high-resolution game and media sound

A well-armored X870 board that gives gamers WiFi 7, USB4 and Gen5 headroom for a truly future-proof AM5 platform.

Specifications

Spec	Value
CPU Socket	AMD Socket AM5 (Ryzen 9000 / 8000 / 7000)
Chipset	AMD X870
Memory	4 x DIMM, up to 256GB DDR5, up to 8000+ MT/s (OC)
Power Stages	16 + 2 + 1, 80A SPS
PCIe x16	1 x PCIe 5.0 x16 (Ryzen 9000/7000), 1 x PCIe 4.0 x16 (x4) via chipset
M.2 Slots	4 x M.2 (M.2_1/M.2_2 PCIe 5.0; M.2_3/M.2_4 PCIe 4.0)
SATA	2 x SATA 6Gb/s
LAN	Realtek 2.5Gb Ethernet with TUF LANGuard
Wireless	WiFi 7 (802.11be, 2x2, up to 2.9Gbps) + Bluetooth v5.4

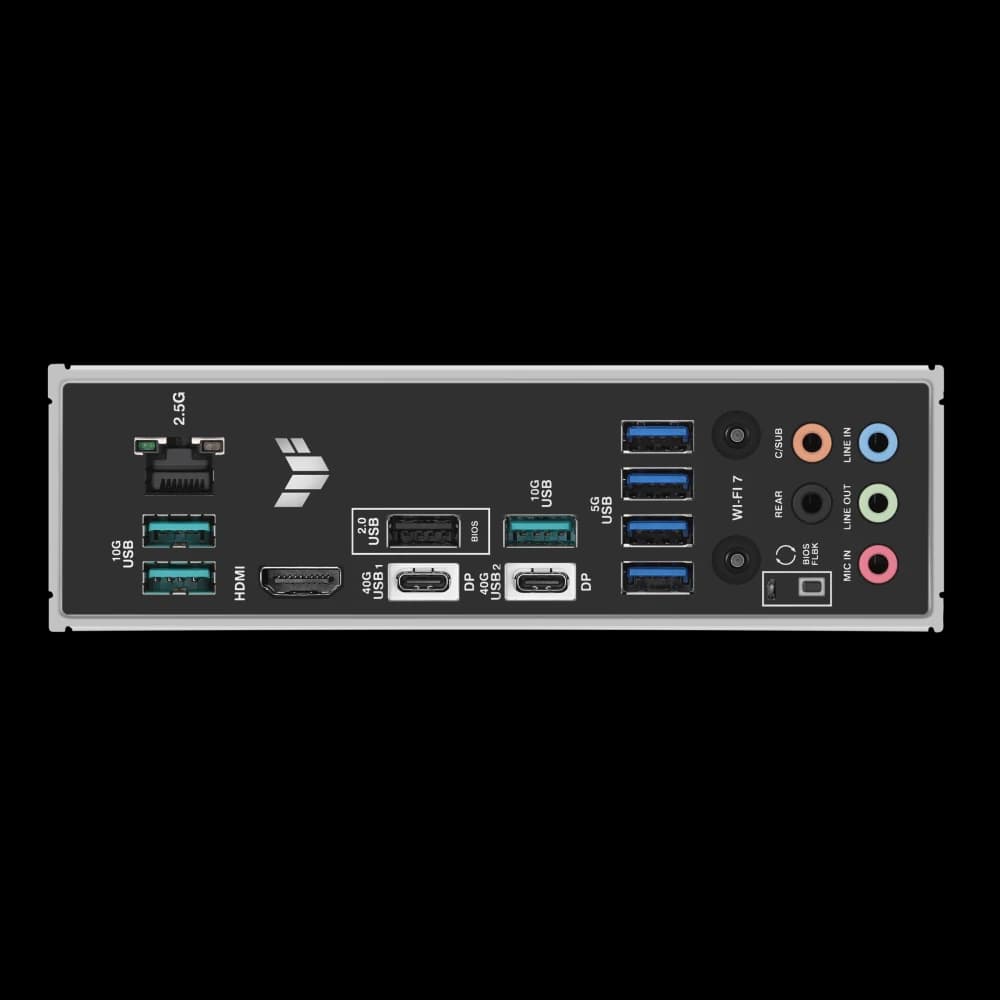

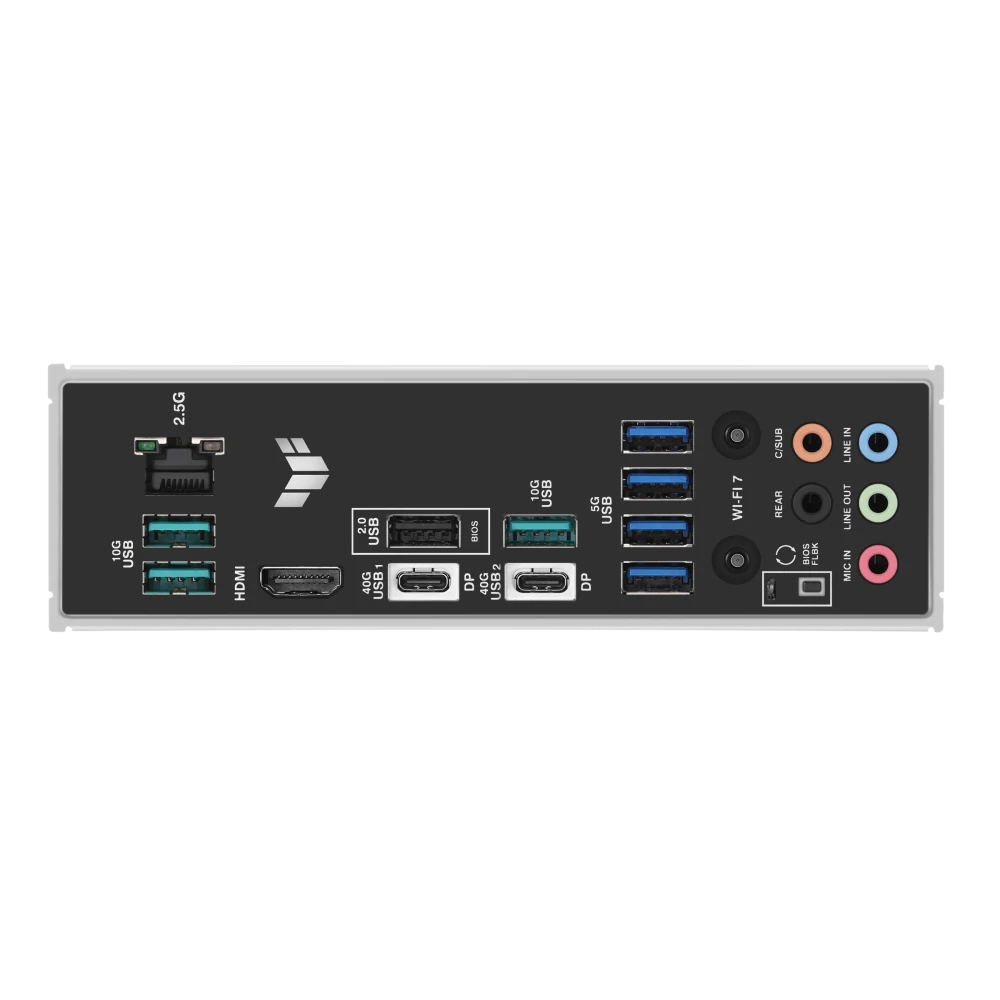

USB (Rear)	2 x USB4 40Gbps, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0
Display	1 x HDMI (4K@60Hz), 2 x USB4 Type-C display output
Audio	Realtek ALC1220P 7.1 Surround (32-bit/192kHz)
Form Factor	ATX, 30.5cm x 24.4cm
