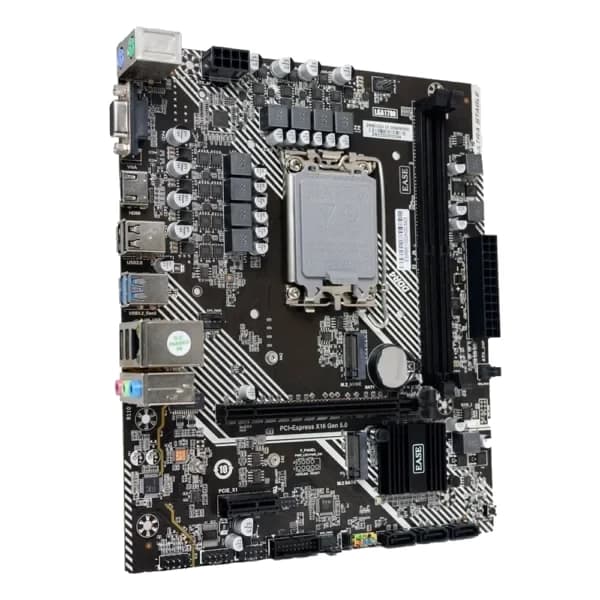

Ease H610M DDR4 LGA1700 Micro-ATX Motherboard

Name: Ease H610M DDR4 LGA1700 Micro-ATX Motherboard
Brand: Ease
SKU: EASE-H610M
Price: 24499 PKR
Availability: InStock

Rs 24,499

In stock

1 year local warranty

SKU: EASE-H610M
Category: Motherboards

Description

The H610M DDR4 LGA1700 Micro-ATX Motherboard is a cost-effective entry into Intel 12th, 13th, and 14th generation Core builds, using affordable DDR4 memory to keep budgets in check. An M.2 slot, PCIe 4.0 x16 graphics support, and Gigabit LAN cover the essentials for reliable everyday desktops.

Key Features

Intel H610 chipset on LGA1700 for 12th, 13th, and 14th Gen Core CPUs
2 x DDR4 UDIMM slots at up to 3200MHz supporting up to 64GB
1 x M.2 slot (PCIe x4 / SATA) plus 3 x SATA 3.0 ports for storage
PCIe 4.0 x16 slot for modern graphics cards
Realtek RTL8111H Gigabit LAN and ALC897 6-channel HD audio
Triple display output with VGA, HDMI, and DisplayPort

Specifications

Spec	Value
Chipset	Intel H610
Socket	Intel LGA1700
CPU Support	Intel 12th / 13th / 14th Gen Core i3/i5/i7/i9, Pentium, Celeron
Memory	2 x DDR4 UDIMM, up to 3200MHz, max 64GB
Form Factor	Micro-ATX (220 x 175mm)
Storage	1 x M.2 (PCIe x4 / SATA), 3 x SATA 3.0
Expansion	1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
USB	2 x USB 3.2 Gen2, 4 x USB 2.0
LAN	Realtek RTL8111H Gigabit
Audio	Realtek ALC897 6-channel HD Audio
Display Output	VGA, HDMI, DisplayPort
