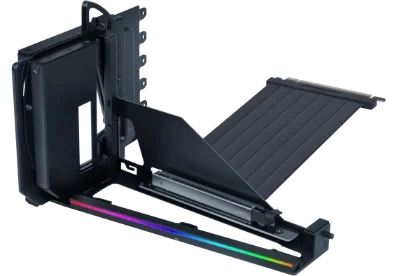

Lian Li VG4v4 4-slot vertical GPU bracket kit Black with PCIe 5.0 riser cable
Hover to zoom · click for full image

Lian Li 4-Slot Vertical GPU Kit VG4v4 with PCIe 5.0 Riser

Lian Li VG4v4 vertical GPU mount for cards up to 4 slots thick, with a 200mm PCIe 5.0 riser, three heights, three tilt angles, a 10kg anti-sag arm and 5V ARGB.

Rs 22,000
In stockOJ Tech Stocked

SKU: G89.VG4-5-V4X.00

Colour · Black

1
1 year local warranty
Price in Pakistan
Rs 22,000
Brand
Lian Li
Category
Other Equipments

Description

The Lian Li 4 Slot Vertical GPU Kit VG4v4 turns your graphics card to face the side glass, using a 200mm PCIe 5.0 x16 riser cable that is backward compatible with PCIe 2.0, 3.0 and 4.0 cards. It holds cards up to 4 slots thick, adjusts for height and tilt, and adds a 10kg rated anti-sag arm plus built-in 5V ARGB lighting. Buy the VG4v4 in Pakistan in Black or White to show off a big GPU in a glass-sided build.

Key Features

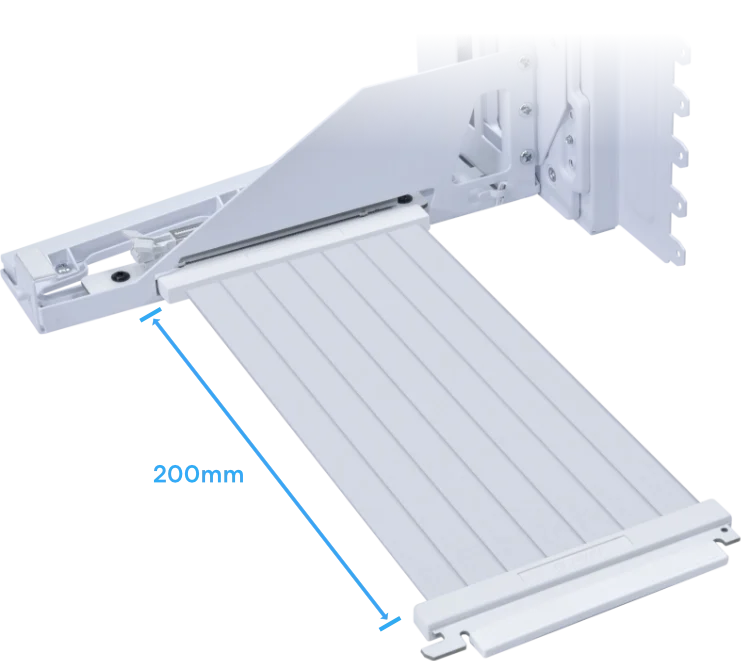

  • PCIe 5.0 riser: 200mm Gen 5 x16 riser cable, rated at twice the speed of PCIe 4.0 and backward compatible with PCIe 2.0 to 4.0 graphics cards.
  • 4-slot GPU support: Fits graphics cards up to 4 slots thick, so large RTX and Radeon cards can stand vertically.
  • Three heights: Move the card up or down in 10.16mm steps (up to 20.32mm total) with a single screw, to clear bottom fans and radiators or to line up with an AIO screen.
  • Three tilt angles: Forward, neutral or backward display angle at every height, each with its own mounting holes on the support arm, adjusted tool-free.

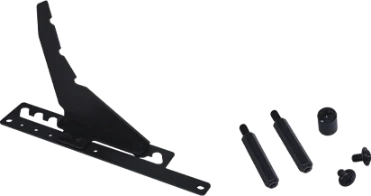

  • 10kg anti-sag arm: The support arm mounts to the motherboard standoffs and slides along guide slots; a standard arm covers ATX and Micro-ATX, and an extension arm covers E-ATX boards.

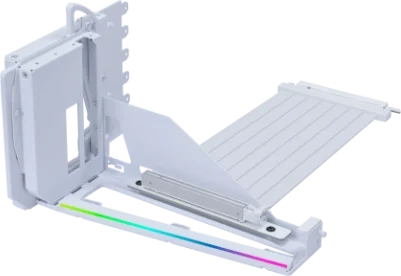

  • Built-in 5V ARGB: An LED strip under a diffuser on the bracket plugs into a 5V 3-pin ARGB header and syncs with your motherboard lighting software.
  • Better hold and cable room: A slimmer rubber pad keeps the card from being pushed up out of place, and the extended rear bracket has a larger opening for thick HDMI cables.
  • Steel build: Bracket measures 168.63 x 147.5 x 234.86mm, in Black (VG4-5-V4X) or White (VG4-5-V4W).

Who It's For

The VG4v4 suits builders with a showcase case, such as a Lian Li O11 or LANCOOL, who want the GPU shroud and backplate on display instead of hidden under the card. On a board with a PCIe 5.0 x16 slot, the Gen 5 riser lets a PCIe 5.0 card such as an RTX 50 series run at its full interface speed, while the height and tilt options let you clear bottom intake fans or angle the card toward the glass. The anti-sag arm also takes weight off the riser and slot with heavy triple-fan cards.

Frequently Asked Questions

Which cases does the Lian Li VG4v4 fit?

Lian Li lists the LANCOOL 217 INF, 217, 216, 215, 207D, 207, 206, 205 and III, O11 Vision and O11 Vision Compact, O11D EVO, EVO RGB, EVO RGB Lamborghini and EVO XL, O11D, O11D XL and Vector V100. Other ATX cases that meet the specs can work too; the O11D Mini V2 is only partly supported, so Lian Li recommends that case's own vertical kit.

Will it work with a PCIe 4.0 or PCIe 3.0 graphics card?

Yes. The riser is PCIe 5.0 x16 and backward compatible with PCIe 2.0, 3.0 and 4.0 cards. For full PCIe 5.0 support, update your motherboard BIOS to the latest version.

How much case depth does it need?

The bracket moves the graphics card 31mm forward compared with a normal horizontal install, so check your case has the clearance, especially in compact cases.

How do I sync the ARGB lighting?

Plug the strip into a 5V 3-pin ARGB header on your motherboard (not a 12V 4-pin RGB header) and control it with the board's own lighting software, which Lian Li says the kit syncs with.

Does it fit E-ATX motherboards?

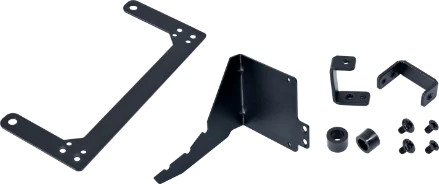

Yes. E-ATX boards use the included extension arm for the anti-sag support, plus a supporting bracket that goes in before the motherboard. Some E-ATX boards with side accessories can block the support arm, and on any board a full-length lower cover can clash with it.

How do I set the height and tilt?

Choose the height first: one screw moves the card between three levels in 10.16mm steps. Then pick forward, neutral or backward tilt using the matching holes on the support arm, and check that the chosen position does not block your GPU's display ports.

This page offers the VG4v4 in Black and White. Order online from OJ Tech for delivery to Lahore, Karachi, Islamabad and every other city in Pakistan.

Specifications

Spec Value
Model VG4-5-V4X (Black), VG4-5-V4W (White)
Type Vertical GPU mount kit
Riser cable 200mm PCIe 5.0 x16 (backward compatible with PCIe 2.0 to 4.0)
GPU thickness support Up to 4 slots
Height adjustment 3 levels, 10.16mm steps
Tilt Forward, neutral, backward (tool-free)
Anti-sag arm Rated up to 10kg, ATX/M-ATX arm plus E-ATX extension arm
Lighting Integrated 5V ARGB (3-pin), syncs with motherboard lighting software
Bracket dimensions 168.63 x 147.5 x 234.86mm (L x W x H)
Material Steel
GPU offset Moves the GPU 31mm forward
Compatibility Lian Li LANCOOL 217 INF/217/216/215/207D/207/206/205/III, O11 Vision, O11 Vision Compact, O11D EVO/EVO RGB/EVO RGB Lamborghini/EVO XL, O11D, O11D XL, Vector V100 and other ATX cases that meet the specs (O11D Mini V2 limited)
Colours Black, White
