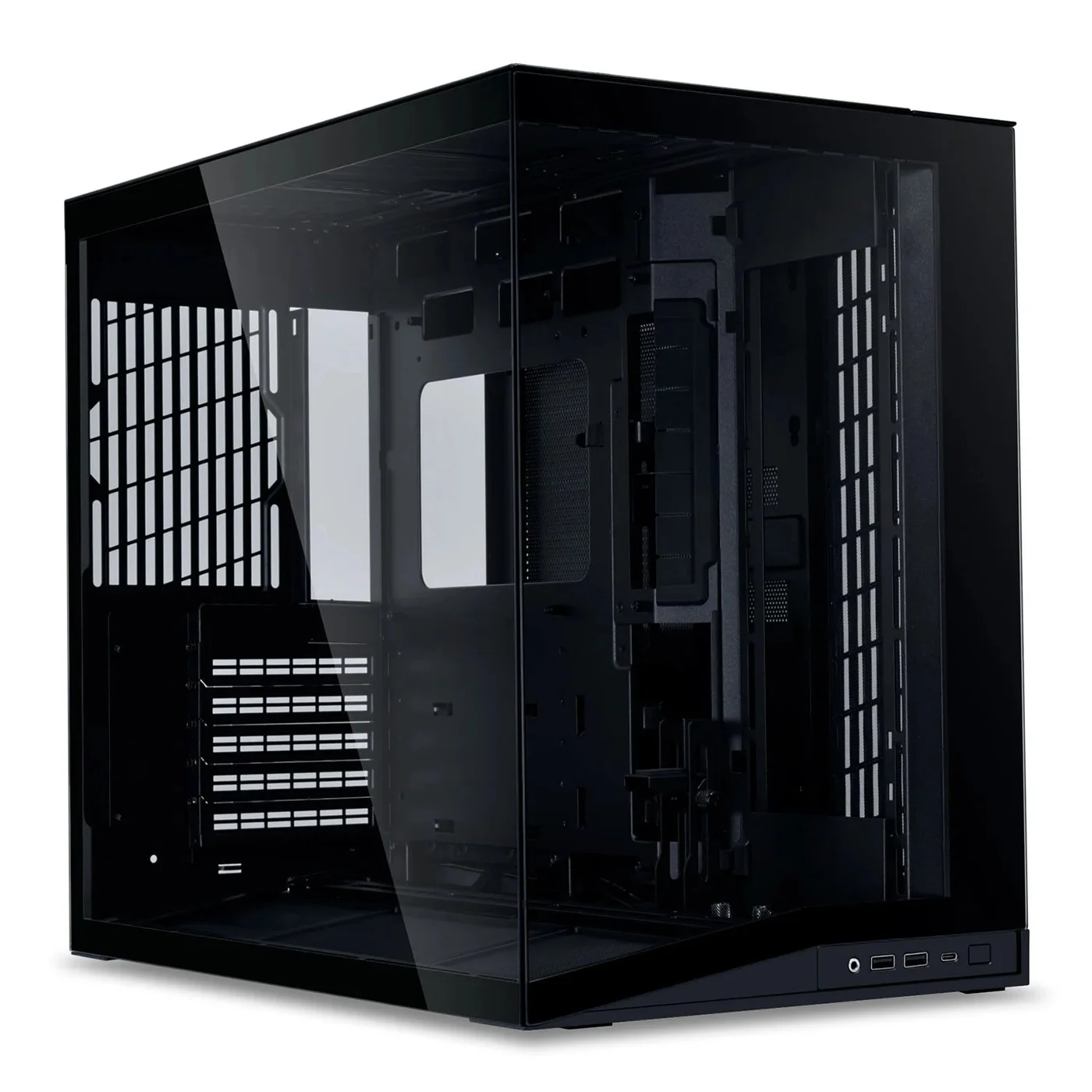

Lian Li O11D Mini V2 Black compact dual-chamber ATX case, pillar-less tempered glass
Hover to zoom · click for full image

Lian Li O11D Mini V2 Compact Dual-Chamber ATX Mid-Tower Case

★★★★★5.0 (1)

Compact 45.38L dual-chamber case that takes ATX and back-connect ATX boards, with pillar-less glass, a slanted base that aims air at the GPU and 400mm GPU room. No fans included.

Rs 26,399
In stockOJ Tech Stocked

SKU: G99.O11DMIV2X.00

Colour · Black

1
Price in Pakistan
From Rs 26,399
Brand
Lian Li
Category
Cases

Description

Lian Li O11D Mini V2 (O11 Dynamic Mini V2) is a 45.38 litre dual-chamber case that is only 2 litres larger than the original O11D Mini, yet takes full ATX and back-connect ATX motherboards. Pillar-less tempered glass on the front and side keeps the view clean, and a 10° slanted bottom aims intake air straight at the graphics card. This is the version without fans, a bare chassis for builders in Pakistan who want to choose their own cooling.

Key Features

  • Pillar-less glass: 4 mm tempered glass on the front and side meets without a corner post, paired with 2 mm aluminium panels and a 1 mm mesh panel.
  • 10° slanted bottom: three bottom 120 mm fan mounts angled to push cool air directly at the GPU.
  • ATX in a compact body: supports ATX, back-connect ATX, Micro-ATX and Mini-ITX boards, with 5 expansion slots.
  • Full-size PSU room: an extended side mesh fits ATX PSUs up to 200 mm long without widening the case.
  • Radiator flexibility: 240 or 360 mm on top (280 mm with a Micro-ATX or Mini-ITX board mounted one slot lower) and 240 mm on the side, with mounts for up to 9x 120 mm fans.
  • Top or bottom I/O: 2x USB 3.0, USB 3.2 Type-C, audio and power; with the module on top, the lower I/O and its cover can come off for more bottom intake.
  • GPU support both ways: horizontal and vertical anti-sag brackets are included, with room for cards up to 400 mm and CPU coolers up to 160 mm.
  • Tidy wiring: a built-in 24-pin cable bracket, 9 cable straps, dual-purpose drive cages and tool-less covers that seal unused fan mounts.

Why Choose the O11D Mini V2

It suits builders who want a full ATX board and a big GPU in a small footprint, and who already have fans or want specific RGB fans. The removable top bracket and the bottom filter that pulls out from the rear make the build and cleaning easier, and built-in mesh filters on the top and right side panels need no fitting. Machined aluminium feet finish it off in Black or White.

O11D Mini V2 vs O11D Mini V2 Flow

The Lian Li O11D Mini V2 Flow is the same 423.6 x 273.3 x 391.95 mm chassis with five 120 mm reverse-blade PWM fans pre-installed: three in the slanted bottom and two on the side. Everything else, from board support to the 400 mm GPU limit, is shared. Pick the standard Mini V2 if you are reusing fans or want ARGB fans of your choice; pick the Flow if you want strong airflow ready out of the box.

Frequently Asked Questions

Will my ATX motherboard fit the O11D Mini V2?

It depends on the slot layout. Typical ATX boards with an M.2 slot between the CPU and the first PCIe slot are generally compatible, as their first graphics slot lines up with the case's second expansion slot. Boards with the first PCIe slot directly under the CPU need the included vertical GPU mount and a 200 mm riser cable sold separately. All Micro-ATX and Mini-ITX boards fit.

Does the O11D Mini V2 come with fans?

No. This is the standard version with no fans; the Flow edition adds five reverse-blade fans.

Which AIO coolers fit?

A 240, 280 or 360 mm radiator fits on top, and 280 mm needs a Micro-ATX or Mini-ITX board mounted one slot lower. A 240 mm radiator fits on the side. Lian Li notes the Galahad II Trinity Performance is not compatible.

Can I mount the graphics card vertically?

Yes. A vertical GPU mount with a height-adjustable support bracket comes in the box; Lian Li pairs it with a 200 mm PCIe riser cable, sold separately.

What are the O11D Mini V2 dimensions?

It measures 423.6 x 273.3 x 391.95 mm (D x W x H), for 45.38 litres.

The O11D Mini V2 is offered here in Black and White; order online from OJ Tech and get it delivered to Lahore, Karachi, Islamabad or any city in Pakistan.

Specifications

Spec Value
Form Factor Mid Tower
Model No. O11DMIV2X (Black), O11DMIV2W (White)
Motherboard Support ATX / Back-Connect ATX / Micro-ATX / Mini-ITX
Material 2 mm aluminium panel, 1 mm mesh panel, 4.0 mm tempered glass
Panels Pillar-less tempered glass front and side panels
Expansion Slots 5
GPU Clearance Up to 400 mm
CPU Cooler Clearance Up to 160 mm
PSU Support ATX (up to 200 mm)
Radiator Support Top 240/280/360 mm (280 mm with Micro-ATX/Mini-ITX mounted one slot lower), side 240 mm
Fan Support Up to 9x 120 mm: top 3x 120 or 2x 140 mm, side 2x 120 mm, bottom 3x 120 mm, rear 1x 120 mm
Pre-installed Fans None
Storage Drive cage 2x 2.5" SSD or 2x 3.5" HDD, behind MB tray 2x 2.5" SSD
Front I/O 2x USB 3.0 Type-A, 1x USB 3.2 Type-C, 1x audio, power button
Dust Filter Bottom
GPU Bracket Horizontal and vertical anti-sag brackets included
Dimensions 423.6 x 273.3 x 391.95 mm (D x W x H)
Volume 45.38 litres
Colours Black, White
