Hover to zoom · click for full imageCo-developed with DAN Cases: a 21.3L dual-orientation micro-ATX chassis with a real wood front.
Colour · Black
The B4-mATX is Lian Li's compact small-form-factor chassis, co-developed with Daniel Hansen of DAN Cases. It squeezes full micro-ATX motherboard support and a long, multi-slot graphics card into a tidy 21.3-litre steel enclosure that looks just as at home on a desk as it does under one.

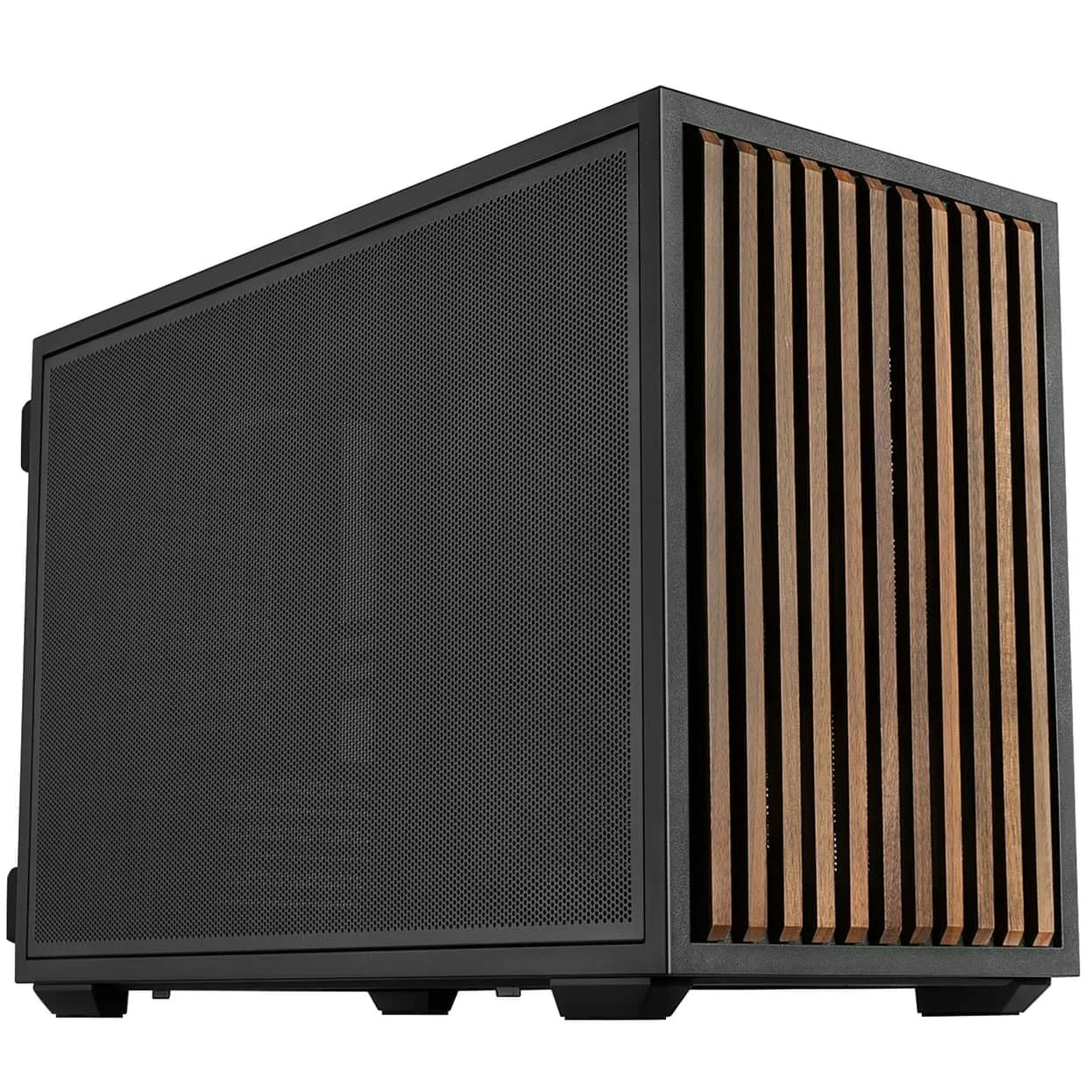

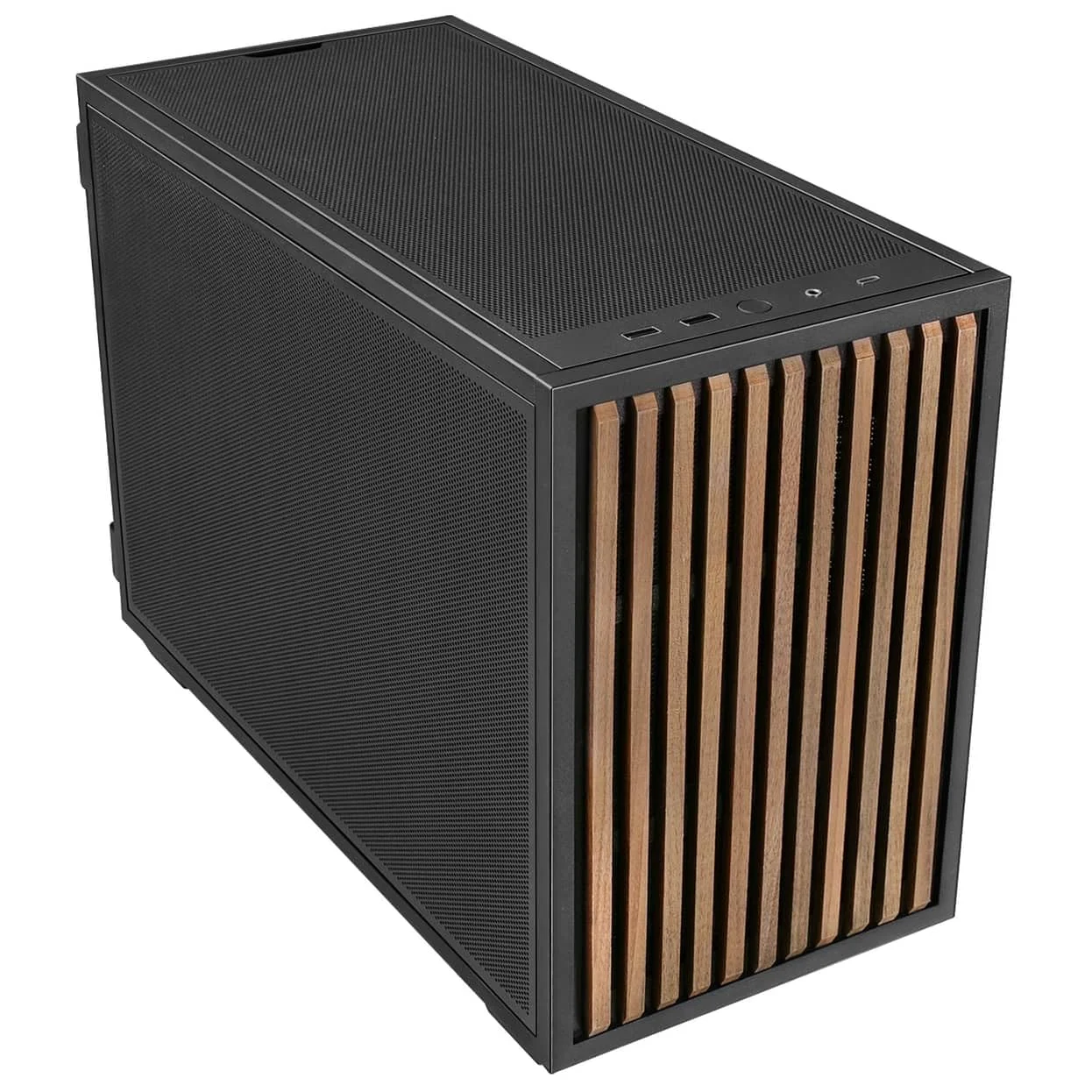

This Wood Edition ships with a genuine real-wood front panel for a warm, refined finish, with the option to swap in a mesh panel for an airflow-first look. The dual-orientation design lets you stand the case vertically or lay it horizontally to suit your space.
Thoughtful internal layout leaves room for a tall air cooler or a large radiator, a full-size ATX power supply, and modern storage, while a clean modern I/O keeps fast USB within easy reach.
| Spec | Value |
|---|---|
| Form Factor | Micro-ATX |
| Motherboard Support | Micro-ATX / Mini-ITX |
| Front Panel | Real wood (swappable mesh panel) |
| Material | Steel, wood |
| Volume | 21.3 Litres |
| Dimensions | 420 x 191 x 288 mm |
| Orientation | Vertical or horizontal (dual-orientation) |
| Expansion Slots | 4 |
| GPU Clearance | Up to 358 mm (4-slot) |
| CPU Cooler Clearance | Up to 168 mm |
| Radiator Support | Up to 360 mm |
| Fan Support | Up to 9 fans (2 slim fans pre-installed) |
| PSU Support | ATX up to 140 mm |
| Front I/O | 2x USB 3.0 Type-A, 1x USB 3.2 Type-C, combo audio |

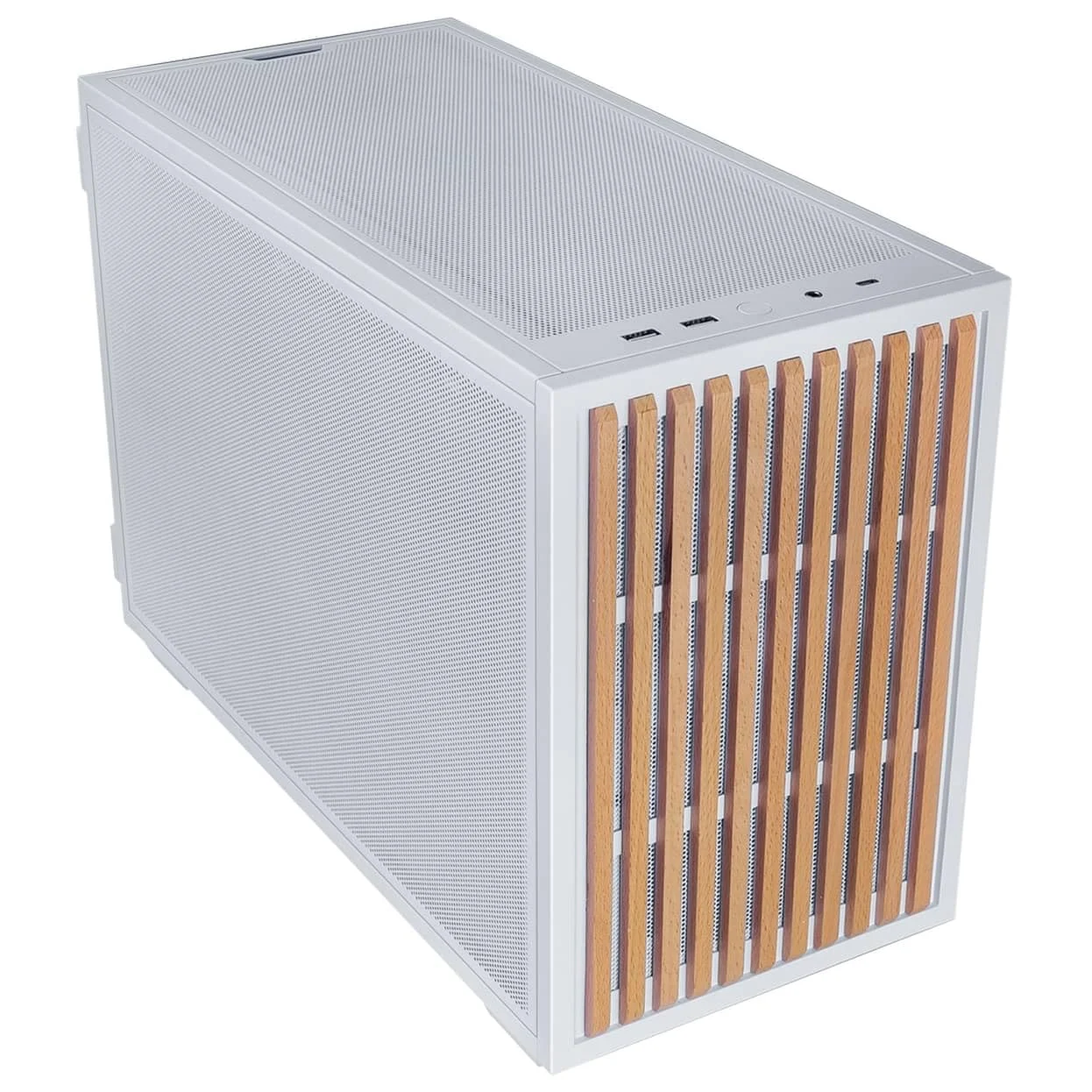

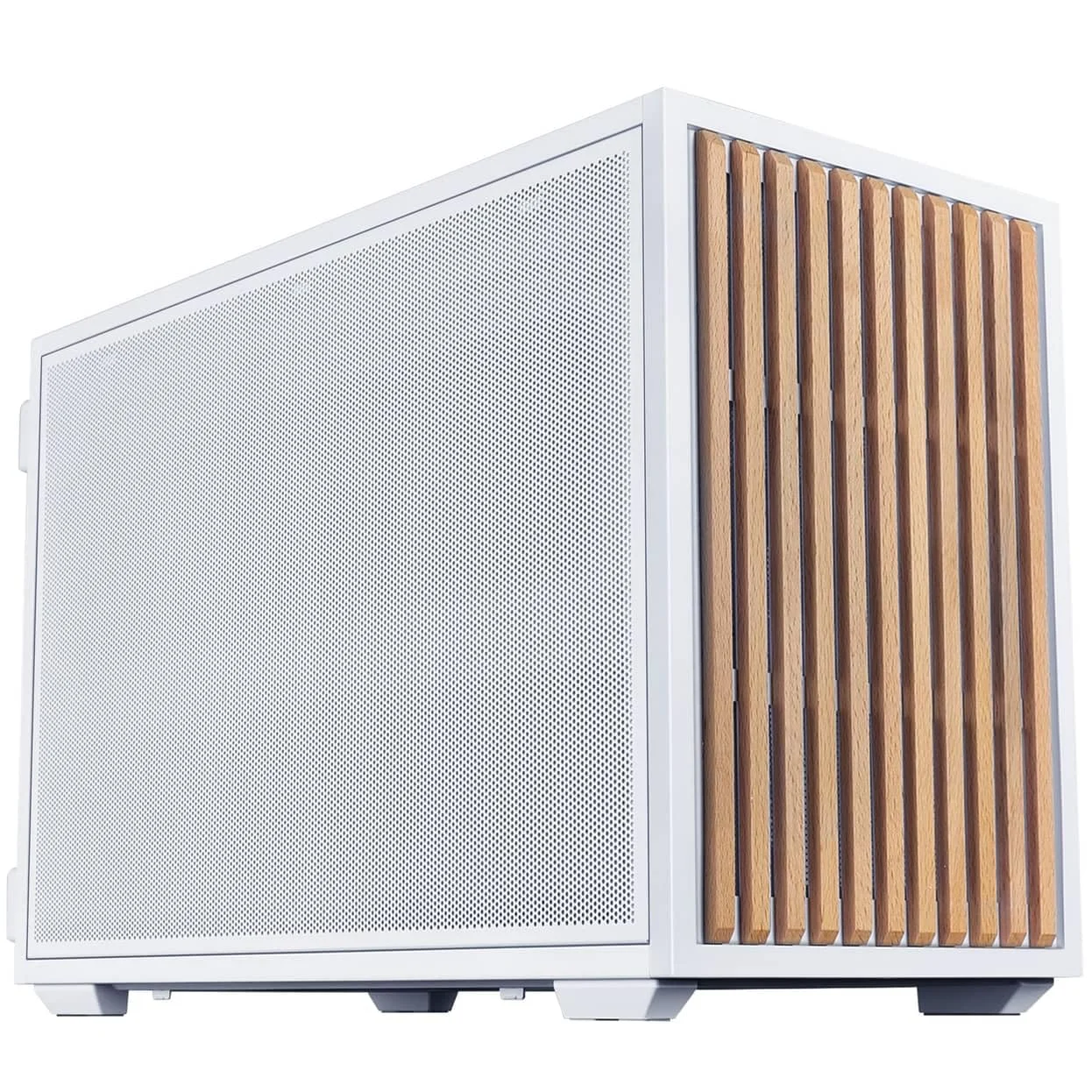

| Colours | Black, White |
