Hover to zoom · click for full image1000W fully modular ATX 3.1 PSU with native 12V-2x6, triple Platinum efficiency and a bundled EDGE Hub V2 fan/USB controller.
Colour · Black

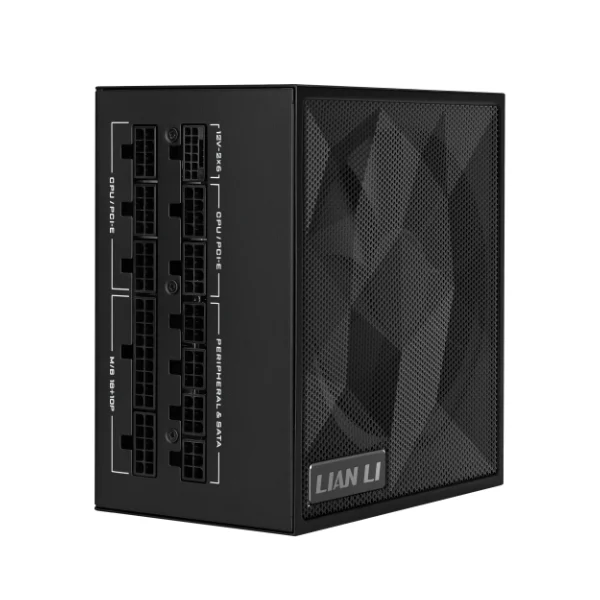

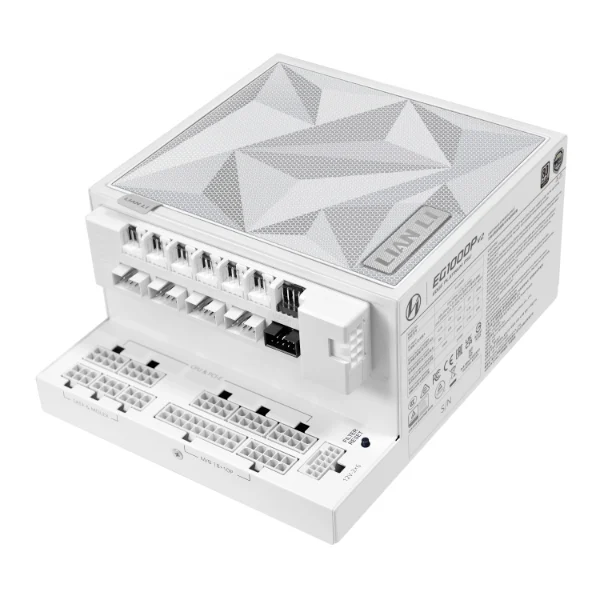

The EDGE Platinum V2 1000W is a fully modular, ATX 3.1 power supply built around Lian Li's distinctive L-shaped chassis, which tucks the cable connectors onto the side so routing stays clean inside dual-chamber builds. A native 12V-2x6 (PCIe 5.1) connector feeds the latest GPUs directly, while triple Platinum certification from 80 PLUS, Cybenetics and PPLP keeps the unit efficient and cool under sustained gaming loads.
A 120mm fluid-dynamic-bearing fan with a zero-RPM mode and a physical fan on/off switch means the PSU stays silent at light loads, and 100% Japanese capacitors deliver stable, long-term reliability. A removable magnetic dust filter with an LED cleaning reminder helps keep intake airflow clear over the life of the build.
| Spec | Value |
|---|---|
| Wattage | 1000W continuous |
| Efficiency | 80 PLUS Platinum / Cybenetics Platinum / PPLP Platinum (up to 92% at 230V) |
| Form Factor | ATX (L-shaped) |
| ATX / PCIe Spec | ATX 3.1, PCIe 5.1 |
| Modularity | Fully modular |
| +12V Rail | Single rail, up to 83A |
| GPU Connector | Native 12V-2x6 (12VHPWR), up to 600W |
| CPU Power | 4+4-pin EPS (12V) |
| Cooling | 120mm FDB fan with 0 RPM zero-fan mode and physical fan on/off switch |
| Capacitors | 100% Japanese capacitors |
| Dust Filter | Removable magnetic dust filter with LED cleaning reminder (after 360 hours) |
| Included Hub | EDGE Hub V2 - magnetic USB 2.0 + PWM fan hub (6 PWM ports, 4 USB headers), managed in L-Connect 3 |
| Protections | OCP, OVP, OTP, OPP, SCP, UVP, SIP, NLP |
| Dimensions | 86(W) x 150(H) x 182(D)mm |
