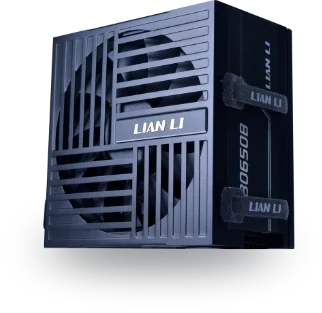

Hover to zoom · click for full imageA 650W 80 PLUS Bronze ATX 3.1 power supply with a native 12V-2x6 connector, semi-modular cabling and a quiet 135mm fan for mid-range gaming rigs.
The RB-650B hits the sweet spot of headroom and value for mid-range gaming and creator builds. The 650W output comfortably drives a modern six- or eight-core CPU paired with a mainstream graphics card, and the ATX 3.1 design with a native 12V-2x6 cable means it is ready for current-generation GPUs and their transient power spikes out of the box.
A semi-modular layout keeps the core 24-pin, CPU EPS and PCIe cables attached for dependable delivery while letting you add only the SATA and peripheral cables your build actually uses. Built-in velcro straps on three sides help you bundle cables cleanly, and the 135mm temperature-controlled fan stays quiet until the load calls for more airflow.
| Spec | Value |
|---|---|
| Wattage | 650W |
| Form Factor | ATX |
| ATX Specification | ATX 3.1 |
| PCIe Standard | PCIe 5.1 |
| Efficiency | 80 PLUS Bronze (up to 85% at 50% load) |
| Type | Semi-Modular (fixed 24-pin ATX, CPU-EPS and PCIe/12V-2x6; modular SATA and peripheral) |
| Main Connectors | Native 12V-2x6 (16-pin), PCIe 6+2-pin, 24-pin ATX, CPU-EPS |
| +12V Rail | Single rail, 54.1A (649.2W combined) |
| +3.3V & +5V Combined | 100W |
| Cooling Fan | 135mm HYB temperature-controlled fan |
| Protections | OVP, UVP, OCP, OPP, OTP, SCP |
| Dimensions (D x W x H) | 150 x 86 x 150mm |
