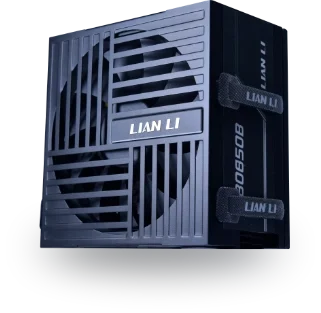

Lian Li RB-750B 750W 80+ Bronze ATX 3.1 power supply in black, front three-quarter view showing the RB0750B side label
Hover to zoom · click for full image

Lian Li RB Series RB-750B 750W 80+ Bronze ATX 3.1 Power Supply (Black)

750W 80 PLUS Bronze, ATX 3.1 with native 12V-2x6, semi-modular, compact 150mm, black

Rs 19,500
In stock
1
1 year local warranty
SKU
G9P.RB0750B.B000.UK
Price in Pakistan
Rs 19,500
Brand
Lian Li
Category
Power Supplies

Description

The Lian Li RB-750B is a compact 750W, 80 PLUS Bronze ATX 3.1 power supply in classic black, with the headroom and native 12V-2x6 cable that high-performance gaming and workstation builds need.

Key Features

  • 750W output on a single high-amperage +12V rail (62.5A)
  • 80 PLUS Bronze certified, up to 85% efficiency
  • ATX 3.1 ready with a native 12V-2x6 connector for current-generation graphics cards
  • Extra 100mm 12V-2x6 to PCIe 6+2-pin cable, for a total of three 8-pin connectors on triple 8-pin GPUs
  • Compact 150mm depth that fits most ATX cases
  • Built-in routing channel with Velcro straps on three sides, plus three-sided cable exits suited to back-connector motherboards
  • Modular SATA and peripheral cables, so you connect only what you need
  • 135mm HYB temperature-controlled fan, larger than a standard 120mm fan, for strong cooling at lower, quieter speeds
  • 105°C capacitors and DC-to-DC design for stable output, rated for operation at up to 40°C
  • Six protections: OVP, UVP, OCP, OPP, OTP and SCP
  • Safety certified, including CE, FCC, TÜV, BSMI and CB

Note: the 12V-2x6 plug has a two-tone housing. Push it in until the blue part is fully inserted for a secure connection.

A tidy black power supply with real headroom for a modern gaming PC.

Specifications

Spec Value
Model RB0750B
Wattage 750W
Form Factor ATX
ATX Specification ATX 3.1
Efficiency 80 PLUS Bronze (up to 85%)
Type Semi-Modular (fixed 24-pin ATX, CPU EPS and GPU cables; modular SATA and peripheral)
Main Connectors 24-pin (20+4) ATX, CPU 4+4-pin EPS, native 12V-2x6 (16-pin), PCIe 6+2-pin, SATA, PATA (Molex), plus an extra 100mm 12V-2x6 to PCIe 6+2-pin cable
+12V Rail Single rail, 62.5A (750W combined)
+3.3V & +5V Combined 100W
AC Input 100-240Vac, 10A, 50-60Hz
PFC Active PFC, PF > 0.95 at full load
Cooling Fan 135mm HYB temperature-controlled fan, 1600rpm
Noise Level 40.1dBA
Capacitors 105°C
MTBF 100,000 hours minimum
Protections OVP, UVP, OCP, OPP, OTP, SCP
Safety Approvals CE, CB, cTUVus, TÜV, FCC, BSMI, CCC, KCC, SAA+RCM
Dimensions (D x W x H) 150 x 86 x 150mm
Colour Black
