Hover to zoom · click for full image1000W 80+ Platinum, fully modular, short-depth ATX 3.1 PSU with a native 12V-2x6 (12VHPWR) connector for next-gen GPUs.
Colour · Black
The SX1000P packs 1000 watts of clean, efficient power into a short-depth ATX chassis built for high-end small and mid-tower builds. Its 140 mm depth clears the way for tidy cable routing in compact cases, while an 80 PLUS Platinum rating keeps running temperatures and energy waste low, reaching up to 94% conversion efficiency at 50% load.
Built to the ATX 3.1 and PCIe 5.1 standards, it carries a native 12V-2x6 (12VHPWR) connector on fully modular cabling, so you plug in only the cables your system needs and drive the latest GPUs directly, without daisy-chained adapters. A reinforced copper-alloy 12V terminal handles power excursions of up to 200% of rated output to ride out transient GPU spikes.

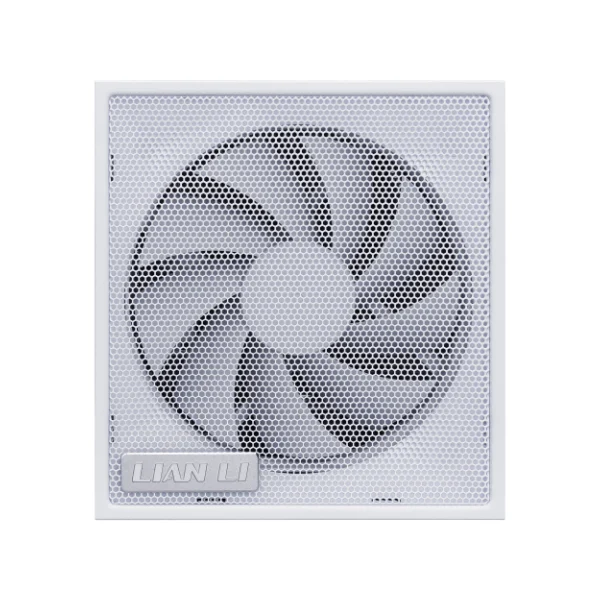

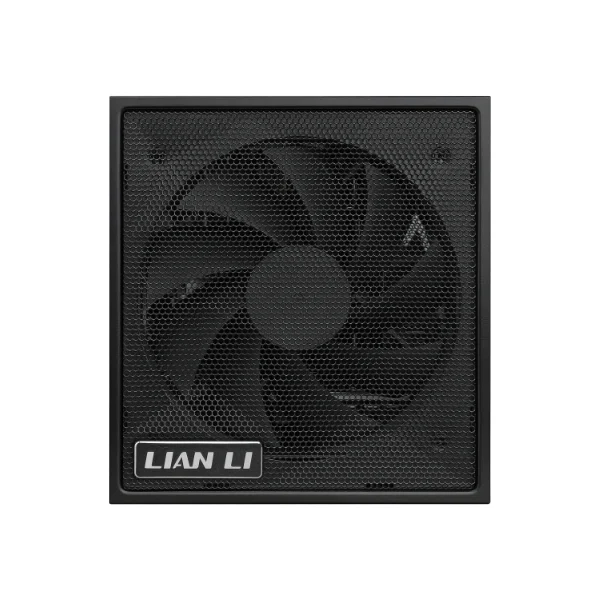

A 120 mm fluid-dynamic-bearing fan stays completely still under light loads and only spins up past 40% load, so the system runs near-silent at the desktop. 100% Japanese 105°C capacitors and a full protection suite round out a supply built for long, stable service.
| Spec | Value |
|---|---|
| Wattage | 1000W |
| Efficiency | 80 PLUS Platinum (up to 94% at 50% load) |
| Form Factor | ATX (short-depth, 140mm) |
| Dimensions | 150mm (W) x 86mm (H) x 140mm (D) |
| ATX Specification | ATX 3.1 |
| PCIe Standard | PCIe 5.1 ready |
| Type | Fully modular |
| GPU Power Connector | Native 12V-2x6 (12VHPWR) connector |
| Motherboard Connector | 24-pin ATX (18+10) |

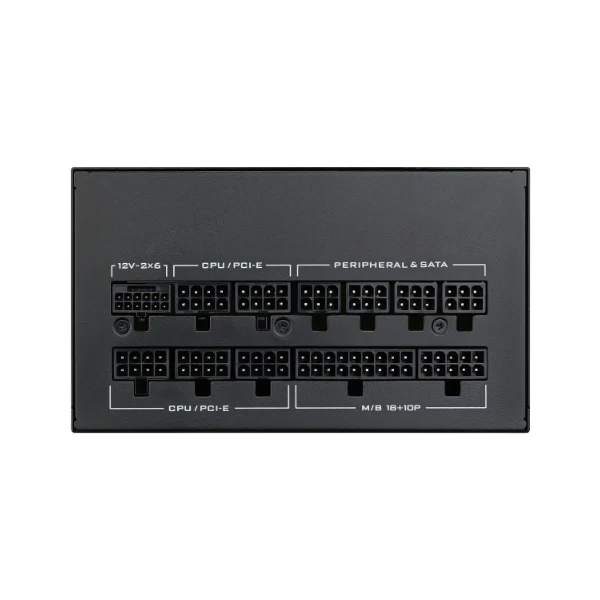

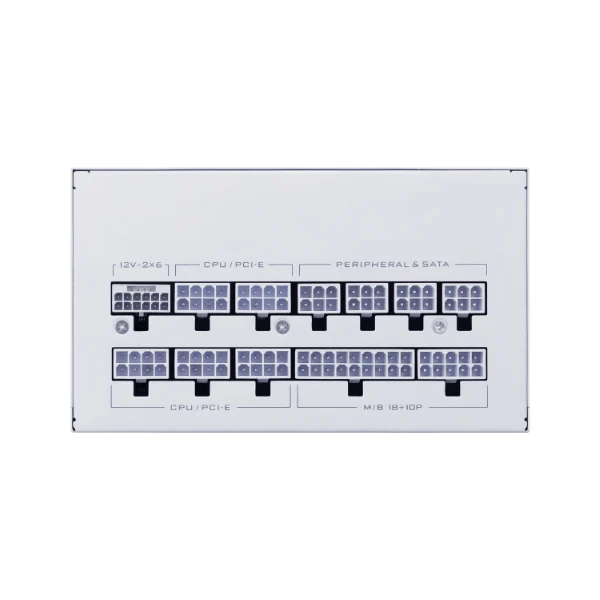

| Modular Cabling | ATX 24-pin, CPU/EPS & PCIe, 12V-2x6, Peripheral & SATA |
| Combined +12V Output | 999.6W |
| Combined +3.3V & +5V Output | 100W |
| Transient Response | Supports power excursions up to 200% of rated output |
| Cooling | 120mm fluid dynamic bearing (FDB) fan, up to 2000 RPM, semi-fanless below ~40% load |
| Capacitors | 100% Japanese 105°C capacitors |
| Protections | OCP, OVP, OTP, OPP, SCP, UVP, NLP, SIP |
