MSI B650M GAMING WIFI

Name: MSI B650M GAMING WIFI
Brand: MSI
SKU: MSI-B650M-GAMING-WIFI
Price: 45000 PKR
Availability: InStock

Rs 45,000

In stock

1 year local warranty

SKU: MSI-B650M-GAMING-WIFI
Category: Motherboards

Description

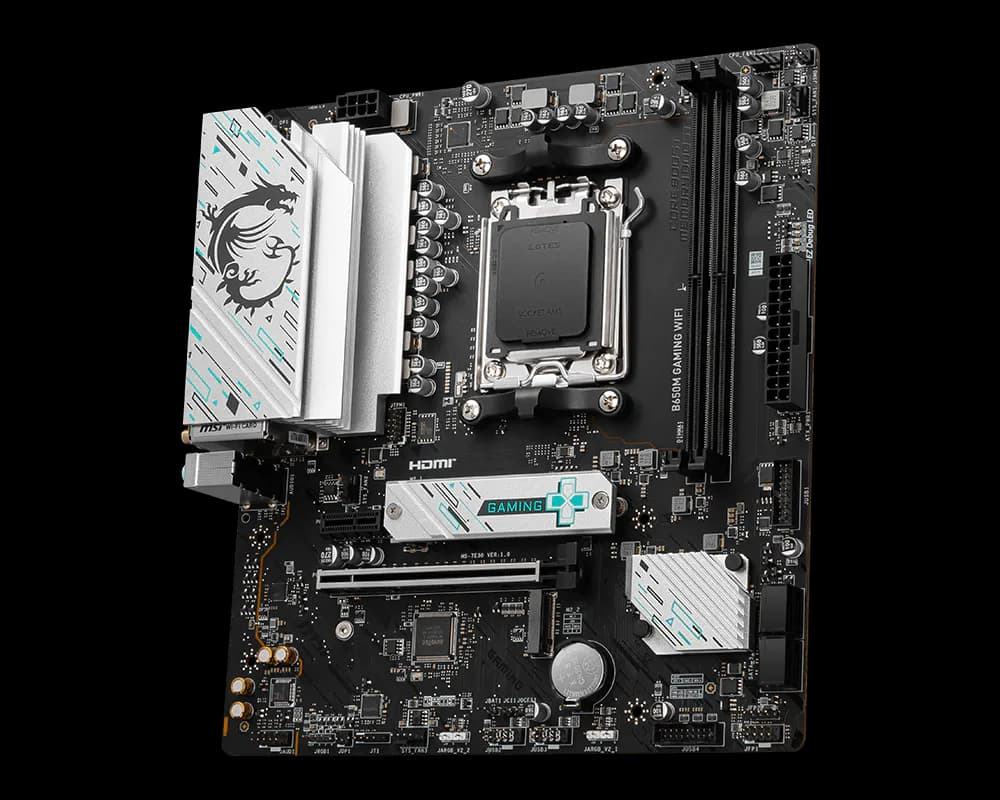

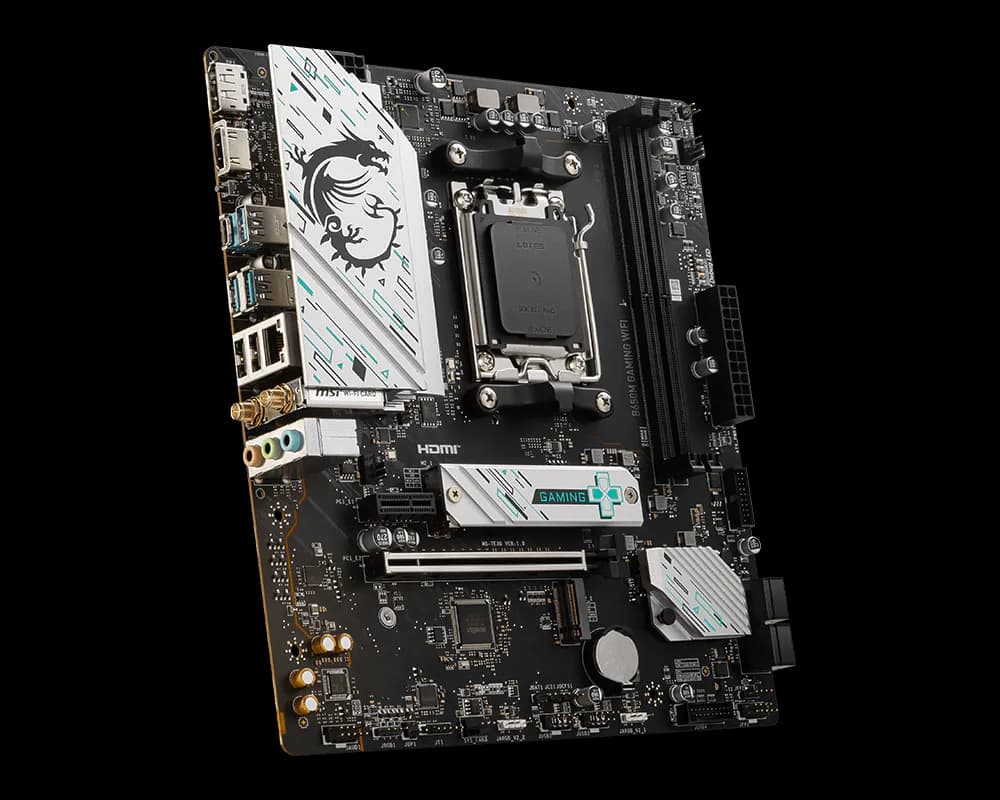

The MSI B650M GAMING WIFI is a micro-ATX motherboard built on the AMD B650 chipset for Socket AM5 Ryzen processors, with four DDR5 slots and built in wireless. It is a capable, compact base for AM5 gaming systems.

Key Features

Socket AM5 for AMD Ryzen 7000, 8000 and 9000 Series processors
Four DDR5 DIMM slots supporting up to 128GB, rated to 7800 MHz and above with overclocking
PCIe 4.0 x16 slot for the graphics card
Two M.2 slots running at PCIe 4.0 x4 for fast NVMe storage
Four SATA 6Gb/s ports for additional drives
Realtek RTL8125BG 2.5G LAN plus onboard Wi-Fi and Bluetooth

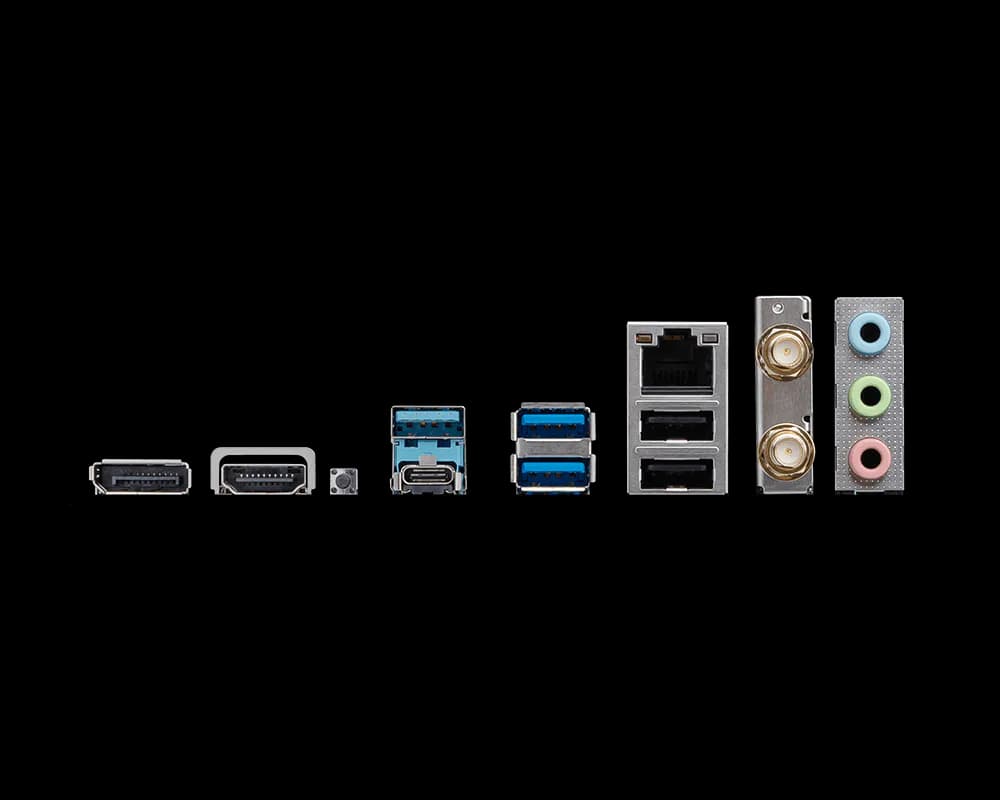

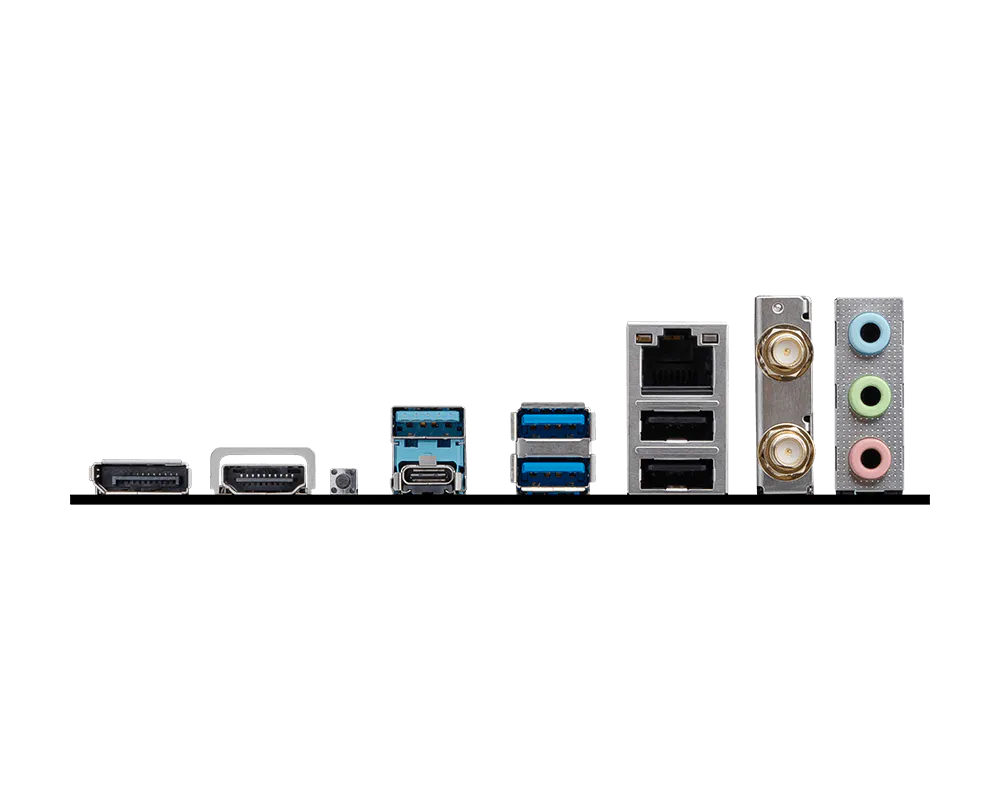

Realtek ALC897 7.1 channel audio with HDMI and DisplayPort outputs

A compact B650 gaming board with four RAM slots and Wi-Fi for AM5 Ryzen builds.

Specifications

Spec	Value
Type	Micro-ATX motherboard
Socket	AMD AM5
Chipset	AMD B650
CPU support	Ryzen 7000, 8000, 9000 Series
Memory	4x DDR5, up to 128GB, 7800+ MHz (OC)
Graphics slot	1x PCIe 4.0 x16
M.2	2x PCIe 4.0 x4
SATA	4x SATA 6Gb/s
LAN	Realtek RTL8125BG 2.5G
Wireless	Onboard Wi-Fi with Bluetooth
Audio	Realtek ALC897 (7.1 channel)
Display	HDMI, DisplayPort
