Hover to zoom · click for full imageCompact AMD A520 Micro-ATX motherboard for Socket AM4 Ryzen processors with DDR4, PCIe 3.0 and M.2 storage.

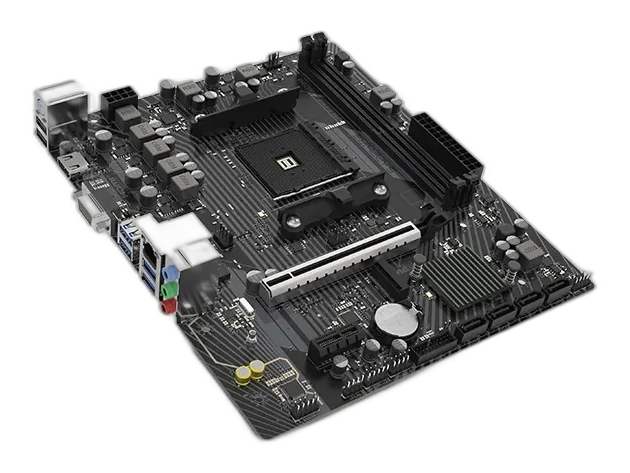

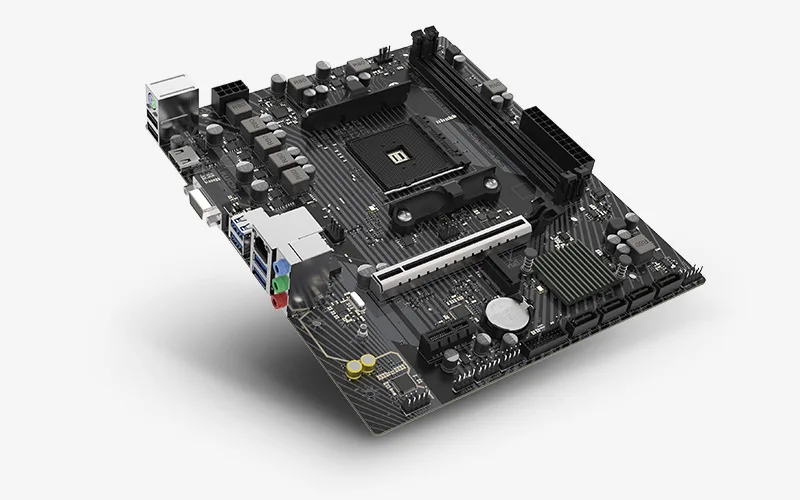

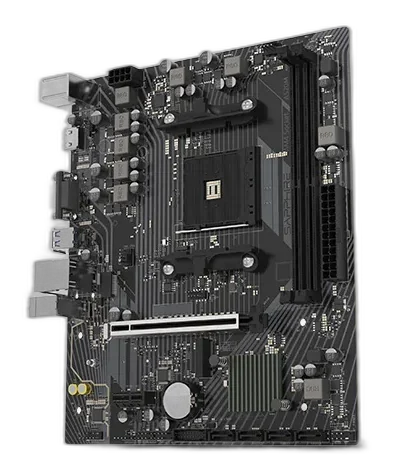

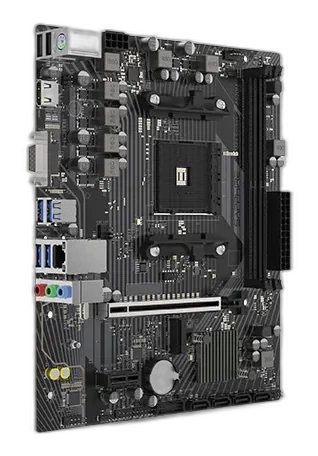

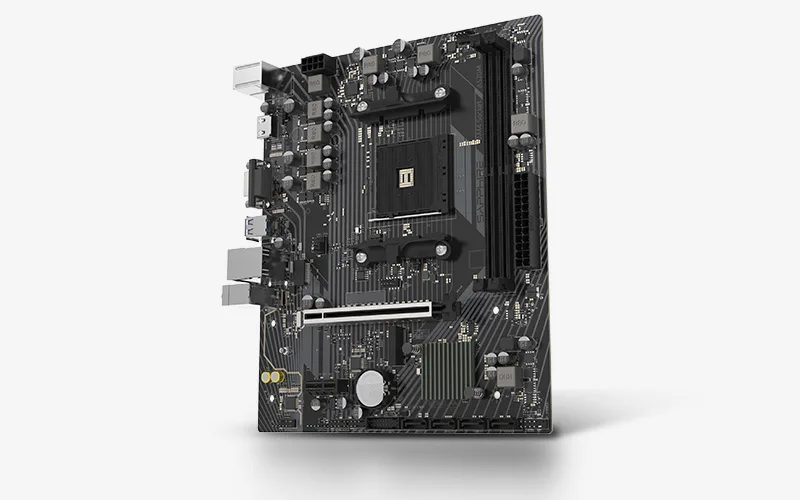

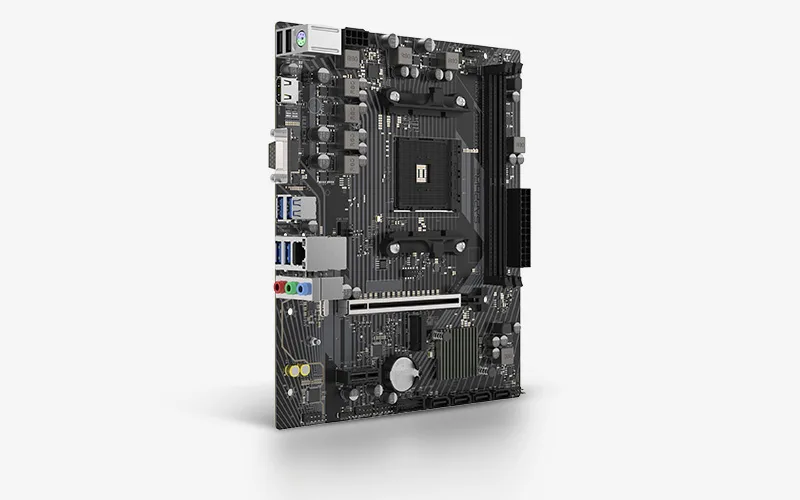

The Sapphire A520M-E is a compact Micro-ATX motherboard built for the AMD Socket AM4 platform, ready to drive Ryzen 5000, 4000 and 3000 Series desktop processors. It makes an ideal base for an affordable gaming rig, a home or office PC, or a first custom build.
A 4+2+1 phase CPU power design rated at 50A per phase supplies clean, consistent current to your Ryzen chip through everyday computing and gaming sessions, backed by titanium inductors for reliable operation.
Install your boot drive on the onboard PCIe 3.0 M.2 slot for quick load times, add up to four SATA drives for mass storage, and seat your graphics card in the PCIe 3.0 x16 slot. Dual DIMM slots accept up to 64GB of dual channel DDR4 memory.

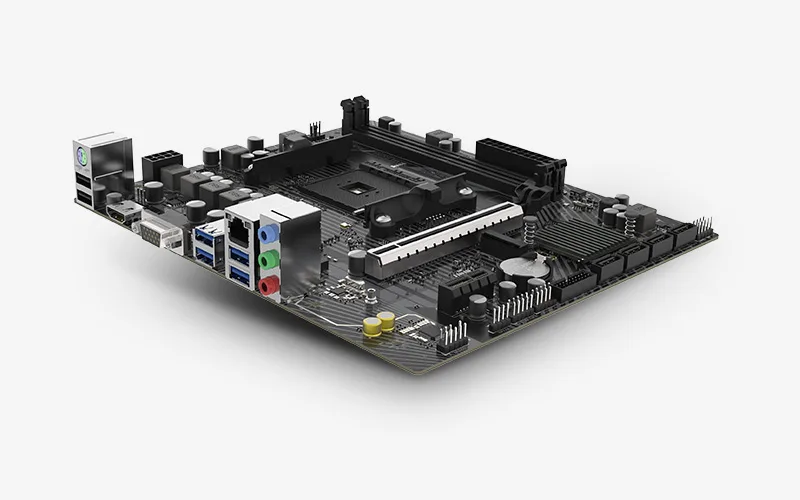

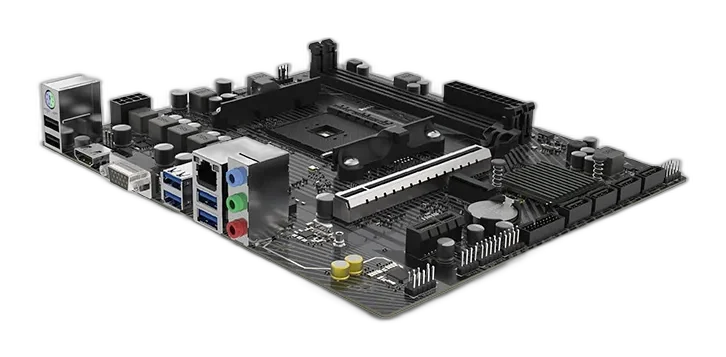

The rear panel covers HDMI and VGA (D-Sub) outputs for integrated graphics, a Gigabit LAN port, a generous set of USB 3.2 Gen1 and USB 2.0 Type-A ports, plus Realtek ALC897 5.1 channel HD audio for clear sound.
| Specification | Detail |
|---|---|
| Chipset | AMD A520 |
| CPU Socket | AMD AM4 (Ryzen 5000 / 4000 / 3000 Series) |
| Form Factor | Micro-ATX (230 x 197 mm) |
| Memory | 2x DDR4 DIMM, dual channel, up to 64GB (2x 32GB) |
| PCIe Slots | 1x PCIe 3.0 x16, 1x PCIe 3.0 x1 |
| Storage | 1x M.2 (PCIe 3.0), 4x SATA III |
| LAN | Realtek RTL8111M Gigabit Ethernet |
| Audio | Realtek ALC897 HD Audio (5.1 channel) |
| Display Outputs | HDMI, VGA (D-Sub) |
| Rear USB | 4x USB 3.2 Gen1 Type-A, 2x USB 2.0 |
| VRM | 4+2+1 phase CPU power, 50A per phase |
