Hover to zoom · click for full imagePremium AMD B850 AM5 Micro-ATX motherboard with 12+2+1 VRM, DDR5 up to 8000 MHz, PCIe 5.0, dual M.2, WiFi 6 and 2.5G LAN.

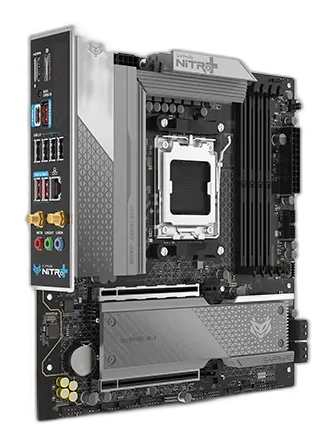

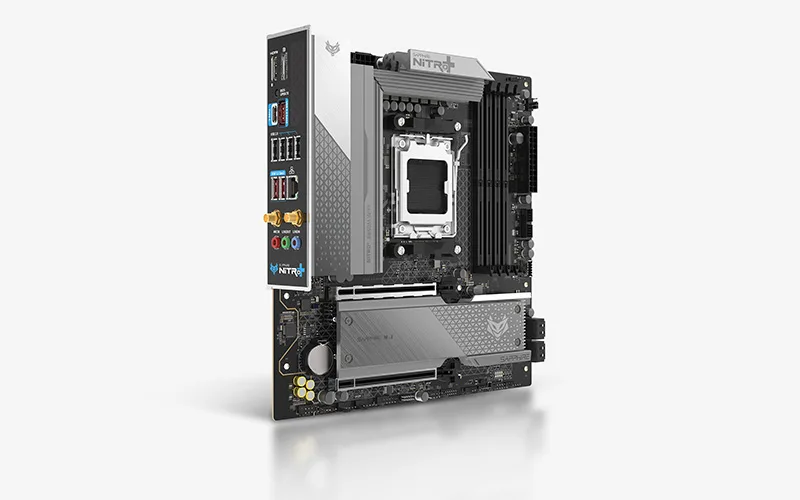

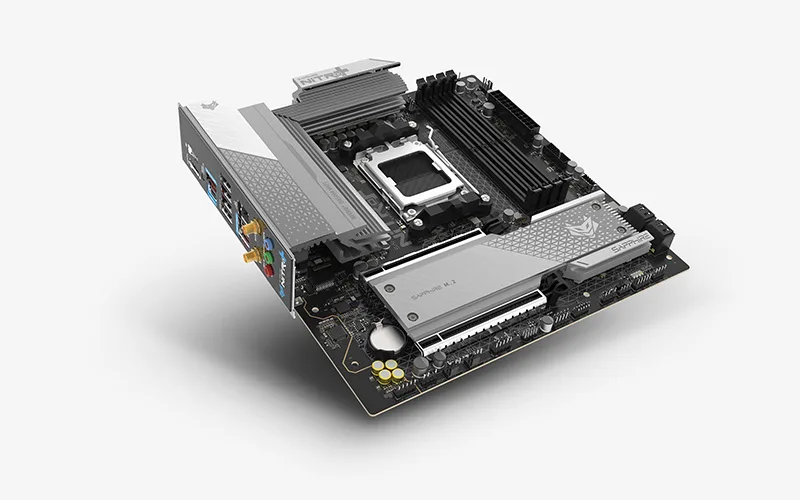

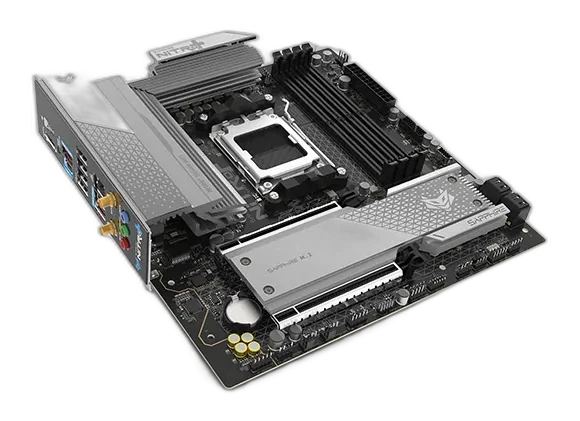

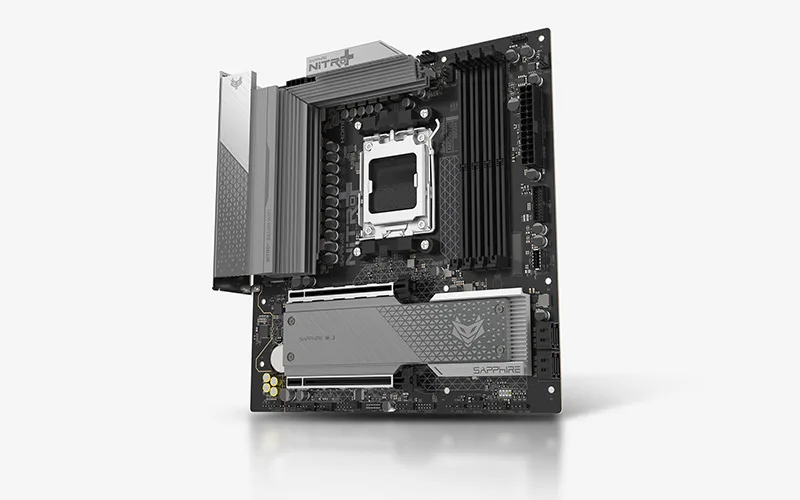

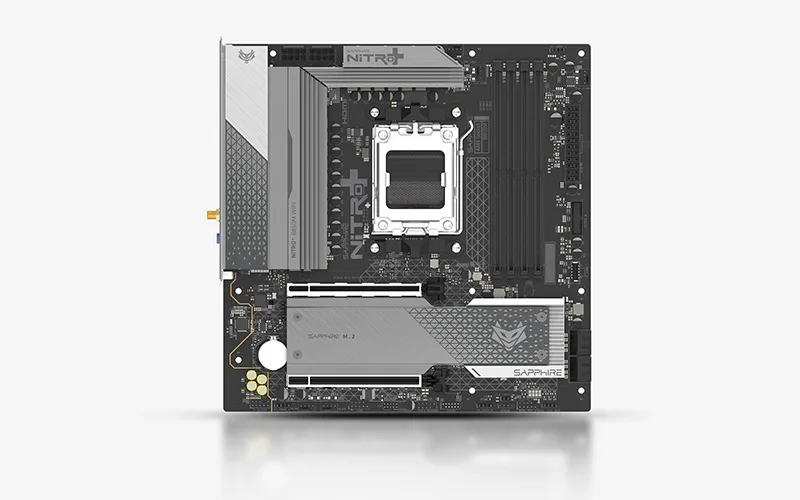

The NITRO+ B850M WIFI is Sapphire's premium AMD B850 Micro-ATX motherboard for Socket AM5, aimed at enthusiasts who want flagship features in a compact board. It supports Ryzen 9000, 8000 and 7000 Series processors and leads with a PCIe 5.0 x16 slot and a stronger power stage than the Pulse.

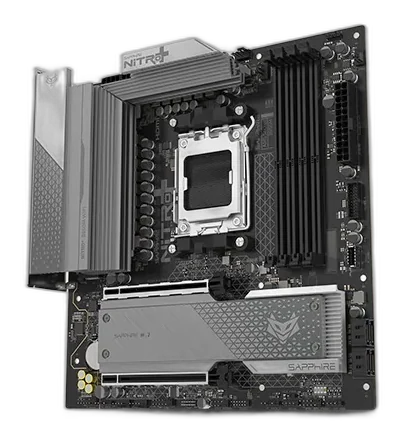

A 12+2+1 phase CPU power design rated at 55A per phase, fed by dual 8-pin connectors, provides serious headroom for overclocking and high core-count Ryzen processors. Robust VRM, M.2 and chipset cooling keeps the board stable under sustained load, and a Debug LED helps diagnose boot issues quickly.
Four DIMM slots run dual-channel DDR5 up to 256GB (4x 64GB) at overclocked speeds up to 8000 MHz, with AMD EXPO and Intel XMP support. A PCIe 5.0 x16 slot delivers full next-generation graphics bandwidth, with a secondary PCIe 4.0 x16 slot (x4 electrical) for expansion.
Two M.2 sockets include a PCIe 5.0 x4 slot for the fastest Gen5 SSDs plus a PCIe 4.0 x4 slot, with four SATA 6Gb/s ports for extra drives.

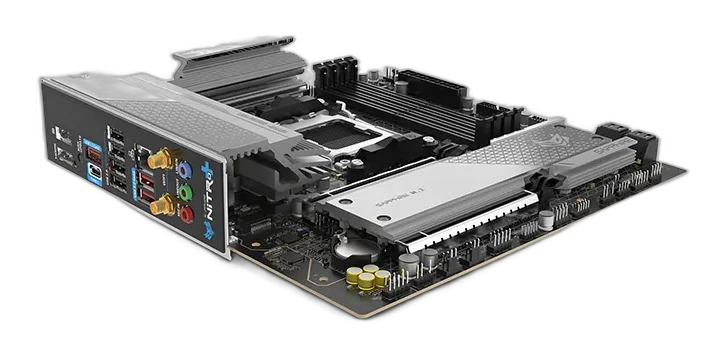

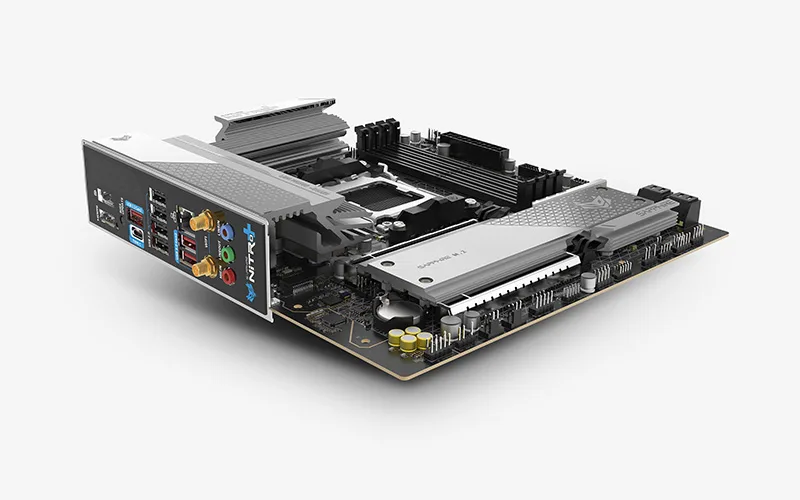

WiFi 6 (802.11ax) and Bluetooth 5.3 are built in, and a Realtek RTL8125BG 2.5 Gigabit Ethernet port handles wired networking. Rear I/O is generous with three USB 3.2 Gen2 Type-A ports, one USB 3.2 Gen2 Type-C port and four USB 2.0 ports, plus HDMI and DisplayPort outputs and Realtek ALC897 5.1-channel HD audio.
| Specification | Detail |
|---|---|
| Brand | Sapphire |
| Model | NITRO+ B850M WIFI |
| Part Number | 52123-01-40G |
| Chipset | AMD B850 |
| CPU Socket | AMD AM5 |
| CPU Support | Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | Micro-ATX (244 x 244 mm) |
| Memory | 4 x DIMM, Dual Channel DDR5, up to 256GB (4x 64GB) |
| Memory Speed | Up to 8000 MHz (OC), EXPO / XMP |
| VRM | 12+2+1 phase CPU power, 55A per phase, dual 8-pin |
| PCIe x16 | 1 x PCIe 5.0 x16 |
| Secondary PCIe | 1 x PCIe 4.0 x16 (x4 bandwidth) |
| M.2 Slots | 2 (1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4) |
| SATA | 4 x SATA 6Gb/s |
| Rear USB | 3 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 4 x USB 2.0 |
| LAN | Realtek RTL8125BG 2.5 Gigabit Ethernet |
| Wireless | WiFi 6 (802.11ax), Bluetooth 5.3 |
| Audio | Realtek ALC897 HD Audio, 5.1 Channel |
| Display Outputs | 1 x HDMI, 1 x DisplayPort |
| Extras | Debug LED, VRM / M.2 / PCH heatsinks |
