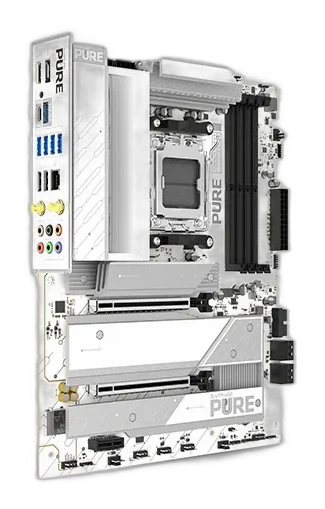

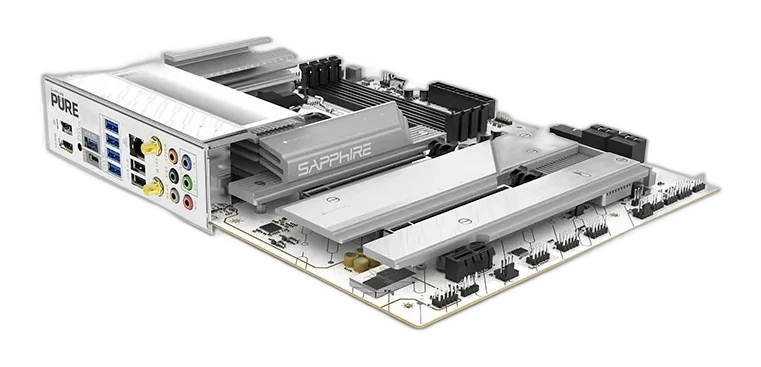

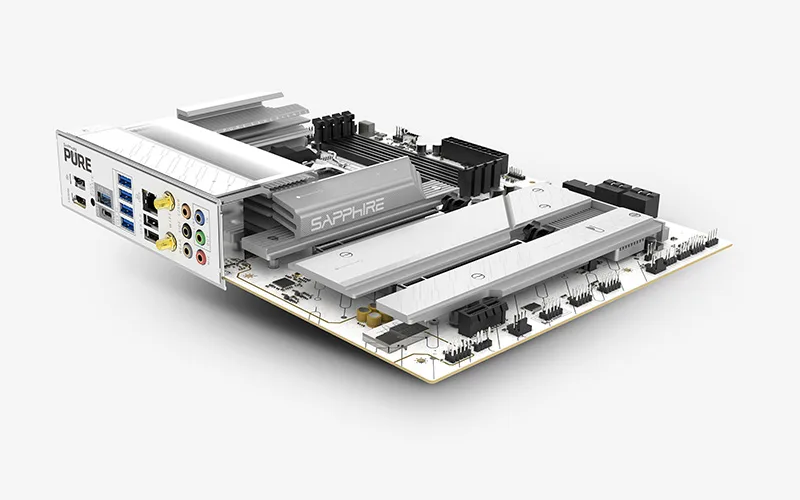

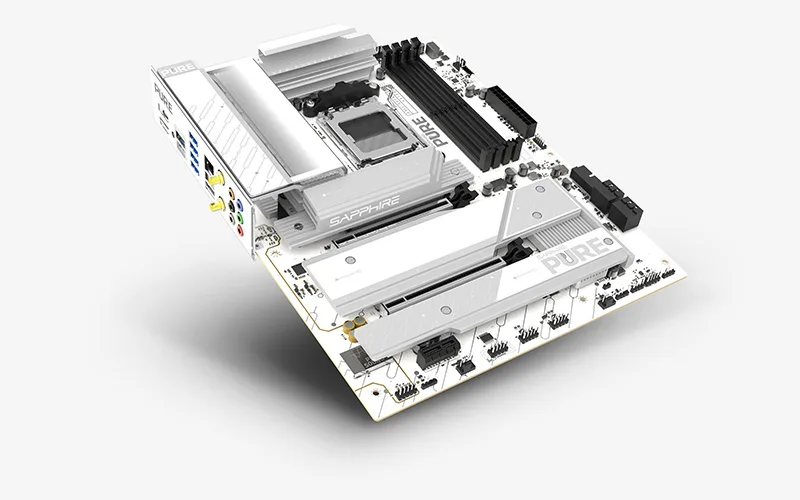

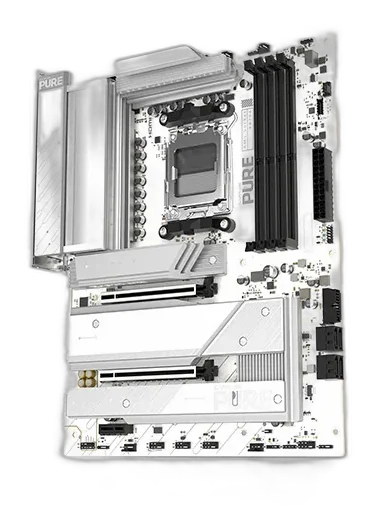

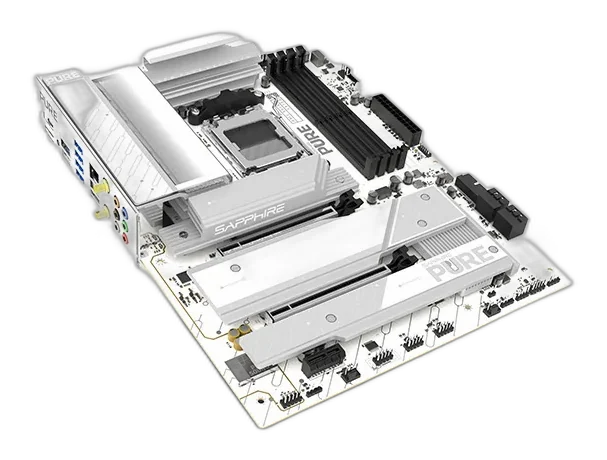

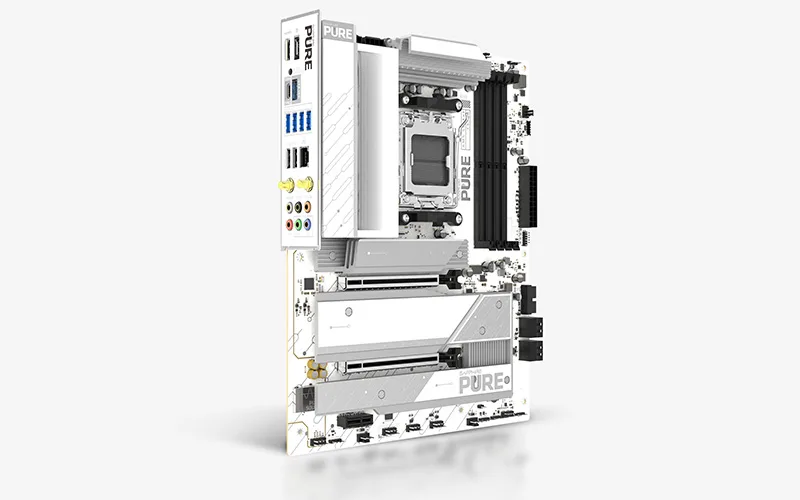

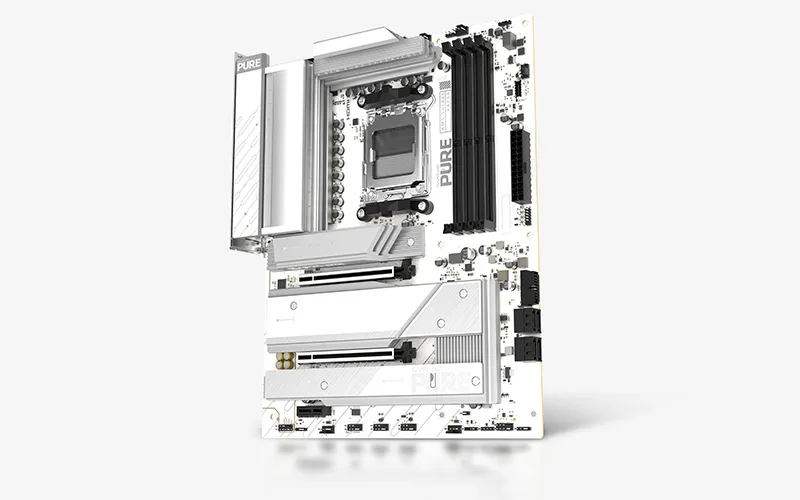

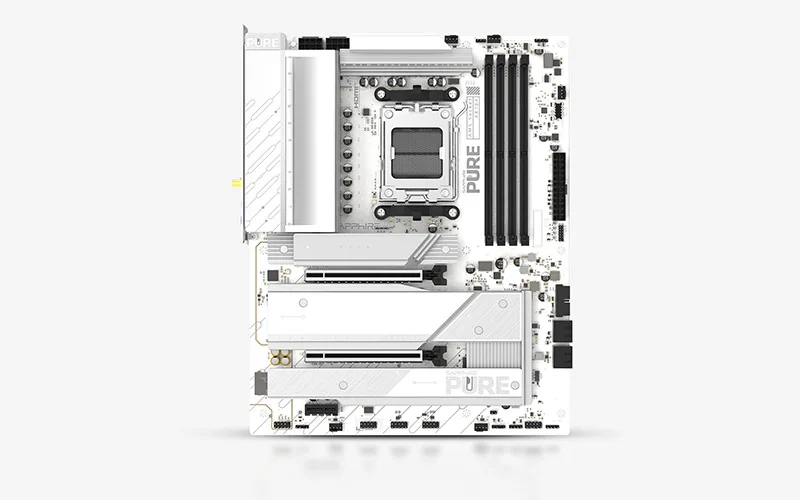

Hover to zoom · click for full imageThe Pure X870A WiFi 7 is Sapphire's all-white AM5 ATX board with USB4, PCIe 5.0, a 16+2+1 power stage, triple M.2, 5GbE LAN and WiFi 7.
The Pure X870A WiFi 7 is Sapphire's first AMD X870 motherboard and arrives in a striking all-white design. Built for Socket AM5 and Ryzen 9000, 8000 and 7000 series processors, it runs a strong 16+2+1 phase power delivery at 55A per phase with dual EPS feeds and full heatsink coverage for the VRM, M.2 slots and chipset.
The X870 platform adds a USB4 Type-C port with 40Gbps bandwidth, DisplayPort Alt Mode and 15W Power Delivery. A PCIe 5.0 x16 slot and a PCIe 5.0 M.2 socket cover high-end graphics and storage, joined by two more PCIe 4.0 M.2 sockets and four SATA ports.
Four DDR5 DIMM slots take up to 256GB of dual-channel memory at up to 8400 MHz (OC). Wired networking steps up to 5 Gigabit Ethernet, alongside WiFi 7 and Bluetooth 5.4. Debug LEDs, a one-click BIOS Flash button and the Sapphire Core BIOS round out a clean white ATX build.
| Specification | Detail |
|---|---|
| Chipset | AMD X870 |
| Socket | AMD AM5 |
| CPU Support | Ryzen 9000 / 8000 / 7000 Series |
| Form Factor | ATX (305 x 245 mm) |
| Colour | White |
| Memory | 4x DDR5 DIMM, Dual Channel, up to 256GB |
| Memory Speed | Up to 8400 MHz (OC) |
| VRM | 16+2+1 Phase, 55A Per Phase, Dual 8-pin EPS |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x1 |
| M.2 Slots | 1x PCIe 5.0, 2x PCIe 4.0 |
| SATA | 4x SATA 6Gb/s |
| LAN | Realtek RTL8126 5 Gigabit Ethernet |
| Wireless | WiFi 7, Bluetooth 5.4 |
| Audio | Realtek ALC897 HD Audio, 7.1 Channel |
| Rear USB | 1x USB4 Type-C (40Gbps), 1x USB 3.2 Gen2 Type-A, 4x USB 3.2 Gen1 Type-A, 2x USB 2.0 |
| Display Out | 1x HDMI, 1x DisplayPort |
| Features | Debug LEDs, One-click BIOS Flash, SAPPHIRE CORE BIOS |
| Part Number | 52122-02-40G |
